Product introduction:

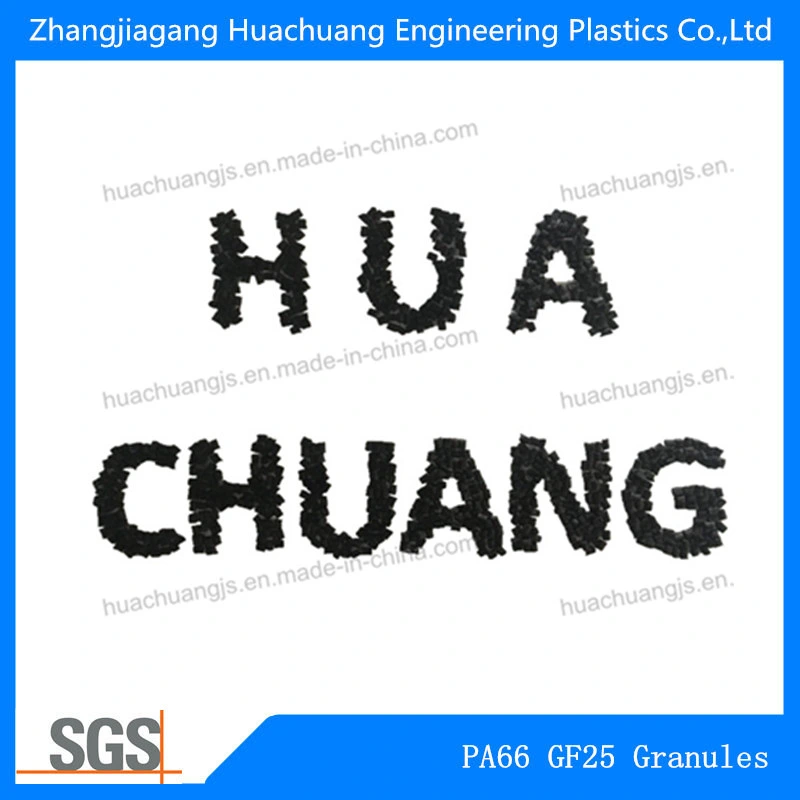

-nylon/pa66 granules reinforced by fiberglass.The performance of final products of this raw material were in line with the national standard.
-the product is based on pa66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.
Advantage:
High mechanical strength
High toughness
High softening point
Good wear resistance
Self-lubrication
Long-term work at higher temperatures
It has high cti value, excellent electrical insulation, low smoke and low toxicity characteristics.
Details of related standard:
Gb/t 23615.1-2009 accessorial material for architectural aluminum alloy profiles -- part 1:Thermal barrier strip of polyamide
En 14024-2004 metal profiles with thermal barrier -- mechanical performance requirement, proof and tests for assessment
Ys/t 437-2008 aluminium profiles moment of inertia calculation methods and computing software requirements
Jg/t 174-2005 thermal barrier strips for construction industry
Gb 5237.6 -2012 wrought aluminium alloy extruded profiles for architecture -- part 6:Thermal barrier profiles
Gb/t 8478-2008 aluminium windows and doors
Gb/t 8484-2008 graduation and test for thermal insulating properties of doors and windows
Jg 175-2011 insulating aluminum alloy profiles with thermal barrier for buildings
Huachuang pa66 granules performance table
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºc and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to i-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & delivery:
Packaging details:25kg/bag
Delivery details:Shipped in 7-15 working days after receiving the deposit
Our Factory:
Please feel free to contact us if you have any questions.
Name:Camille
Phone:0086-13584481777
Address:Jinfeng Town, Zhangjiagang City, Jiangsu Province, China
-nylon/pa66 granules reinforced by fiberglass.The performance of final products of this raw material were in line with the national standard.
-the product is based on pa66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.
Advantage:
High mechanical strength
High toughness
High softening point
Good wear resistance
Self-lubrication
Long-term work at higher temperatures
It has high cti value, excellent electrical insulation, low smoke and low toxicity characteristics.
Details of related standard:
Gb/t 23615.1-2009 accessorial material for architectural aluminum alloy profiles -- part 1:Thermal barrier strip of polyamide
En 14024-2004 metal profiles with thermal barrier -- mechanical performance requirement, proof and tests for assessment
Ys/t 437-2008 aluminium profiles moment of inertia calculation methods and computing software requirements
Jg/t 174-2005 thermal barrier strips for construction industry
Gb 5237.6 -2012 wrought aluminium alloy extruded profiles for architecture -- part 6:Thermal barrier profiles
Gb/t 8478-2008 aluminium windows and doors
Gb/t 8484-2008 graduation and test for thermal insulating properties of doors and windows
Jg 175-2011 insulating aluminum alloy profiles with thermal barrier for buildings
Huachuang pa66 granules performance table
| No. | Item | Unit | Gb/t 23615.1-2009 | Hc-technical specification |
| Material properties | ||||
| 1 | Density | G/cm3 | 1.3±0.05 | 1.28-1.35 |
| 2 | Linear expansion coefficient | K-1 | (2.3-3.5)×10-5 | (2.3-3.5)×10-5 |
| 3 | Vicat softening temperature | ºc | ≥230ºc | ≥233ºc |
| 4 | Melting point | ºc | ≥240 | ≥240 |
| 5 | Testing for tensile cracks | - | No cracks | No cracks |
| 6 | Shore hardness | - | 80±5 | 80-85 |
| 7 | Impact strength(unnotched) | Kj/m2 | ≥35 | ≥38 |
| 8 | Tensile strength(longitudinal) | Mpa | ≥80a | ≥82a |
| 9 | Elasticity modulus | Mpa | ≥4500 | ≥4550 |
| 10 | Elongation at break | % | ≥2.5 | ≥2.6 |
| 11 | Tensile strength(transverse) | Mpa | ≥70a | ≥70a |
| 12 | High temperature tensile strength(transverse) | Mpa | ≥45a | ≥47a |
| 13 | Low temperature tensile strength(transverse) | Mpa | ≥80a | ≥81a |
| 14 | Water resistance tensile strength(transverse) | Mpa | ≥35a | ≥35a |
| 15 | Aging resistance tensile strength(transverse) | Mpa | ≥50a | ≥50a |
2.Norm laboratory condition:(23±2)ºc and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to i-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.
About color:
The color of our products is black, but we also can customize according to customers' requirements.
Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.
Packaging & delivery:
Packaging details:25kg/bag
Delivery details:Shipped in 7-15 working days after receiving the deposit
