Polyamide 66 GF25 Granules for Engineering Plastics

Product Introduction:-Nylon/PA66 granules reinforced by fiberglass. The performance of final products of this raw material were in line with the national standard.-The product is based on PA66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending. Advantag

Featured Products

Product Introduction:

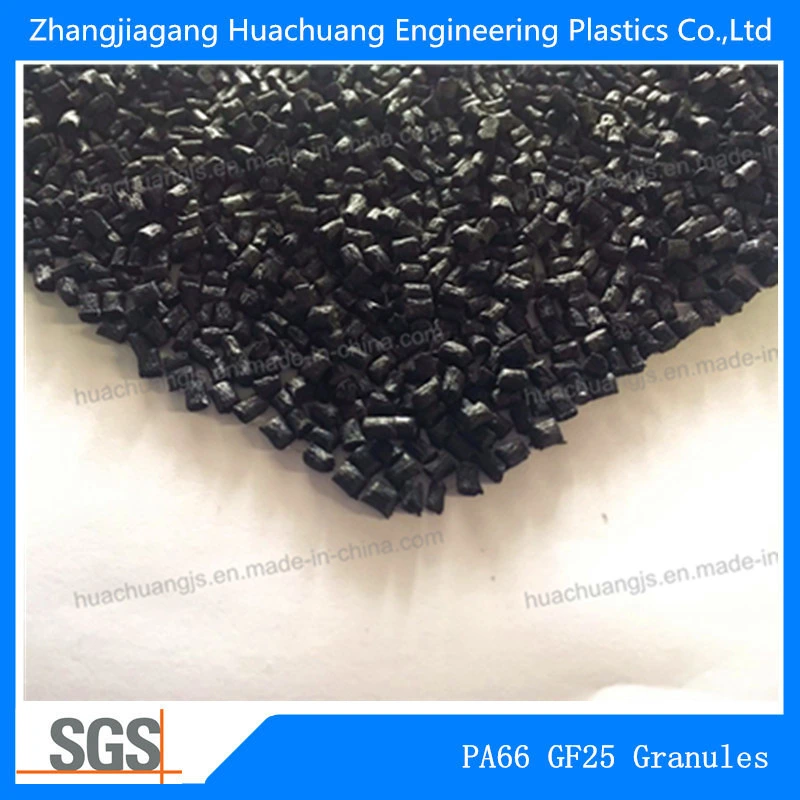

-Nylon/PA66 granules reinforced by fiberglass. The performance of final products of this raw material were in line with the national standard.
-The product is based on PA66 resin as basic, add glass fiber, efficient flame retardants and various additives, formed by twin-screw extrusion blending.
 Polyamide66 GF25 Granules for Engineering Plastics

Advantage:
  1. high mechanical strength
  2. high toughness
  3. high softening point
  4. good wear resistance
  5. self-lubrication
  6. long-term work at higher temperatures
  7. It has high CTI value , excellent electrical insulation , low smoke and low toxicity characteristics.
Polyamide66 GF25 Granules for Engineering Plastics

Details of related standard:
  • GB/T 23615.1-2009 Accessorial material for architectural aluminum alloy profiles -- Part 1: Thermal barrier strip of polyamide
  • EN 14024-2004 Metal profiles with thermal barrier -- Mechanical performance Requirement, proof and tests for assessment
  • YS/T 437-2008 Aluminium profiles moment of inertia calculation methods and computing software requirements
  • JG/T 174-2005 Thermal barrier strips for construction industry
  • GB 5237.6 -2012 Wrought aluminium alloy extruded profiles for architecture -- Part 6: Thermal barrier profiles
  • GB/T 8478-2008 Aluminium windows and doors
  • GB/T 8484-2008 Graduation and test for thermal insulating properties of doors and windows
  • JG 175-2011 Insulating aluminum alloy profiles with thermal barrier for buildings

Huachuang PA66 Granules Performance Table
NO.  ItemUnitGB/T 23615.1-2009HC-Technical specification
 Material Properties
1Densityg/cm31.3±0.051.28-1.35
2Linear expansion coefficientK-1(2.3-3.5)×10-5(2.3-3.5)×10-5
3Vicat softening temperatureºC230ºC233ºC
4Melting pointºC240240
5Testing for tensile cracks-No cracksNo cracks
6Shore hardness-80±580-85
7Impact strength(Unnotched)KJ/m23538
8Tensile strength(longitudinal)MPa80a82a
9Elasticity modulusMPa45004550
10Elongation at break%2.52.6
11Tensile strength(transverse)MPa70a70a
12High temperature tensile strength(transverse)MPa45a47a
13Low temperature tensile strength(transverse)MPa80a81a
14Water resistance tensile strength(transverse)MPa35a35a
15Aging resistance tensile strength(transverse)MPa50a50a
1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

 Polyamide66 GF25 Granules for Engineering Plastics

About color:
The color of our products is black, but we also can customize according to customers' requirements.


Application:
Widely used in machinery, instrumentation, automotive parts, electrical and electronics, railways, household appliances, telecommunications, textile, sports and leisure goods, pipes and precision engineering products.


Packaging & Delivery:
Packaging details:25kg/bag
Delivery details: shipped in 7-15 working days after receiving the deposit
Polyamide66 GF25 Granules for Engineering Plastics
