Twisting Nylon Sucker Rod Centralizer / Oilfield Sucker Rod Guide

Quick DetailsCondition:NewWarranty:1.5 yearsApplicable Industries:Energy & MiningLocal Service Location:NoneShowroom Location:NonePlace of Origin:Shandong, ChinaType:Sucker RodMachine Type:Drilling EquipmentCertification:APIMaterial:nylonProcessing Type:nylonUse:Well DrillingName:Sucker rod centralizerlength:120mmsize:7

Featured Products

Quick Details
Condition:New
Warranty:1.5 years
Applicable Industries:Energy & Mining
Local Service Location:None
Showroom Location:None
Place of Origin:Shandong, China
Type:Sucker Rod
Machine Type:Drilling Equipment
Certification:API
Material:nylon
Processing Type:nylon
Use:Well Drilling
Name:Sucker rod centralizer
length:120mm
size:7/8""
suitable tubing:2-7/8
tempreture:120ºC
Colour:black
Usage:Oilwell
Diameter:58Mm
Supply Ability
Supply Ability:3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:as per client's requirement
Port:Qingdao
Lead Time :

Quantity(Pieces)1 - 500>500
Est. Time(days)15To be negotiated




Product Description

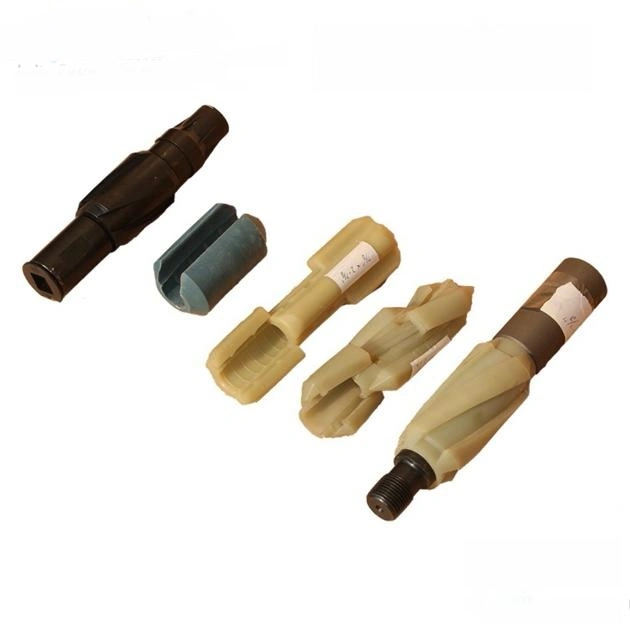

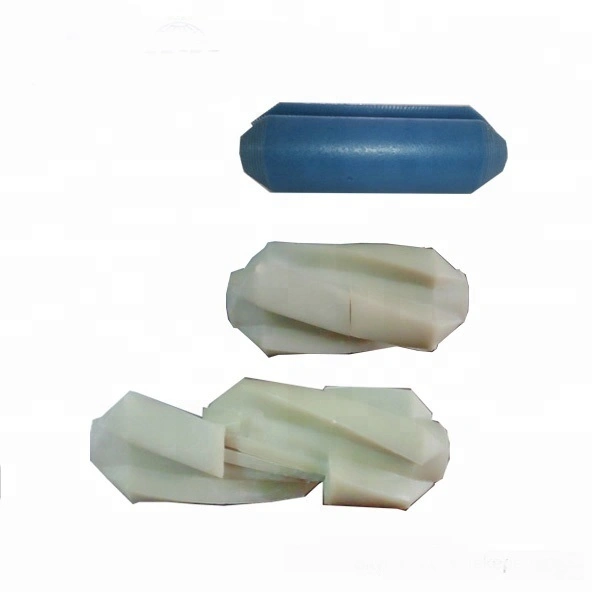

Sucker rod centralizer
Snap-on Sucker rod centralizer is used in pumping well, it's a tool which can set upright the sucker rod, and protect the sucker rod wiping with tubing pipe.

Application:
Rod up and down inside the tubing activity, due to the elastic deformation of sucker rod, rod and oil tube wall is easy to produce friction, sucker rod break off easily, sucker rod centralizer has strong flexibility, it contact with the pipe wall, can reduce the friction of rod and tube, enhance the production life of pumping unit

Structure:
Snap-on Sucker rod centralizer is composed of collar, centering sleeve and nipple.

Working theory:
It connects with sucker rod, the centralizer casing OD is larger than the sucker rod coupling OD in order to centralizer rod. Centralizer casing has high strength wear resistant, so when contact with oil tube, makes the centralizer body wearing and reduces oil tube wearing so as to anti-wear (centralizer casing temperature resistant: 260°C, material: self-lubricating Ni-p plating material). The steel surface adopt Ni-p plating (the anti-corrosion technology) makes the centralizer has the ability of anti-wear and anti-corrosion. And it also suitable for the worse corrosion well condition.

Specification:

NO

Part No.

NAME

QTY

Material

1

01

Wheel

4

Glass-fiber Reinforced Nylon 6

2

02

Roll pin

4

Stainless steel

3

03

Coupling body

1

35CrMo



Twist on Nylon Sucker Rod Centralizer/Sucker Rod Guide for Oilfield
Twist on Nylon Sucker Rod Centralizer/Sucker Rod Guide for Oilfield
