DIMENSION
| DN | D | d | D1 | D2 | T | * | n | |||
| 25 | 130 | 41 | 80 | 90 | 16 | 16 | 4 | |||
| 32 | 144 | 49 | 89 | 100 | 18 | 19 | 4 | |||
| 40 | 154 | 62 | 99 | 110 | 18 | 19 | 4 | |||
| 50 | 168 | 76 | 120 | 124 | 19 | 19 | 4 | |||
| 65 | 190 | 89 | 140 | 144 | 19 | 19 | 4 | |||
| 80 | 205 | 106 | 152 | 159 | 21 | 19 | 4 | |||
| 100 | 236 | 127 | 181 | 190 | 21 | 19 | 8 | |||
| 125 | 265 | 140 | 214 | 216 | 26 | 22 | 8 | |||
| 150 | 290 | 178 | 240 | 240 | 26 | 23 | 8 | |||
| 200 | 346 | 246 | 295 | 297 | 31 | 23 | 8 | |||
DESCRIPTION
| Size | DN15-DN500 | |
| Pressure rating | PN10 | |
| Material | UPVC, CPVC, FRPP, PPH, PVDF | |
INTRODUCTION

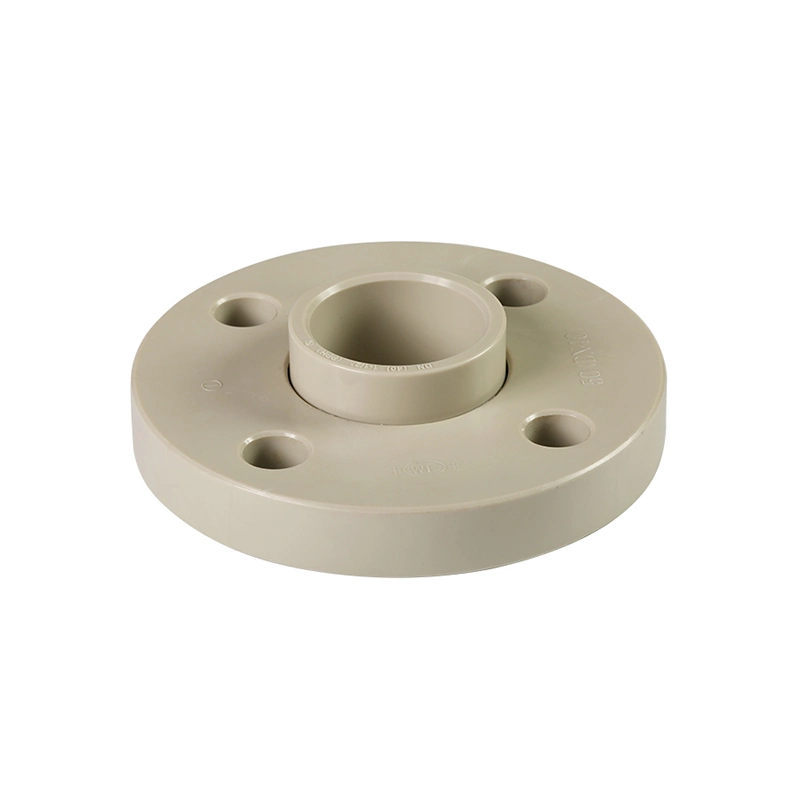

Flange connection is an important connection method for pipeline construction.
The flange connection is easy to use and can withstand large pressures.
In industrial piping, the use of flanged connections is extensive.
Application
Other Hot Products
Packing:
FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 5cartons.
2. What is your delievery time?
Our delievery is about 15-20days.
3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually, we offer the free samples, customers bear the freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products.
Finally, After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.
