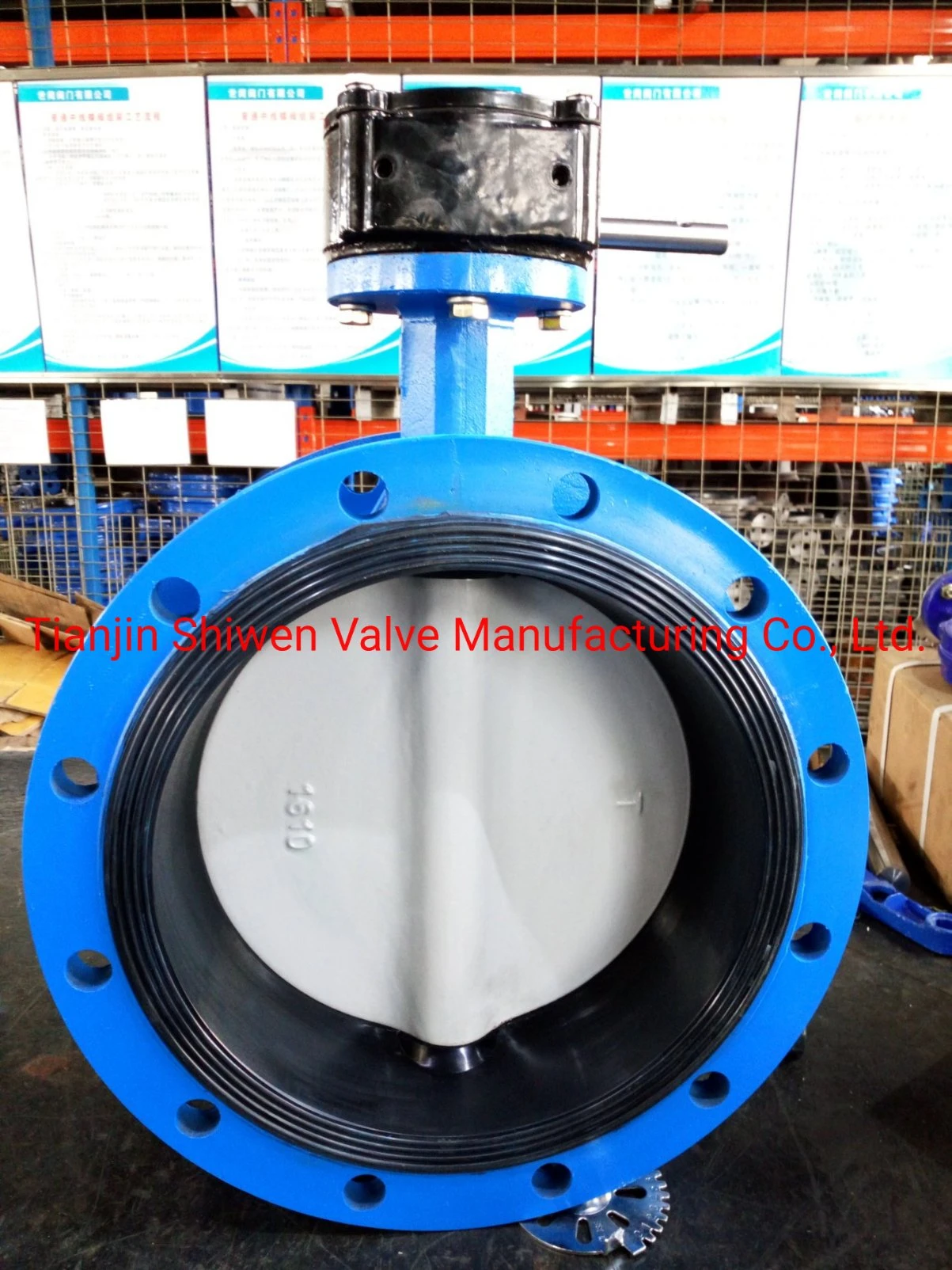

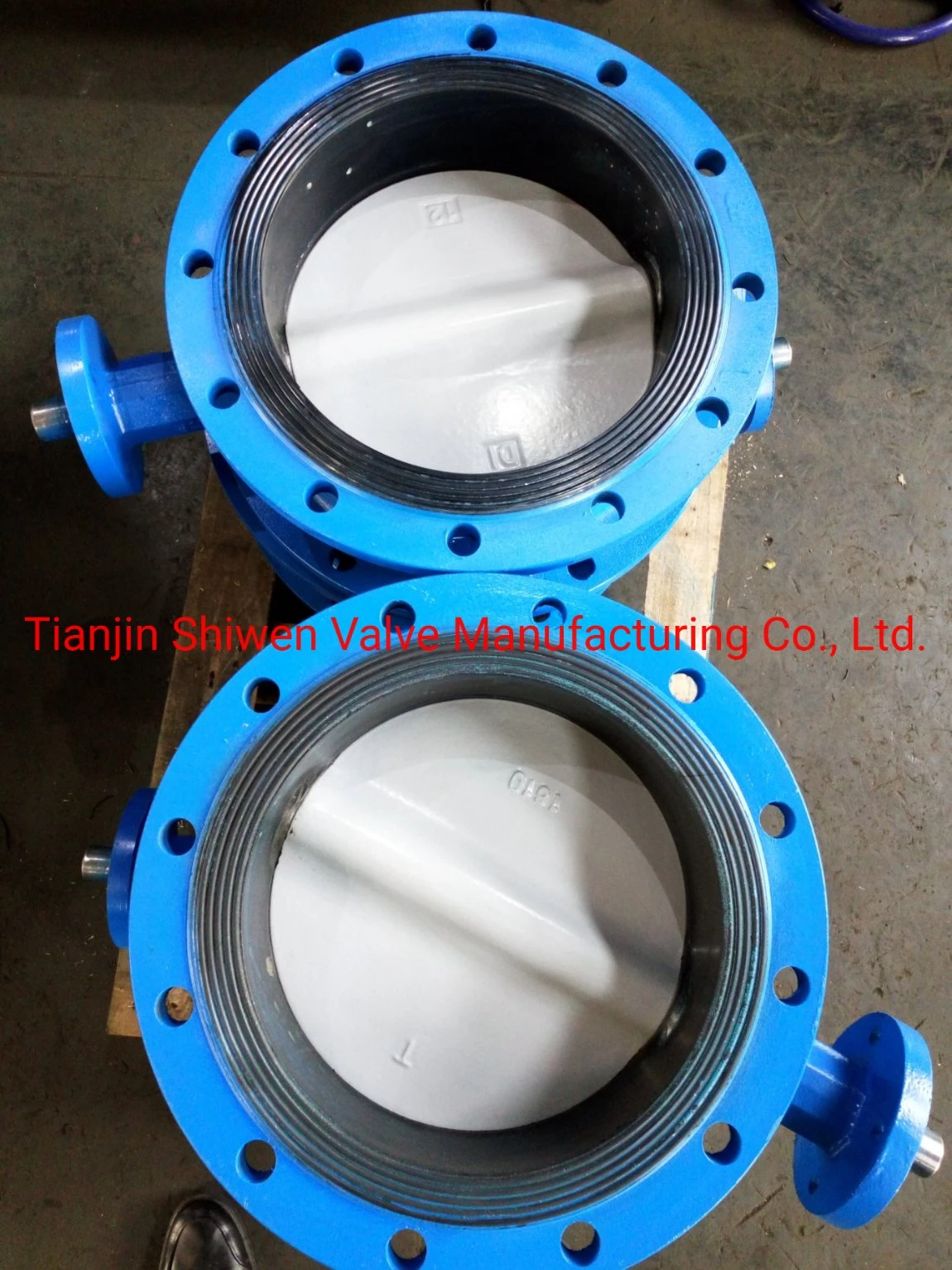

Flanged Butterfly Valve with Nylon Coated Disc

Detailed Description:Series:Butterfly valve with nylon paintingSize: DN40-DN1200End flange:ANSI B 16.1, EN 1092, AS 2129Face to face:ANSI B 16.10Top flange:ISO 5211Normal pressure:DN40-DN600 PN1.0/1.6MPa(150/200PSI) DN700-DN1200 PN1.0MPa(150PSI)Body:CI/DI/WCB/ALB/CF8/CF8MDisc:DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Haste

Featured Products

Flange Butterfly Valve with Nylon Coating Disc
Flange Butterfly Valve with Nylon Coating Disc
Flange Butterfly Valve with Nylon Coating Disc


Detailed Description:
Series:Butterfly valve with nylon painting
Size: DN40-DN1200
End flange:ANSI B 16.1, EN 1092, AS 2129
Face to face:ANSI B 16.10
Top flange:ISO 5211
Normal pressure:DN40-DN600 PN1.0/1.6MPa(150/200PSI) DN700-DN1200 PN1.0MPa(150PSI)
Body:CI/DI/WCB/ALB/CF8/CF8M
Disc:DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel
Stem:416/304/431/17-4pH
Seat:NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM/PTFE
Suitable temperature:-45~150
Medium:Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Founded in 1996 and located in Tianjin china, Our company is a professional butterfly valve manufacturing factory. we specialize in making kinds of butterfly valves, Gate valves, check valves and Y filters and Ball valves. Our factory covers 16,000 squre meters, has more than 110 sets of digital controlled large and middle scale equipment, and 20 sets of special valve testing equipment. Our company has passed the UAKS and ISO9001 system certification, the products have got the CCC certificate.

Our products have been widely used in many industries, including offshore oil, chemical, ship making, power plant, mining, water processing, drainage etc.  Our foreign clients comes from southeast asia, middle east, Europe and many other parts of the world.

we would always offer you our best products at very competitive prices.
