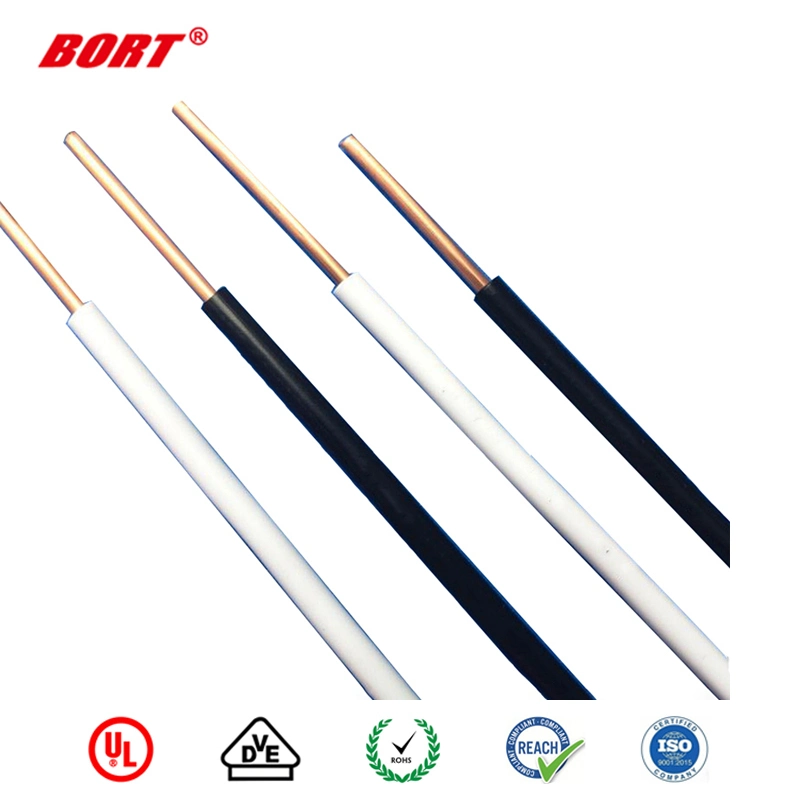

UL1032 single core wire 1000V automation equipment connection line electrical internal power cord
★ Rated temperature: 90ºC
★ Rated voltage: 1000V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210
★ Tinned or bare, stranded or solid copper conductor,30 AWG~2000MCM
★ Lead free PVC jacket
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment
Our products Application Areas:
Product standard
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 6 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
★ Rated temperature: 90ºC
★ Rated voltage: 1000V
★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210
★ Tinned or bare, stranded or solid copper conductor,30 AWG~2000MCM
★ Lead free PVC jacket
★ Uniform insulation thickness to ensure easy stripping and cutting
★ Passes UL VW-1 & CSA FT1 vertical flame test
★ Application: For internal wiring of electronic and electrical equipment
Our products Application Areas:
Product standard
| Conductor | Insulation | Maximum Resistance at 20ºC Ω/km | |||
| AWG | No./mm | Dia. mm | Nom. Thick. mm | Nom.Dia. mm | |
| 26 | 7/0.16 | 0.48 | 0.80 | 2.08 | 139 |
| 24 | 11/0.16 | 0.61 | 0.80 | 2.20 | 88.9 |
| 22 | 17/0.16 | 0.76 | 0.80 | 2.36 | 57.5 |
| 20 | 26/0.16 | 0.94 | 0.80 | 2.54 | 34.6 |
| 18 | 41/0.16 | 1.18 | 0.80 | 2.78 | 23.3 |
| 16 | 26/0.254 | 1.49 | 0.80 | 3.10 | 15.1 |
| 14 | 41/0.254 | 1.87 | 0.90 | 3.70 | 9.2 |
| 12 | 65/0.254 | 2.36 | 1.02 | 4.40 | 5.4 |
| 10 | 65/0.32 | 2.97 | 1.02 | 5.00 | 4.1 |
| 8 | 7/37/0.20 | 4.20 | 1.20 | 6.60 | 2.23 |
| 6 | 19/7/0.36 | 5.40 | 1.60 | 8.60 | 1.4 |
| 4 | 7/18/0.46 | 6.72 | 1.60 | 9.90 | 0.882 |
Our products can meet UL, VDE, CCC, PSE certificate requirement and the products are accord with ROHS and REACH Halogen free standard.
Our factory could meet ISO9001:2008 management systems standard. There are 6 production lines in high quality, precise, automation which supporting daily capacity 300,000km cables at least.
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.
Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.
Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.
Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service
Why choose us
1. Production
Qualified production, competitive price, professional service.
2. Technology
Professional R& D team
3. Equipment
With completive testing equipment.
4. Quality
UL/ CE/ FCC/ RoHS/ Reach certificate
