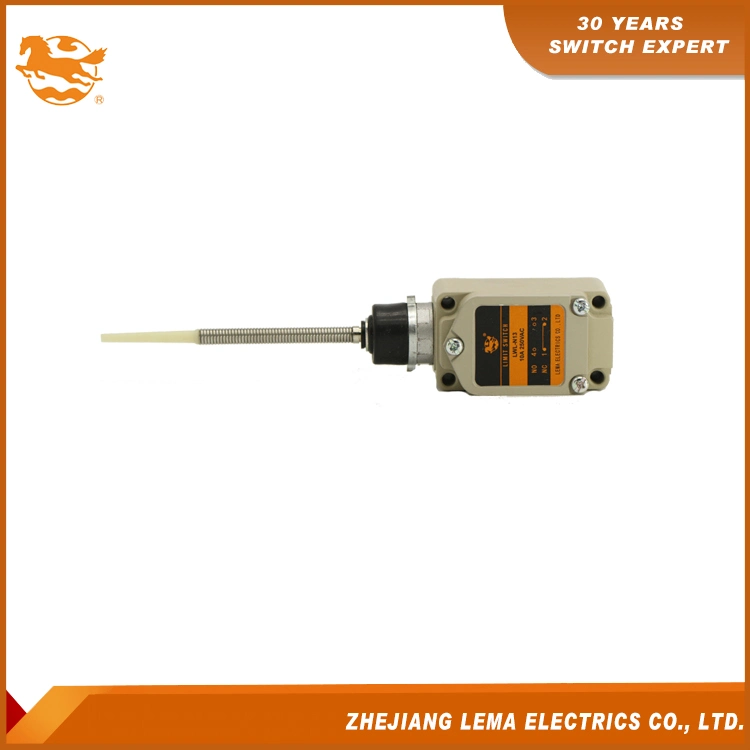

Lema LWL-N13 Coil Spring-Plastic Rod 10A 250 Limit Switch
Lema Lwl-N13 Coil Spring-Plastic Rod 10A 250 Limit Switch
Operating speed0.1-100cm/s
Operating frequencyMechanical:120 times/min
Electrical:30 times/min
Initial insulation resistance100MΩmin.(at 500VDC)
Initial contact resistance25MΩmax.
Dielectric
strength
Between non-consecutive
terminals
1,000Vrms, 50/60Hz for 1 min
Between non-current carrying
metal parts and each terminal
2,200Vrms, 50/60Hz for 1 min
Between ground and each
terminal
2,200Vrms, 50/60Hz for 1 min
Vibration resistance10-55Hz,1.5mm double amplitude
Shock resistanceMechanical durable:1000m/s2{100G,S}max.
Malfunction: 300m/s2{30G,S}max.
Operating
life
Mechanical life2,000,000 operations min.
Electrical life100,000 operations min.
