UHMW-PE(Ultra high Molecular Weight Polyethylene)is a thermoplastic engineering plastic with the average molecular weight more than 9.2 million (100% Virgin UHMW-PE Raw Material). This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a "surprised" engineering plastic of excellent comprehensive capacity and competitive price. Guangzhou Engineering Plastics Industries (Group) Company has studied and applied this material in many industries for many years. And we know that it has the following main characteristics:
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196ºC), it still has the prolongation.
few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE material that made by Guangzhou Engineering Plastics Industries (Group) Company, which meets the Food and Drug Administration (FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide rollers, guides, slide blocks, etc.
8. Some kind of rubber fender panels and front face of rubber fender.
ISO9001:2008, ROHS & FDA Standard.
Color:Natural,White,Black,Green,Blue,Yellow,Gray and so on.
Sheet Size: 1000X2000X(Thickness:1-300mm),1030X2270X(Thickness:1-300mm)

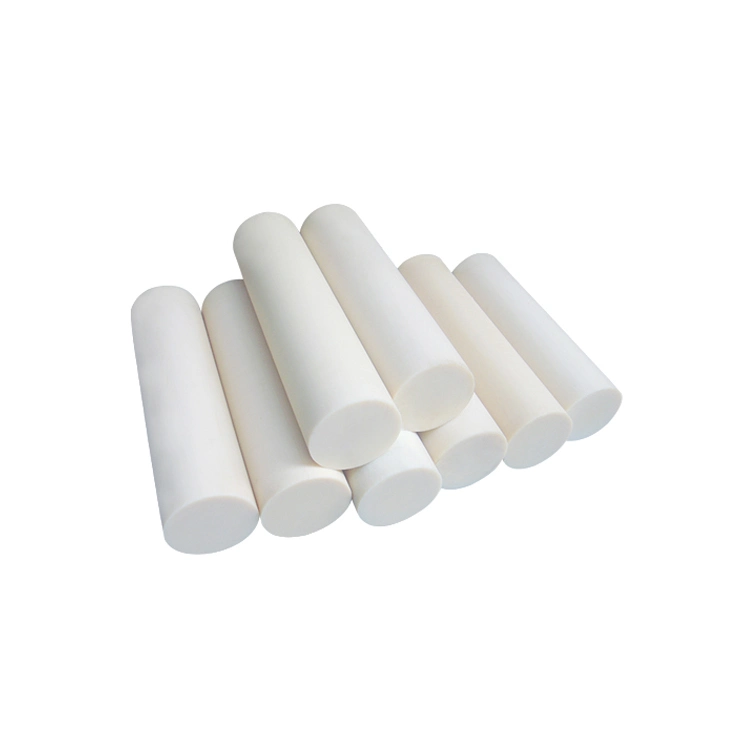

Rod Size: Φ10-Φ500X1000mm
Tube Size: (OD)30-1200 X (ID)10-1100 X Length(1000-2000mm)
The Main Properties of UHMW-PE
|2||average molecular weight||g/mol||9.2X106|
|3||Tensile strength (23ºC in air)||MPa||22|
|5||Tensile strain at break||%||600|
|6||Charpy impact strength (notched)||mJ/mm2||No break|
|7||Ball indentation hardness||N/mm2||42|
|8||Shore D hardness||--||D65|
|9||Abrading(sand slurry experiment)||--||100|
|10||Coefficient of Friction||--||0.09~0.1|
