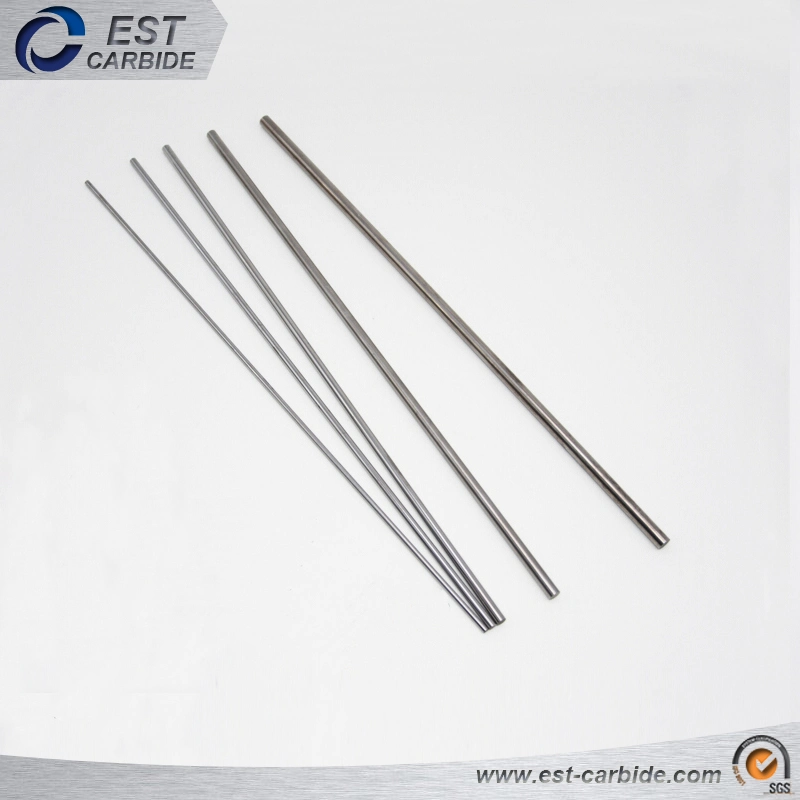

Tungsten Carbide Rods Application: Main used for making varioius drill bits, automobile special cutter, printed circuit board ,special cutters, engine special cutters, horologe,processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be used for making of cemented carbide stamping head,core bar & perforation tools.
Size of carbide rods: Diamter from 1.0mm to 30mm , lenght between 10-400 mm(standard length is 330 mm).
We provide a wide range of tungsten carbide rods in different dimensions, like solid carbide rods, rod with single straight hole, double holes and also twisted holes.Recommend grade list of tungsten carbide rods :
ISO Grade | Co% | Density(g/cm3) | Hardness | Bending Strength(N/mm2) | Grain Size(μm) | |
HV30 (kg/mm2) | HRA (ISO3738) | |||||
K05-K10 | 6 | 14.8 | 1860 | 93.5 | 3800 | <0.5 |
K05-K10 | 6 | 14.9 | 1510 | 91.4 | 3000 | 1.0 |
k20-K30 | 8 | 14.6 | 1700 | 92.7 | 3800 | 0.8 |
K30 | 8 | 14.8 | 1300 | 89.6 | 2500 | 1.2 |
K20-K30 | 10 | 14.5 | 1600 | 92.1 | 3800 | 0.7 |
K20-K30 | 12 | 14.1 | 1680 | 92.6 | 3800 | <0.5 |
K40 | 15 | 14 | 1330 | 90 | 3800 | 0.8 |
K40 | 20 | 13.5 | - | 85 | 2900 | 1.2 |
Main types of the carbide rods:
We also can produce the customized carbide rods, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.
Tolerance Standard For Grinding:
We also can do specified tolerance based on your requirement.
Quality Control System: We always follow the high quality standard for production, from the material preparing to final product ready, all product will go through 3 inspections before we send them to you. Our professional teams will take care of your product and ensure the good and stable quality for all batches.
Our regular product is tungsten carbide tips, carbide inserts, end mills,carbide saw tips,carbide mining parts, carbide rods, plates and stripes.
We also have rich experience for customized product, we make your designs become real product, which perfectly match your need. We have many successful projects on the for our clients in different countries.
