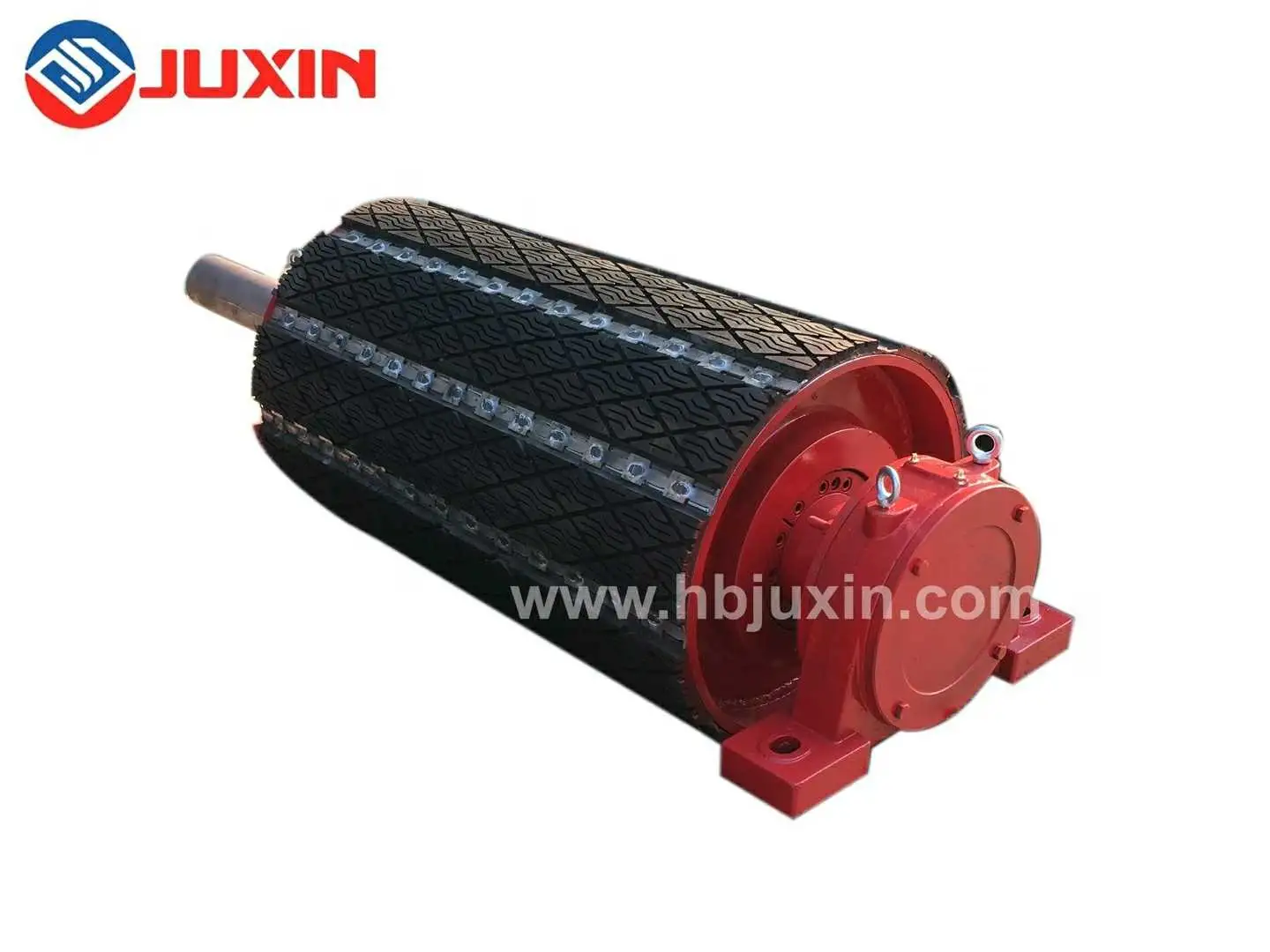

Belt Conveyor Pulley, Head Drum Pulley, Buffer Pulley, Curved Pulley, Steel Pulley

Our conveyor rollers have been exported to more than 70 countries all over the world in past 44 years and we have professional engineers and all of them have rich experience in this field, we can design the goods independentlyProduct Scope:Dia (mm): 63.5, 76, 89, 102, 108, 114, 127, 133, 140, 152, 159, 168, 178, 194, 219Length (

Featured Products

Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel PulleyBelt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel PulleyBelt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
Our conveyor rollers have been exported to more than 70 countries all over the world in past 44 years and we have professional engineers and all of them have rich experience in this field, we can design the goods independently


Product Scope:

Dia (mm): 63.5, 76, 89, 102, 108, 114, 127, 133, 140, 152, 159, 168, 178, 194, 219
Length (mm): 170-2800
Executive Standard: GB/DIN/CEMA/SABS/JIS
Advantage: Our rollers enjoy minimum revolving resistance, low vibration and noise, good concentricity, long lifetime, low maintenance cost and high loading capacity.

Material:

Tube: High-precision ERW, welded with DIN2394 Standard
Shaft: Cold drawn steel in accordance with DIN17100 and other equivalent standard, ISO h6 precision
Bearing housing: Cold pressing working, ISO M7
Seals: Labyrinth seal, Nylon 6
Bearing: Deep groove ball bearing C3 clearance
Painting: Ordinary painting, hot galvanized painting, electric static spraying painting, baked painting, Epoxy painting
Standard DiameterLength scope ( mm)Bearings Type
(Min~Max)
Idler's Shell Wall Thickness
mmInch
63.52 1/2150~35002043.0mm~3.75mm
763150~3500204 2053.0mm~4.0mm
893 1/3150~3500204 2053.0mm~4.0mm
1024150~3500204 205 3053.5mm~4.0mm
1084 1/4150~3500204 205 305 3063.5mm~4.0mm
1144 1/2150~3500205 206 305 3063.5mm~4.5mm
1275150~3500204 205 305 3063.5mm~4.5mm
1335 1/4150~3500205 206 207 305 3063.5mm~4.5mm
1405 1/2150~3500205 206 207 305 3063.5mm~4.5mm
1526150~3500205 206 207 305 306 307 3084.0mm~4.5mm
1596 1/4150~3500205 206 207 305 306 307 3084.0mm~4.5mm
1656 1/2150~3500207 305 306 307 3084.5mm~6.0mm
177.87150~3500207 306 307 308 3094.5mm~6.0mm
190.77 1/2150~3500207 306 307 308 3094.5mm~6.0mm
1947 5/8150~3500207 307 308 309 3104.5mm~6.0mm
2198 5/8150~3500308 309 3104.5mm~6.0mm


Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley

Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
Belt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel PulleyBelt Conveyor Pulley, Head Drum Pulley, Snub Pulley, Bend Pulley, Steel Pulley
