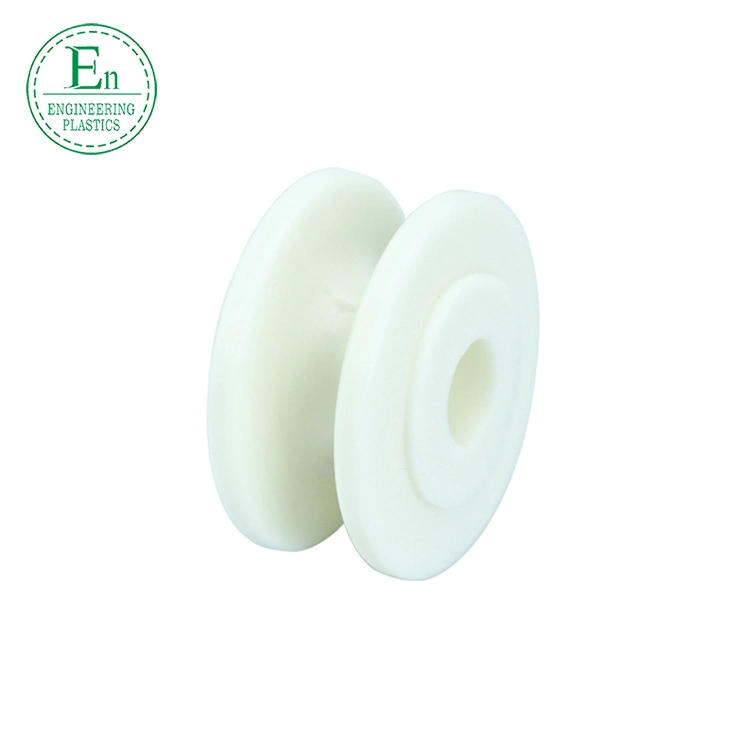

white plastic PE hdpe1000 pulley wheelsUHMW-PE(Ultra high Molecular Weight Polyethylene )is a thermoplastic engineering plastic with the average molecular weight more than 9.0 million. (PE only has the molecular weight between twenty to two hundred thousand. ) This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a "surprised" engineering plastic of excellent comprehensive capacity and competitive price.
Main characteristics:
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anti-corrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high-inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196º C), it still has the prolongation.
Few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE, which is the material that Food and Drug Administration (FDA) and United States Department of Agriculture (ASDA) permit to apply in food and medicine fields.
| Property | Item No. | Unit | Value | |
| Mechanical Properties | 1 | Density | g/cm3 | 0.94-0.96 |
| 2 | average molecular weight | g/mol | More than 9.0 million | |
| 3 | Tensile strength (23ºCin air) | MPa | 22 | |
| 4 | Breaking strength | MPa | 42 | |
| 5 | Tensile strain at break | % | 600 | |
| 6 | Charpy impact strength (notched) | mJ/mm 2 | No break | |
| 7 | Ball indentation hardness | N/mm 2 | 42 | |
| 8 | Shore D hardness | -- | D65 | |
| 9 | Abrading(sand slurry experiment) | -- | 100 | |
Our Service:
1. Rich industry experience since 1988.
2. Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PBI ect.
3. Manufacture, design and processing service as per your demand.
Production Flow:
Product technology:
CNC machine,Extrusion,Injection,ect.
Processing Equipment :
CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
Packaging &Shipping:
Packing in plastics bags,wooden case,pallet,container,ect.
Certificate:
Certification:ISO,SGS,FDA,RoHS,Test report,ect.
FAQ:
1.A: What's the size of plastics sheet?
B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
POM sheet:Width*Length:1000*2000mm
2. A:Can we purchase a small part of plastics sheet?
B: Yes,you can, if we have the size you require in stock.
3. A:What color of plastics sheet?
B: Nylon sheet: Natural,black,blue,or according to client's requiremnet.
UHMW-PE sheet: White,black,green ,bule,yellow,or according to client's requirement.
White,black
4. A:Can you manufacture the plastics products as per drawing?
B: Yes,we can.
5.A: What the precision of plastic products according to drawing?
B: Different machine with different precision,it usually around 0.05-0.1mm
6.A: What the technologies in producing plastics parts?
B: Different products with different technologies,such as CNC machine,Extrusion,Injection
7: A:What kinds of processing machine do you have?
B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
