UL62 THHN THWN-2  CSA T90 TWN75  Nylon wire with UL cUL certification

1 Construction:



  Conductor: flexible copper or aluminum

  Insulation: flame retartant PVC

  Sheath: Nylon



• Temperature Rating: not more than 90°C

• flame retartant and an oil resistant

• FT1 Test


Rated :

  THWN: 75°C Oil, 75°C Wet, 90°C Dry

· THWN-2: 75°C Oil, 90°C Wet, 90°C Dry

· MTW: 60°C Oil, 60°C Wet, 90°C Dry

· AWM 1316 to 1321: 80°C Oil, - Wet, 105°C Dry,

· AWM 1408 to 1414: 60°C Oil, 60°C Wet, 90°C Dry,

· AWM 1452 to 1453: 80°C Oil, - Wet, 90°C Dry,

· T90 NYLON: 60°C Oil, - Wet, 90°C Dry,

· TWN 75: - Oil, 75°C Wet, - Dry

 2 Application:

 THHN or THWN-2* conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electrical Code.When used as Type THHN, conductor is suitable for use in dry locations at temperatures not to exceed 90°C. When used as Type THWN-2*, conductor is suitable for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 75°C when exposed to oil or coolant. When used as Type MTW, conductor is suitable for use in wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C or dry locations at temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79). Conductor temperatures not to exceed 105°C in dry locations when rated AWM and used as appliance wiring material. Voltage for all applications is 600 volts.



 Data sheets of THHN/T90-CU



Conductor AWG or MCM

Stranding

Insulation Thickness (mm)

Sheath

Thickness

(mm)

Outside Diameter (mm)

Weight (Kg/KM)

14

19

0.38

0.10

2.8

24

12

19

0.38

0.10

3.3

36

10

19

0.51

0.10

4.2

58

8

19

0.76

0.13

5.5

96

6

19

0.76

0.13

6.5

146

4

19

1.02

0.15

8.3

233

3

19

1.02

0.15

9.0

288

2

19

1.02

0.15

9.8

357

1

19

1.27

0.18

10.9

446

1/0

19

1.27

0.18

11.8

555

2/0

19

1.27

0.18

12.9

698

3/0

19

1.27

0.18

14.2

862

4/0

19

1.27

0.18

15.5

1077

250

37

1.52

0.20

17.2

1272

300

37

1.52

0.20

18.5

1521

350

37

1.52

0.20

19.7

1762

400

37

1.52

0.20

20.8

2002

500

37

1.52

0.20

22.9

2482


Details show

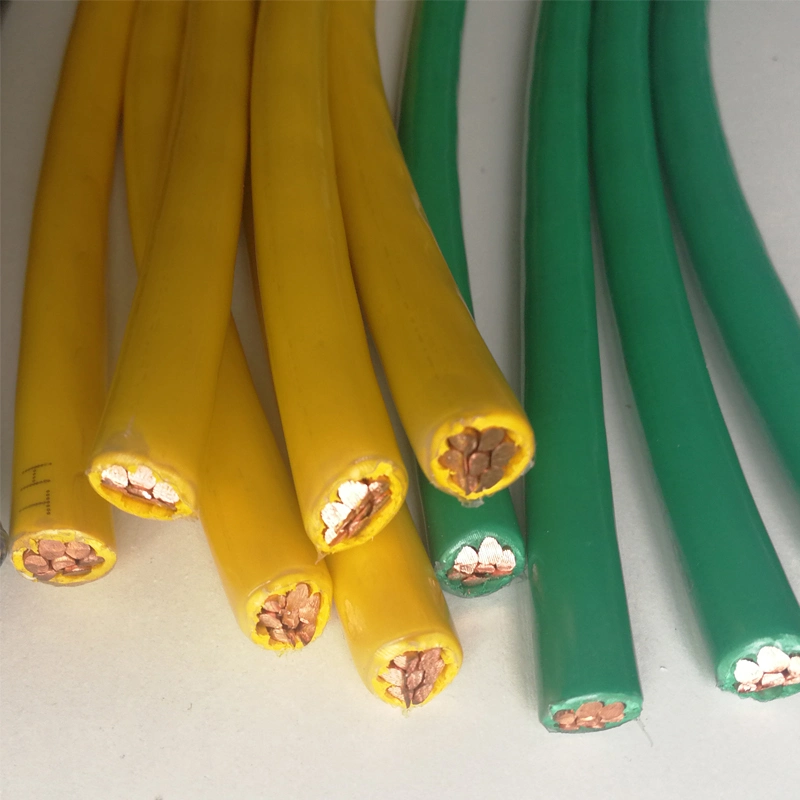

Thhn Wire UL83 CSA Thhn Thwn T90 Twn75 Nylon Wire




Packaging & Shipping

Thhn Wire UL83 CSA Thhn Thwn T90 Twn75 Nylon Wire



Company Information

HeBei huatong wires&cables Group Co.,ltd.

which founded in1993,covers 15,000 square meters.With 400 sets of manufacturing machines and 200 pieces of equipment available for testing and inspecting,the company's annual mannufacturi-ng capacity has reached 450 minllionUS dollars.

The enterprise has adapted international a-dvanced mannagement standards by fully implementing the accreditation of ISO9001Quality con-trol system, ISO1004 Envrionment management system,and OHSAS18001 Occupational health and safety management system.

Huatong's products which consist of 15 series of cables and tens of thousands of specifications are widely used in different  key  national projects and industries .Our products are well liked by domestic and international customers that they have been exported to various countries and areas including the US,Netherlands, Italy,Russia,UK,Australia,Ethiopia,Ghaha,congo,Middle East ,and Southeast Asia.
Thhn Wire UL83 CSA Thhn Thwn T90 Twn75 Nylon Wire

Thhn Wire UL83 CSA Thhn Thwn T90 Twn75 Nylon Wire


FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week.
