D3/SKD1/Cr12 /1.2080 Cold Work Tool Steel Flat Bar Flat Steel Steel Plate
Product Introduction
Cr12 steel is a widely used high carbon and high chromium cold work die steel with high strength, good hardenability and good wear resistance,
but poor impact toughness.A high carbon high chromium steel noted for its resistance to abrasion, it offers excellent dimensional stability in hardening.
Features
Chemical Composition
Heat Treatment
Applications
Why choose us?
Quality Assurance from government owned steel mills
At Changfeng , we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service
Workshop
Quality Inspection
Packing & delivery
Contact Us
Contact us for the latest price and more details NOW!
Product Introduction
Cr12 steel is a widely used high carbon and high chromium cold work die steel with high strength, good hardenability and good wear resistance,
but poor impact toughness.
A high carbon high chromium steel noted for its resistance to abrasion, it offers excellent dimensional stability in hardening.
After heat treatment D3 is hard, durable and dense, and is immune from sinking in use. It offers a measure of corrosion resistance when polished.
In general, the applications of D3 tool steel resemble those of D2 but it should be remembered that D3 has better wear resistance of the two steels and is preferred for such items as shear blades. Owing to its higher wear resistance, D3 tool steel is slightly more difficult to grind than D2.
1.2080 flats cut from block and a limited range in round bar diameters. This tool steel specification is noted for its resistance to abrasion. It offers excellent dimensional stability in hardening. After heat treatment the tool steel is hard, durable, dense, and is immune from sinking in use. It offers a measure of corrosion resistance when polished. In general, the applications of 1.2080 tool steel resemble those of 1.2379 but it should be remembered that 1.2080 has better wear resistance of the two steels and is preferred for such items as shear blades. Owing to its higher wear resistance, 1.2080 tool steel is slightly more difficult to grind than 1.2379.
Features
- 1 High wear resistance
- 2. High hardenability
- Belong to ledeburite steel
| Chinese | American | German | Japanese |
| GB | AISI | DIN | JIS |
| Cr12 | D3 | 1.2080 | SKD1 |
| Grades | C | Si | Mn | P | S | Cr | Mo | V |
| 1.208 | 1.9-2.2 | 0.1-0.4 | 0.15-0.45 | ≤0.03 | ≤0.03 | 11.5-12.0 | / | / |
| D3 | 2.00-2.35 | 0.25-0.45 | 0.24-0.45 | ≤0.03 | ≤0.03 | 11.5-13.0 | 0.8 | 0.8 |
| Cr12 | 2.0-2.3 | ≤0.4 | ≤0.4 | ≤0.03 | ≤0.03 | 11.5-13.0 | / | / |
| SKD1 | 1.9-2.2 | 0.1-0.6 | 0.2-0.6 | ≤0.03 | ≤0.03 | 11.0-13.0 | / | ≤0.03 |
Heat Treatment
| Heat Treatment | |||||
| Quenching | Tempering | ||||
| Heating Temperature/ºC | Cooling | Hardness/HRC | Heating Temperature/ºC | Cooling | Hardness/HRC |
| 950-980 | Oil | ≥60 | 180-220 | Air | 60 |
| 400 | 54-58 | ||||
- 1 For the production of cold dies and punches that are subject to low impact loads, samll to medium production volumes, and require high wear resistance.
- 2. Cold cutting blade for cutting hard and thin metal
- 3. For drill sleeves, gauges, wire drawing dies, embossing dies, crepe plates, drawing dies, cold extrusion dies and screw roller dies
- 4. Suitable for the production of large, complex and precision plastic moulds requiring high resistance

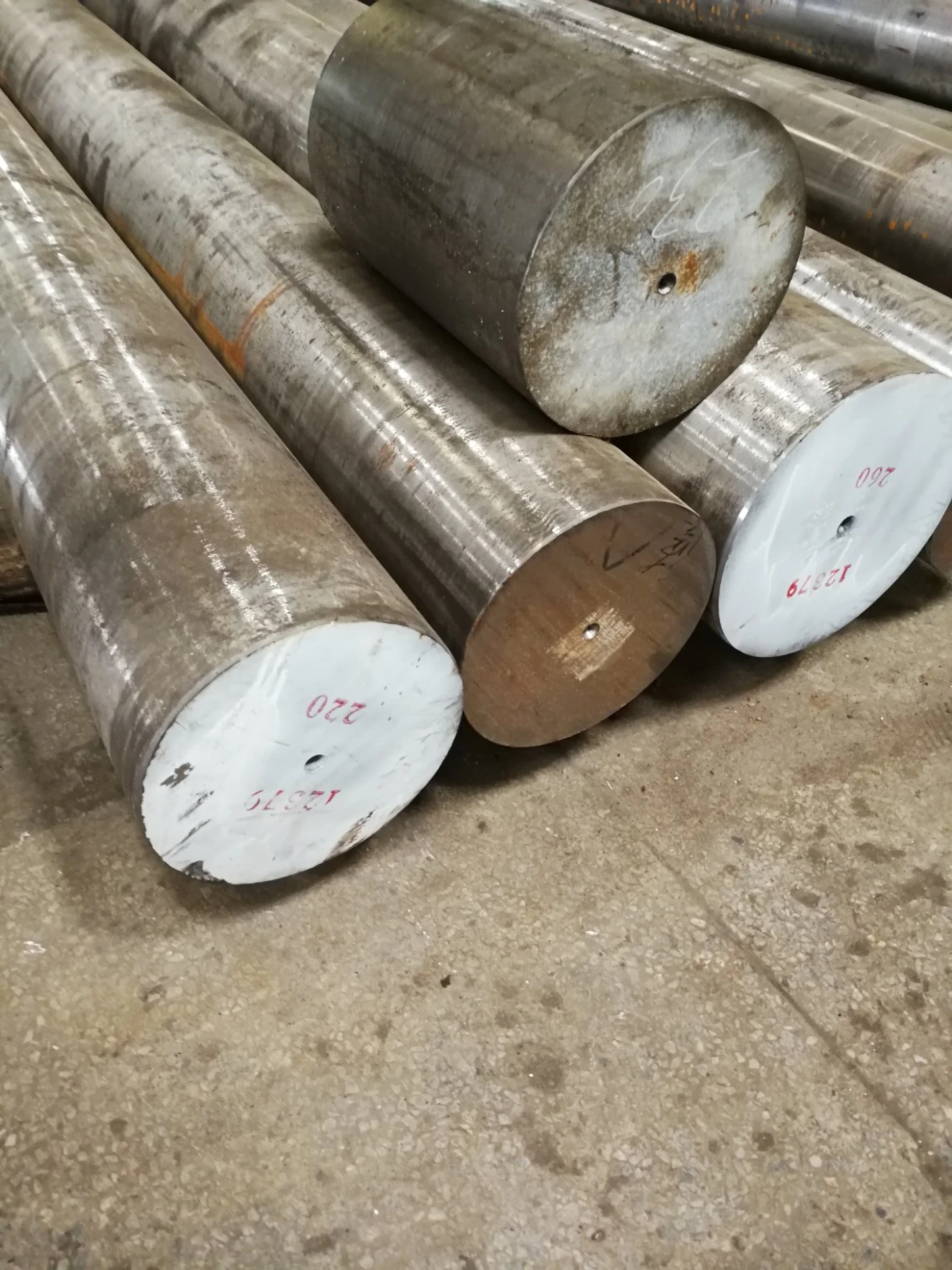

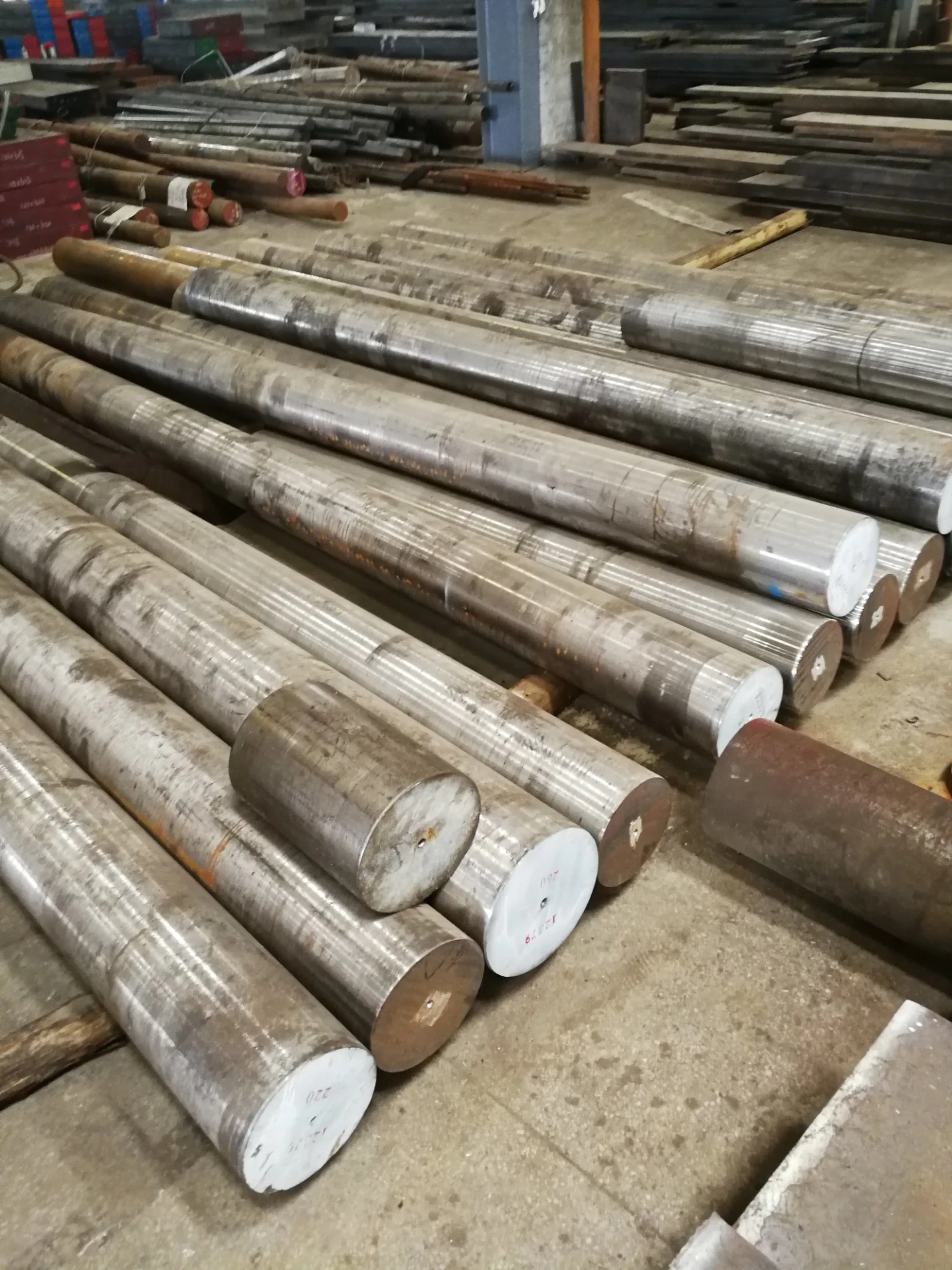

| Round Bar | Diameter | 10-180mm |
| Length | 3000-6000mm | |
| Flat Bar | Thickness | 6-90mm |
| Length | 4000-5000mm |
Why choose us?
Quality Assurance from government owned steel mills
At Changfeng , we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service
Workshop
Quality Inspection
Packing & deliveryContact Us
Contact us for the latest price and more details NOW!
