Product Description

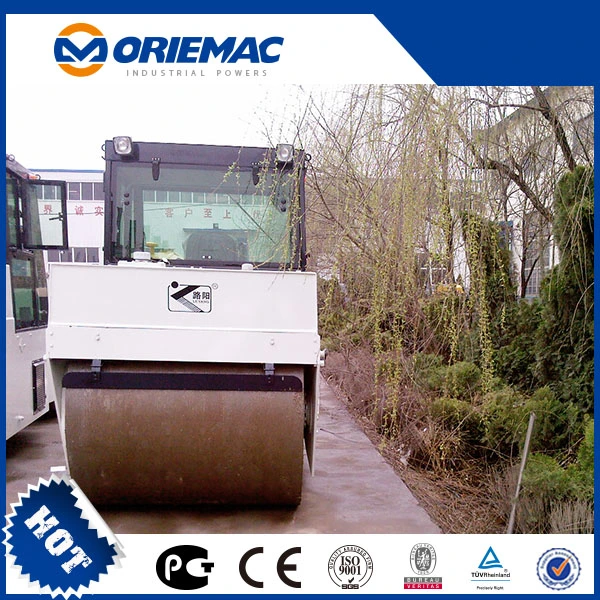

Small 8 ton road roller LTC08H Lutong brand with Changfa engine
The imported engine with original packing has strong power, and can meet the requirements of high-efficient work.
- Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.
| MODEL | LTC08H | |
| Operating mass | kg | 770 |
| Static linear load | N/cm | 46/73 |
| Vibration round width | mm | 600 |
| Centrifugal force | KN | 12 |
| Grade ability | ° | 40 |
| Overall length | mm | 2450 |
| Overall width | mm | 820 |
| Overall height | mm | 1030 |
| Diesel model | CF186F | |
| Diesel power | KW | 5.68KW |
| Turning radius | mm | 2700 |
| Wheel base | mm | 470 |
| Travel Speed | Km/h | 2.5 |
| Vibration frequency | Hz | 48 |
| Vibration amplitude | mm | 0.25 |
