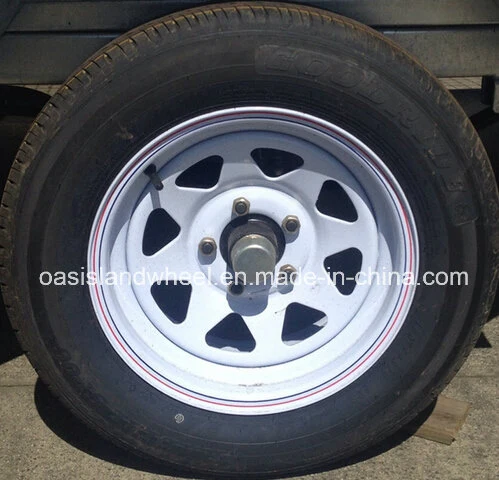

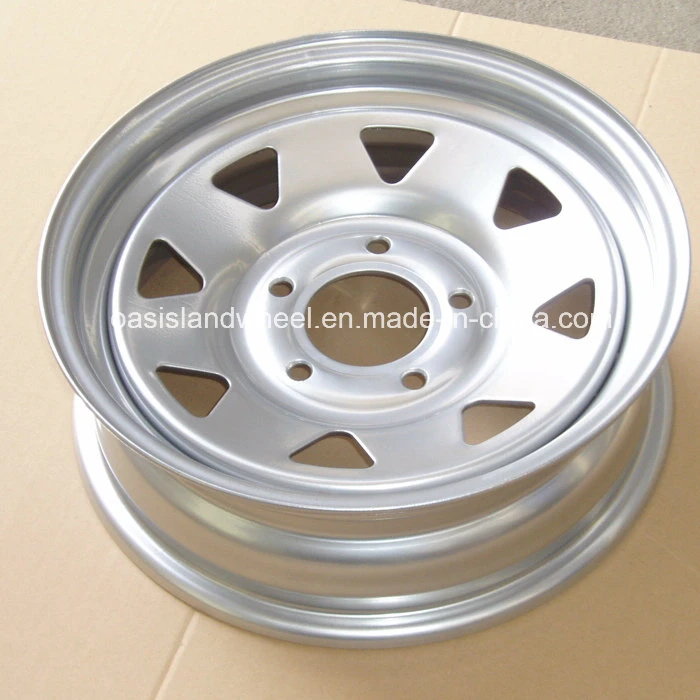

Small tubeless trailer wheels / 4x4 steel wheels (13x4.5, 13x5.5)
Features:
1. Used for 4X4 Truck or trailer in Snow season
2. Made in high quality factory with international standard.
3. Warranty: 2year
4. Assembly: Available.(tire with rim)
Specification:
odel | Offset | Center hole | Bolt hole | PCD | Valve | Tyre | Thickness |
| 6JX14 | 45 | 56.1 | 4-14.5 | 100 | TR414 | 205/60R16 | 4.25MM |
| 6JX15 | 50 | 60 | 4-14 | 100 | TR414 | 205/60R15 | 4.5MM |
| 61/2JX15 | 42 | 72.5 | 5-15 | 114.3 | TR414 | 225/60R15 | 4.5MM |
| 61/2JX16 | 42 | 72.5 | 5-15 | 110 | TR414 | 225/60R16 | 4.5MM |
| 61/2JX17 | 39 | 71.5 | 5-17 | 114.3 | TR414 | 225/55R17 | 4.5MM |
| 7JX17 | 22 | 71.5 | 5-17 | 114.3 | TR414 | 225/55R17 | 4.5MM |
Size | Part number | Offset | CB | Bolt | PCD | Load Lbs | Vent holes |
| 61/2Jx16 | LT951 | 42 | φ72.5 | 5-φ15 | φ114.3 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951A | 42 | φ67.1 | 5-φ15 | φ110 | 1400 | 14-φ35 |
| 61/2Jx16 | LT951B | 42 | φ72.5 | 5-φ15 | φ112 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951C | 52 | φ72.5 | 5-φ15 | φ115 | 1492.5 | 14-φ35 |
| 61/2Jx16 | LT951D | 42 | φ72.5 | 5-φ15 | φ120 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951E | 42 | φ57.1 | 5-φ15 | φ100 | 1300 | 14-φ35 |
| 61/2Jx16 | LT951F | 42 | φ67.1 | 5-φ15 | φ108 | 1300 | 14-φ35 |
| 61/2Jx16 | LT951G | 50 | φ56.1 | 5-φ15 | φ100 | 1250 | 14-φ35 |
| 61/2Jx16 | LT951GA | 50 | φ56.1 | 5-φ15 | φ100 | 1250 | 14-φ35 |
| 61/2Jx16 | LT951H | 42 | φ65.1 | 5-φ15 | φ108 | 1300 | 14-φ35 |
| 61/2Jx16 | LT951I | 42 | φ65.1 | 5-φ15 | φ110 | 1400 | 14-φ35 |
| 61/2Jx16 | LT951IA | 42 | φ65.1 | 5-φ15 | φ110 | 1400 | 14-φ35 |
| 61/2Jx16 | LT951J | 42 | φ57.1 | 5-φ15 | φ112 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951JA | 42 | φ57.1 | 5-φ15 | φ112 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951K | 42 | φ66.1 | 5-φ15 | φ114.3 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951L | 42 | φ67.1 | 5-φ15 | φ114.3 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951LA | 42 | φ67.1 | 5-φ15 | φ114.3 | 1550 | 14-φ35 |
| 61/2Jx16 | LT951M | 55 | φ67.1 | 5-φ15 | φ114.3 | 1455 | 14-φ35 |
Truck wheel rim sizes:
| size | tyre size |
| 17.5×6.00 | 8R17.5 215/75R17.5 |
| 17.5×6.75 | 9R17.5 |
| 19.5x6.00 | 8R19.5 |
| 19.5x6.75 | 9R19.5 225/75R19.5 |
| 19.5x7.50 | 9R19.5 |
| 19.5x8.25 | 11R19.5 |
| 22.5×6.75 | 9R22.5 235/70R22.5 |
| 22.5×7.50 | 10R22.5 255/70R22.5 |
| 22.5×8.25 | 11R22.5 |
| 22.5×9.00 | 12R22.5 315/80R22.5 |
| 22.5×11.75 | 15R22.5 385/65R22.5 |
| 24.5x8.25 | 11R24.5 |
| 22.5×14.00 | 18R22.5 |
