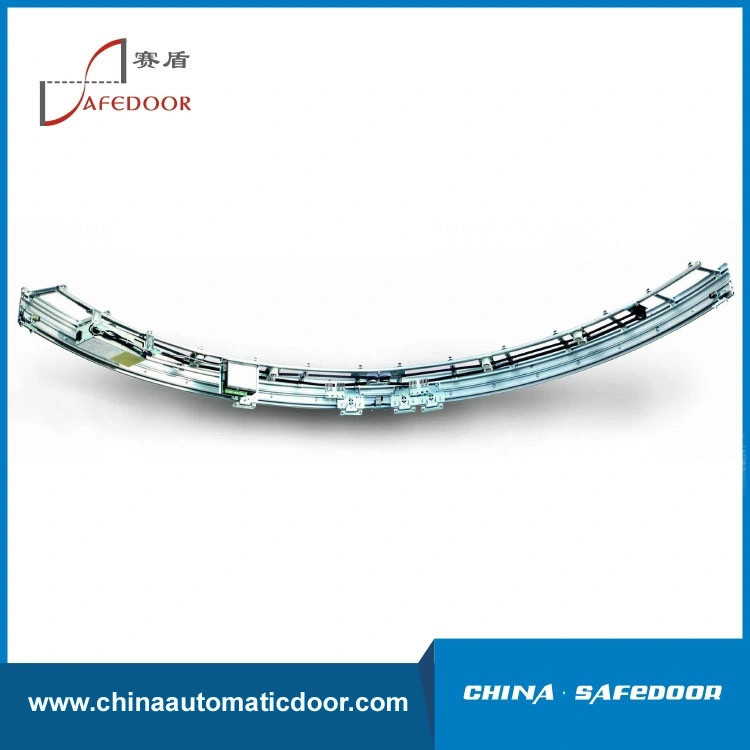

Automatic arc sliding door machine (1071.105D)/automatic arc sliding door/automatic round door

The Art.1071.105 is especially suitable for curved sliding doors that emphasize on aesthetics and space saving. Due to the curved sound absorbing track, the volume is very low when operating. It can adjust its opening/closing speed intelligently. And five status including permanent open, lock, partial open, exit only and auto ar

Featured Products

The Art.1071.105 is especially suitable for curved sliding doors that emphasize on aesthetics and space saving. Due to the curved sound absorbing track, the volume is very low when operating. It can adjust its opening/closing speed intelligently. And five status including permanent open, lock, partial open, exit only and auto are supported.

Deluxe curved sliding door operator 1071.105D characteristics:
1. Heavy duty brush motor 60V 100W, integrated with transformer, optical encoder, very low noise.
2. Heavy duty carriage wheel 100kgs affordable, and the drop-proof mechanism will never let the door drop from the guide track.
3. Smart microcontroller can self test the door weight and width, and optimize the running curve.
4. Environmental protection idea, opening width 25-90% adjustable, saving airflow.
5. Dual-motor controllable: One microcontroller controls two motors to satisfy the special bigger doors.
6. Reverse against obstruction, emergency stop, battery backup, interlock, inner/out unlock mechanism, BEDIS remote control available

Automatic Curved Sliding Door Operator (1071.105D) /Automatic Curved Sliding Door/ Automatic Circular Door
Automatic Curved Sliding Door Operator (1071.105D) /Automatic Curved Sliding Door/ Automatic Circular Door

Automatic Curved Sliding Door Operator (1071.105D) /Automatic Curved Sliding Door/ Automatic Circular Door

 Art. No.1071.105D
Outer diameter1000mm (min)
opening width900mm (min)
max weight150kgs/leaf
powerAC 220V±10%, 110V±10%, 50-60Hz
opening speed500-700mm/s
closing speed500-700mm/s
hold open time1-10/30s
Drive force150N
Brush motor60V
Power consumption200W
Profile height200mm
Profile depth165mm
protectionIP23
ambient temperature-15º~+70 º
