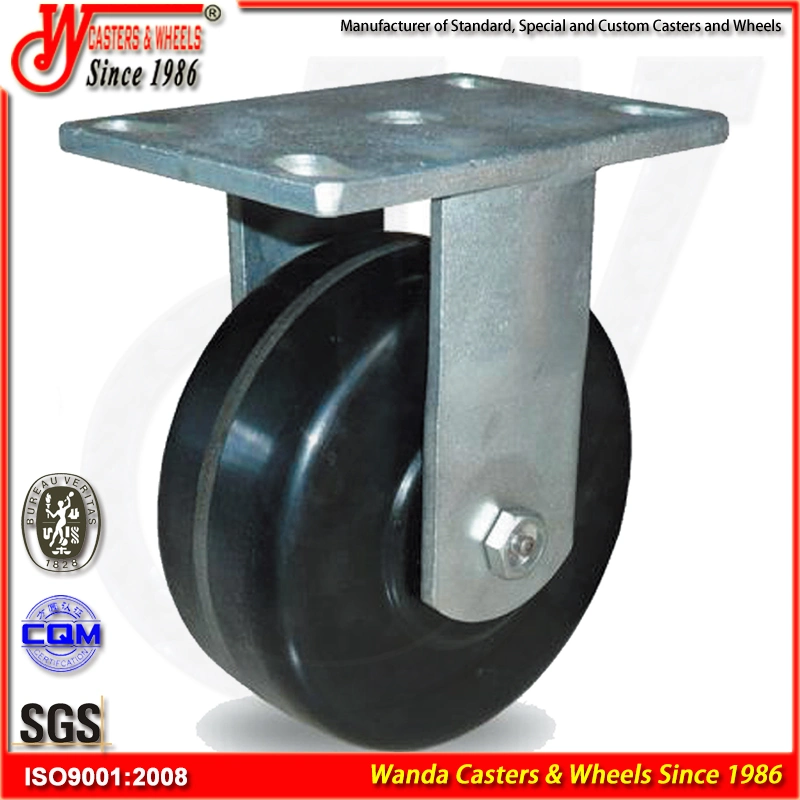

5\\"X2-1/2\\" Heavy Duty Phenolic Wheel Fixed Casters

Product Features:Caster BrandWANDAProduct Name5" x2.5" Heavy Duty Rigid Caster With Phenolic WheelRange of ApplicationVarious Logistics CarriersProduct Code 760PF-125064R-06Product CategoryIndustrial CastersLoading Capacity750kgsMounting TypePlate TypeOverall Height165 mmThickness of Frame6.0 mmFrame MaterialQ235BStem

Featured Products

Product Features:
Caster BrandWANDA
Product Name5" x2.5" Heavy Duty Rigid Caster With Phenolic Wheel
Range of ApplicationVarious Logistics Carriers
Product Code 760PF-125064R-06
Product CategoryIndustrial Casters
Loading Capacity750kgs
Mounting TypePlate Type
Overall Height165 mm
Thickness of Frame6.0 mm
Frame MaterialQ235B
Stem SizeN/A
Surface FinishZinc Plated
Wheel Dia.127 mm (5 inch)
Wheel Width64mm
Wheel Tread MaterialPhenolic
Wheel Tread Hardness90D
Wheel Tread ColourBlack
Wheel Hub Material  N/A
Bearing TypeRoller Bearing
Temperature Range-40ºC~150ºC
 Instalation & Dimension Figure & Picture:
