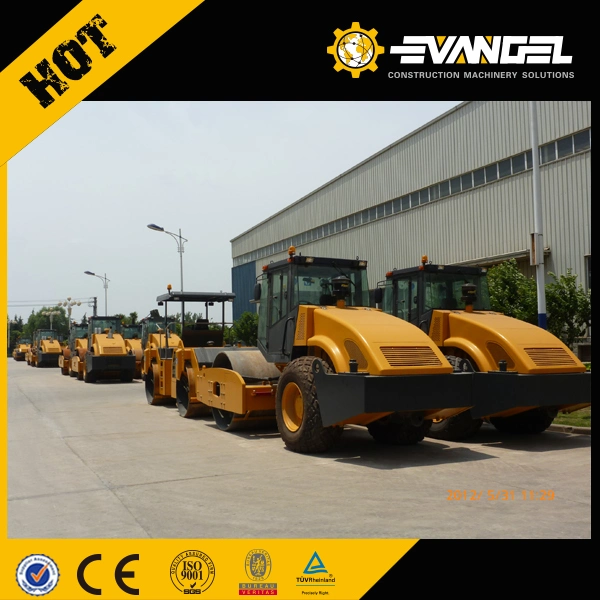

Detailed Product Description
1. Shanghai Diesel Engine
2. Max. Operating weight: 27000kg
3. ZF torque converter
Contact ways
Best regards,
Clay Gao/ Sales Manager
Evangel Industrial (Shanghai) Co., Ltd.
Evangel International Machinery Ltd.
(CHINESE LEADING CONSTRCUTION MACHINERY AND SPARE PARTS EXPORTER)
Add: Suite 1326, Fortune Times Tower, No. 1438 North Shanxi Road, Shanghai, China
Mobile: +86-15879679086
Tel: +86-21-62770109 Fax: +86-21-62770039
1. Shanghai Diesel Engine
2. Max. Operating weight: 27000kg
3. ZF torque converter
Overall Dimension | ||
| 1 | Length | 5060mm |
| 2 | Width | 2870mm |
| 3 | Height(To the top of the cab) | 3480mm |
| 4 | Wheel base | 3840mm |
| Main Technical Specification | ||
| 1 | Max Operating weight | 27000kg |
| 2 | Min Operating weight | 15500kg |
| 3 | Max. ballast water | 4500 kg |
| 4 | Average ground press | 260-435kPa |
| 5 | Min. ground clearance | 250mm |
| 6 | Roller width | 2750mm |
| 7 | Grade ability | ≥ 20 |
| 8 | Min. turning radius(Outside of rear wheel) | 9000mm |
| 9 | Traveling speed(Km/h), 2 forward and 2 reverse | |
| (1) 1st gear forward | 0~8 | |
| (2) 2nd gear forward | 0~16 | |
| (3) 1st gear reverse | 0~8 | |
| (4) 2nd gear reverse | 0~16 | |
| Diesel engine | ||
| 1 | Model | Chinese Engine D6114ZG6B |
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 132 kW |
| 4 | Rated speed | 2000(r/min) |
| 5 | Inter-bore of cylinder/stroke | 114 (mm) |
| 6 | Total exhaust of cylinder | 8.3 (L) |
| 7 | Max. Torque | 695(N. M) |
| 8 | Min. specific fuel consumption | 226(g/Kw. h) |
| 9 | Model and parameter of starting motor | QD285KS/R7.5-24V |
| 10 | Starting type | Electric |
| 11 | Net weight | 640(kg) |
