MJ-CFSS Light Weight EMI Tinned Copper Foil Shielding Expandable Braided Cable Sleeve
What is the Special of our Tinned Copper Cable Sleeve?
1) Multi-purpose metal braid provides shielding and grounding for equipment or wire harnesses ,
to protect your investment.
2) Expandable design allows for quick and easy installation of cable or wire bundles
3) Quality tinned copper braid can be easily soldered to connectors and used for custom-length earth straps.
4) Resists chemicals and the elements for use in rugged or exposed applications
5) Durable construction provides superior protection from accidental cuts or consistent abrasion
6) Easily cuts with shears, however heat shrink or electrical tape is recommended to terminate ends,
to prevent them from fraying.
What is the Details of our Copper Foil Shielding Sleeve?
Application Fields | copper braided sleeve used for the flexible conductor of electric installation,switch gear,electric frunace,storage battery,etc |
Sleeve Material | Copper Filament |
Working Temperature | -40°C to 150°C |
Standard Color | Tinned Color |
Flame Retardant | Yes |
Flammability Class | VW-1 |
Available Size | 3mm~50mm |
Certificated | ROHS |
| Full Size Sample Lead time: | As usual 3-7 working days |
| Production Lead time: | 15-30 days |
Shield Effect
| HZ | P1(dBM) | P1(dBM) | SEdB(dB) |
| 10 | 0.0 | -80.1 | 80.1 |
| 30 | -0.1 | -77.7 | 77.6 |
| 100 | -0.2 | -71.6 | 71.4 |
| 300 | -0.4 | -56.0 | 55.6 |
| 1000 | -0.9 | -41.2 | 40.3 |
| 1500 | -1.1 | -37.4 | 36.3 |
| 3000 | -1.6 | -26.5 | 24.9 |

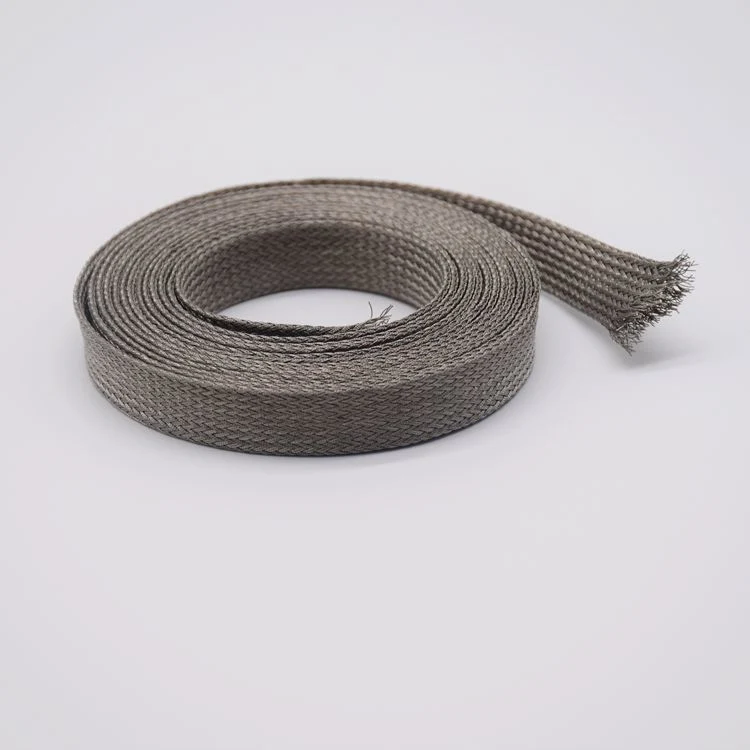

Product Pictures
Application
It is Mainly used for communication system,electronic medical equipments,military equipments as well.
It's great for applications where light weight and high performance are needed. Such applications may include computer systems, electronic office equipment, medical electronics, communications systems and many more.
Specification
| Part No | Size | Expanded Range(mm) | Packing | |
| mm | Min(I) | Max(O) | (m/spool) | |
| MJ-CFSS003 | 3 | 1 | 5 | 300 |
| MJ-CFSS004 | 4 | 3 | 7 | 300 |
| MJ-PEBS006 | 6 | 4 | 9 | 200 |
| MJ-CFSS008 | 8 | 6 | 12 | 200 |
| MJ-CFSS010 | 10 | 7 | 16 | 150 |
| MJ-CFSS012 | 12 | 8 | 20 | 100 |
| MJ-CFSS015 | 15 | 10 | 23 | 100 |
| MJ-CFSS020 | 20 | 13 | 28 | 100 |
| MJ-CFSS025 | 25 | 18 | 32 | 100 |
| MJ-CFSS030 | 30 | 20 | 40 | 50 |
| MJ-CFSS040 | 40 | 30 | 50 | 50 |
| MJ-CFSS050 | 50 | 40 | 60 | 50 |
