Product Description

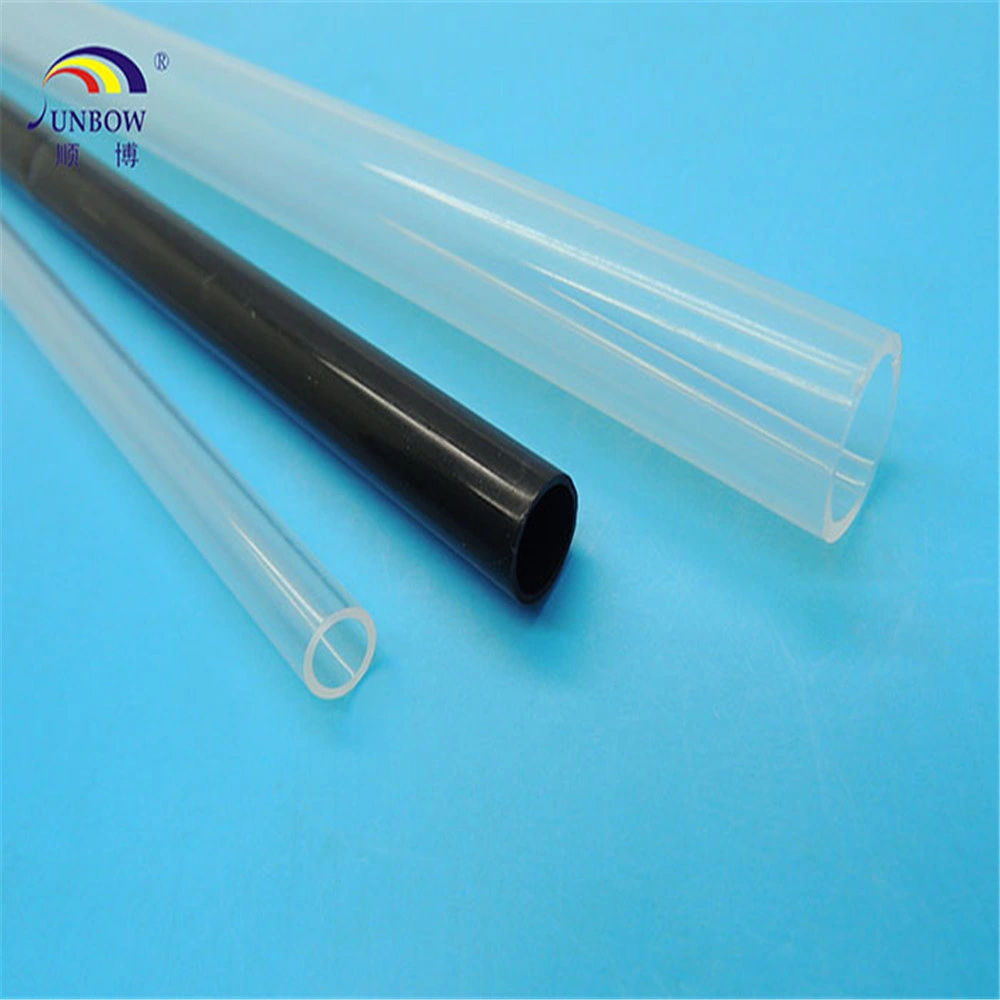

Sunbow Plastic Tube PFA Tube PFA Sleeve

Model number:SB-PFA
Working temperature: up to 260ºC (500º F)

Description
PFA Tubing (Perfluoroalkoxy) offers excellent crack and stress resistance and is used when more demanding mechanical characteristics are required. PFA Tubing is the product of choice for applications involving extreme chemical resistance combined with high temperature exposure. PFA Tubing is preferred when additional clarity, flexibility, and a higher continuous service temperature are required. PFA Tubing provides stiffness and long flex-life (up to 260ºC) and has all the general properties of PTFE.
In the semiconductor and pharmaceutical industries, PFA HP (High Purity) Tubing is used for fluid handling applications requiring an extremely low level of chemical extractables.

Usage
Aerospace &Transportation Technology, Electronics, Components & Insulators, Chemical & Pharmaceutical Manufacturing, Food Processing, Environmental Sciences, Air Sampling, Fluid Transfer Devices and Water Processing Systems.


Dimension for Ordinary Tube
External Diameter x Internal Diameter(mm)Maximum Length(m)External Diameter x Internal Diameter(mm)Maximum Length(m)
Ф 2 X Ф 1.6100-500Ф 16 X Ф 1350-100
Ф 3 X Ф 2.2Ф 16 X Ф 14
Ф 4 X Ф 3.2Ф 20 X Ф 16
Ф 5 X Ф 4Ф 20 X Ф 18
Ф 6 X Ф 3Ф 25 X Ф 21
Ф 6X Ф 4Ф 2 5X Ф 22
Ф 6 X Ф 5Ф 32 X Ф 28
Ф 8 X Ф 6Ф 32X Ф 29
Ф 8 X Ф 7Ф 36 X Ф 30
Ф 10 X Ф 7Ф 36 X Ф 32
Ф 10 X Ф 8Ф 40 X Ф 34
Ф 10 X Ф 9Ф 40 X Ф 36
Ф 12 X Ф 10Ф 42 X Ф 38
Ф 12 X Ф 11Ф 46 X Ф 42
Ф 16 X Ф 12Ф 50 X Ф 46
External Diameter x Internal Diameter(mm)External Diameter x Internal Diameter(mm)Length(m)
Ф 1.87 X Ф 1.28Ф 4.50 X Ф 3.74200-500
Ф 1.94 X Ф 1.28Ф 4.70 X Ф 3.74
Ф 2.16 X Ф 1.50Ф 5.00 X Ф 4.12
Ф 2.56 X Ф 1.90Ф 5.00 X Ф 4.24
Ф 2.62 X Ф 1.98Ф 5.24 X Ф 4.24
Ф 2.62 X Ф 2.06Ф 5.34 X Ф 4.58
Ф 3.00 X Ф 2.44Ф 5.70 X Ф 4.94
Ф 3.53 X Ф 2.83Ф 6.00 X Ф 5.24
Ф 3.53 X Ф 2.93Ф 6.26 X Ф 5.24
Ф 4.50 X Ф 3.64Ф 6.99 X Ф 5.99
