Tungsten carbide rods (bars) has many excellent characteristics such as high hardness and strength, good wear and corrosion resistance and salient stability under high temperature. It can be used to cut cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc; and can make drilling tools, mining tools and wear parts etc.
YG6 YG8 K20 thread polished grinding sintered blank rough TC rods with hole - Solid Cemented Tungsten Carbide Rod

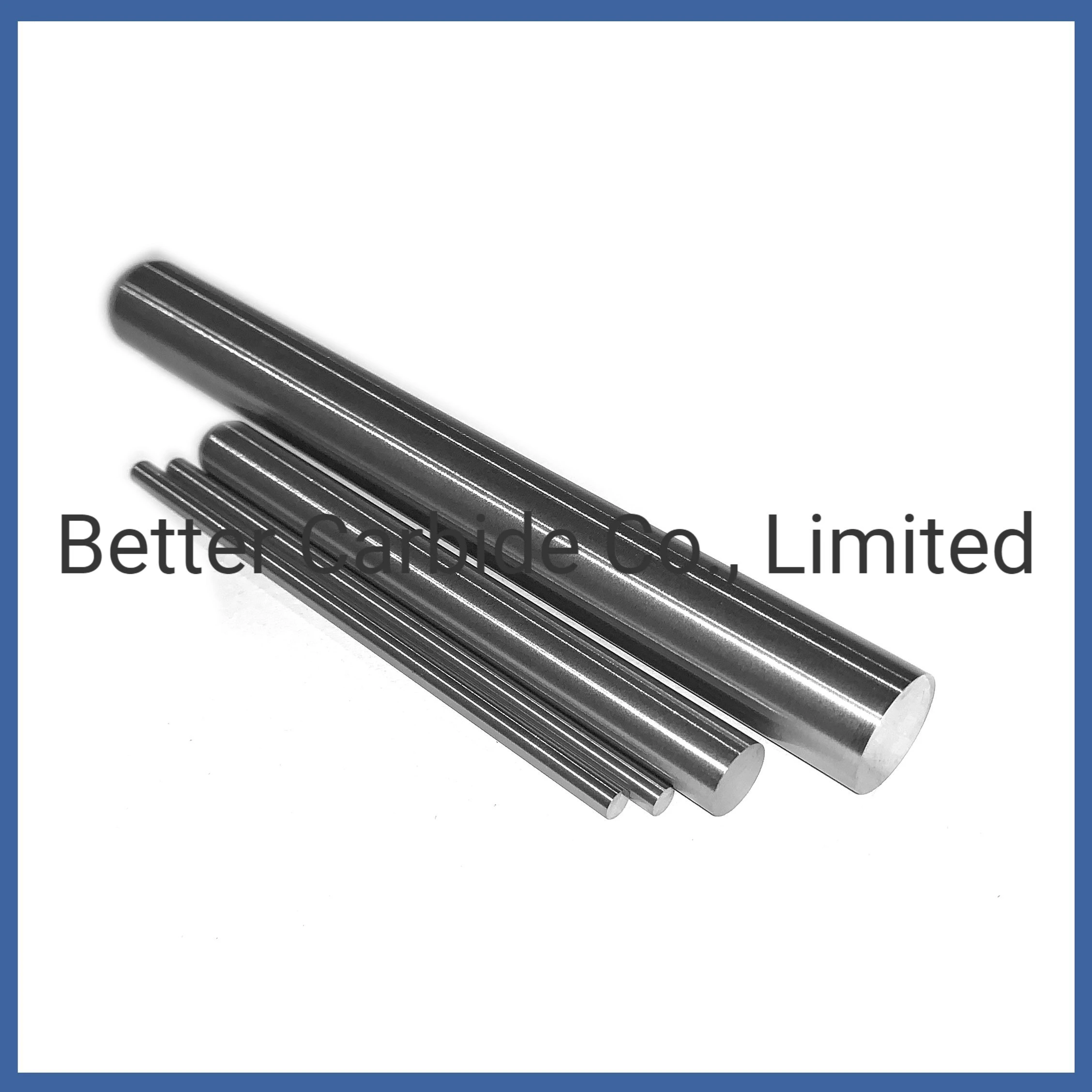

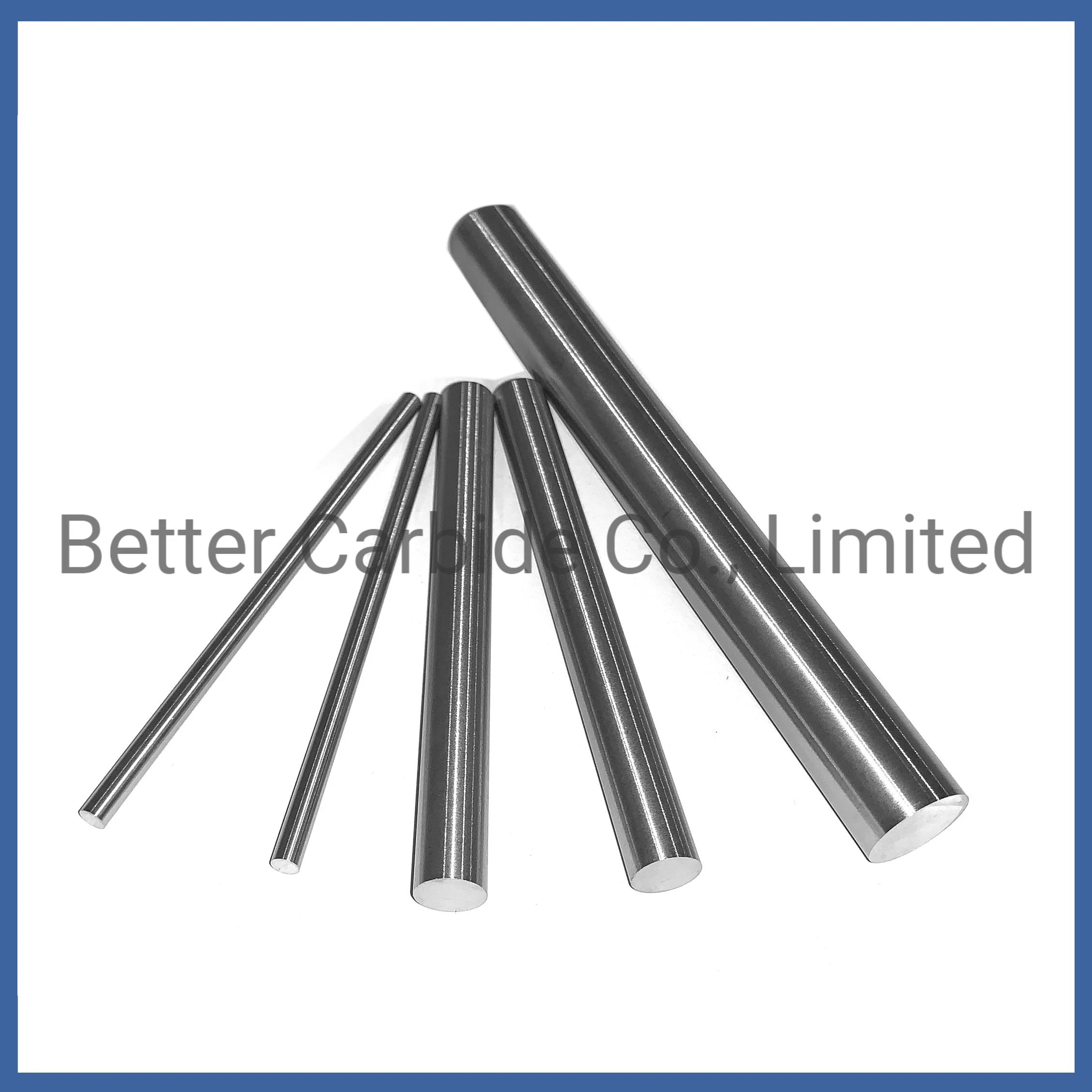

Tungsten carbide rods (bars) available as blanks or h6 precision ground with chamfer-on-one-end. Our tungsten carbide rods are manufactured as standards with one or two holes, straight or twisted to a 30 degree helix, or solid with no holes.
The sizes can be customized as your requirements.
Blank and polished can be chosen.
| ISO Code | Grade | Density (g/cm3) | Hardness (HRA) | TRS Mpa | Applications recommended |
| K05 | YG6X | 14.8-14.9 | 91-92 | >=2080 | Wear resistance Machining metals, woods |
| K10 | YG6A | 14.8-14.9 | 91.5-92.5 | >=2180 | |
| K20 | YG6 | 14.8-14.9 | 90.5-91.5 | >=2280 | |
| K30 | YG8 | 14.75-14.85 | 90-91 | >=2380 | |
| YN8 | 14.7-14.8 | 90-91 | >=2300 | Corrosion resistance Wear resistance | |
| K40 | YG15 | 14.0-14.2 | 86-87.5 | >=2780 | Wear resistance Strong impact |
| MG1 | 5.0-6.0 | 91.5-92.5 | >=800 | Corrosion resistance Wear resistance | |
| MG2 | 9.0-10 | 88.5-89.5 | >=1000 | ||
| MG3 | 12-13 | 90-91 | >=1200 |
YL10.2 OD18.765*278.1mm tungsten carbide punching rods
Products description
1. Grade: YL10.2,YG10X,YG12X,YG15,YG20,YG10,YG8,YG8 etc.
2. diameter from 0.3mm~100mm,
3. length from 10mm~1000mm
4. tolerance for diameter (.-0.05~+0.05),tolerance for length (0~+0.2mm).
5. also can make angles of tips are 30º,60º,90º
