Sliding Glass Door Opener/Sliding Door Operator/Auto Sliding Door 2X200kgs Capacity

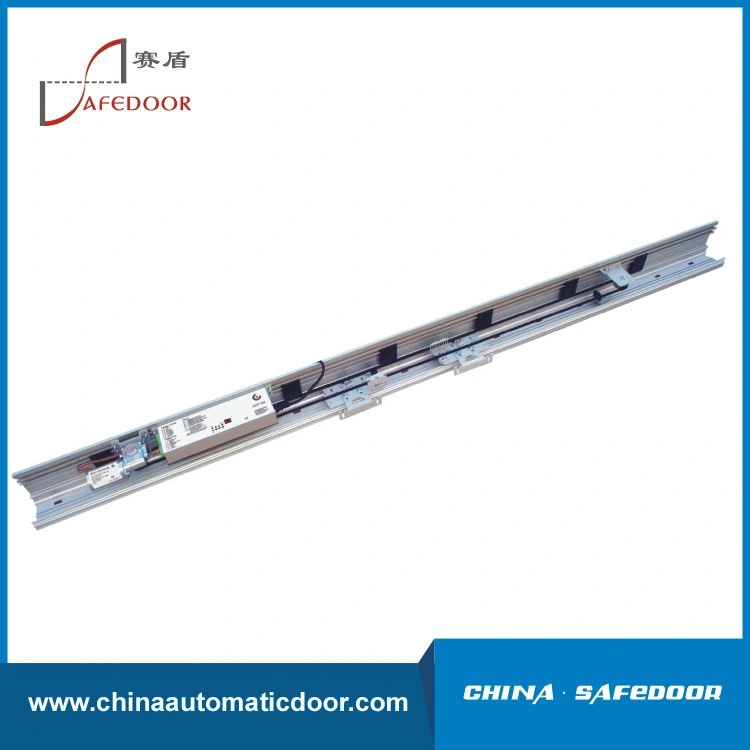

The Art.1071.103 is designed with double suspended guide track, making it easy to assemble and free to knock down. It is convenient to maintain and easy to debug, really suitable for heavy duty sliding door. Five status including permanent open, lock, partial open, exit only and auto are supported.Advantages: 1- Heavy duty

Featured Products

The Art.1071.103 is designed with double suspended guide track, making it easy to assemble and free to knock down. It is convenient to maintain and easy to debug, really suitable for heavy duty sliding door. Five status including permanent open, lock, partial open, exit only and auto are supported.
Sliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs Capacity

Advantages:


1- Heavy duty bi- partingfor 2x200kgs
2- Stronger German style aluminum track and longer lifetime carriage wheels
3- Drop proof carriage wheels, prevent the doors from dropping from the track
4- No need to set the buffer distance, all set by microprocessor during the self-test
5- Digital display screen, let debugging to be easy

Sliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs Capacity

Sliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs CapacitySliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs Capacity
 Art. No.1071.103
door typesingledual
max weight220 kgs2x200kgs
door width700-2000mm600-1800mm
powerAC 220V±10%, 110V±10%, 50-60Hz
opening speed100-450mm/s (adjustable)
closing speed100-430mm/s (adjustable)
hold open time0-8s (adjustable)
manual force<25N( power failure)
motor24VDC
power75W
protectionIP20
ambient temperature-20C- +50C

Sliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs Capacity
Sliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs CapacitySliding Glass Door Opener/ Sliding Door Operator/ Automatic Sliding Door 2X200kgs Capacity
