Product Description
Advantages:
1.high speed and high precision
2.long service lifetime
3.lowest noise and good performance

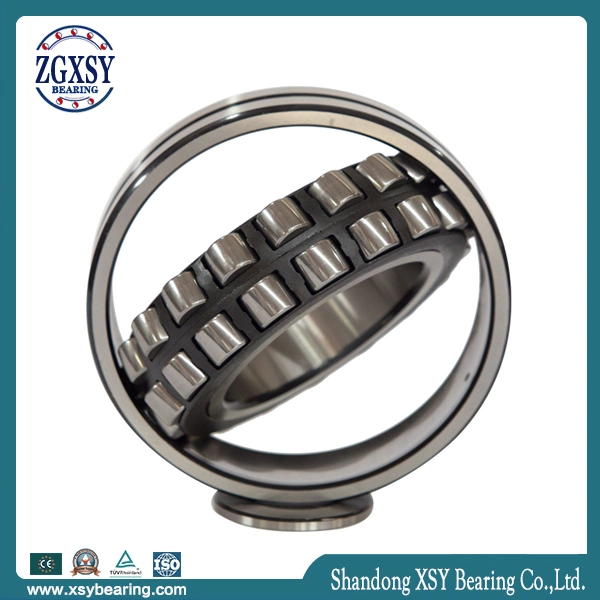

Spherical roller bearings are bearings with two inner ring raceways, spherical outer ring raceway and spherical rollers. The outer ring raceway center is consistent with the bearing center, so it has a self-aligning property to automatically adjust the error due to the installation of shaft and bearing housing or eccentricty caused by deflection. The bearing can still work when the relative tilt angle between inner and outer ring center line is less than 1~2.5. They can bear both radial load and axial load, especially for heavy duty and shock loads.
| Designation | Principal Dimension | (kN) | (r/min) | Mass | |||||
| Basic Load Ratings | Speed ratings | ||||||||
| d | D | B | r | Dynamic | Static | Grease | Oil | kg | |
| min | |||||||||
| 23032 | 160 | 240 | 60 | 2.1 | 376 | 730 | 1500 | 1900 | 13.5 |
| 24032CA | 160 | 240 | 80 | 2.1 | 636 | 1164 | 1100 | 1500 | 12.9 |
| 24132CA | 160 | 270 | 109 | 2.1 | 1010 | 1700 | 700 | 900 | 25.4 |
| 22232K | 160 | 290 | 80 | 3 | 805 | 660 | 1500 | 1900 | 23.5 |
| 22232/W33 | 160 | 290 | 80 | 3 | 658 | 1074 | 1350 | 1700 | 22.1 |
| 22332 | 160 | 340 | 114 | 4 | 1170 | 1730 | 800 | 1000 | 50.3 |
| 23034 | 170 | 260 | 67 | 2.1 | 450 | 900 | 1400 | 1800 | 14.7 |
| 23034K/W33 | 170 | 260 | 67 | 2.1 | 450 | 900 | 1400 | 1800 | 14.6 |
| 23034CA | 170 | 260 | 67 | 2.1 | 615 | 580 | 1600 | 2000 | 14.2 |
| 24034CA/W33 | 170 | 260 | 90 | 2.1 | 810 | 820 | 1000 | 1400 | 17.8 |
| 23134 | 170 | 280 | 88 | 2.1 | 875 | 805 | 1200 | 1600 | 23 |
| 23134K/W33 | 170 | 280 | 109 | 2.1 | 1050 | 1020 | 670 | 850 | 24.8 |
| 22234 | 170 | 310 | 86 | 4 | 730 | 1230 | 1100 | 1500 | 27.6 |
| 23234CA | 170 | 310 | 110 | 4 | 1160 | 1835 | 950 | 1300 | 37.1 |
| 22234CA | 170 | 310 | 86 | 4 | 970 | 820 | 1300 | 1700 | 26.8 |
| 22334K | 170 | 360 | 120 | 4 | 1200 | 2010 | 850 | 1200 | 59.8 |
| 23036 | 180 | 280 | 74 | 2.1 | 550 | 1100 | 1300 | 1600 | 19.5 |
| 23036K/W33 | 180 | 280 | 74 | 2.1 | 550 | 1100 | 1300 | 1600 | 19.3 |
| 24036 | 180 | 280 | 100 | 2.1 | 930 | 1510 | 850 | 1200 | 22.5 |
| 23136 | 180 | 300 | 96 | 3 | 700 | 1340 | 990 | 1400 | 27.1 |
| 23136N | 180 | 300 | 96 | 3 | 700 | 1340 | 990 | 1400 | 26.4 |
| 24136CA/W33 | 180 | 300 | 118 | 3 | 1170 | 1130 | 630 | 800 | 33 |
| 22236 | 180 | 320 | 86 | 4 | 750 | 1300 | 1200 | 1500 | 28.6 |
| 23236CA | 180 | 320 | 112 | 4 | 1250 | 2060 | 900 | 1200 | 39.6 |
| 22236CA/W33 | 180 | 320 | 86 | 4 | 1030 | 880 | 1300 | 1700 | 29.4 |
| 22336 | 180 | 380 | 126 | 4 | 1430 | 2210 | 800 | 1100 | 80.7 |
| 2638 | 190 | 280 | 67 | 2.5 | 542 | 978 | 1200 | 1500 | 13.7 |
| 23038K | 190 | 290 | 75 | 2.1 | 626 | 1100 | 1200 | 1500 | 20.5 |
| 23038CA | 190 | 290 | 75 | 2.1 | 765 | 735 | 1300 | 1700 | 16.9 |
| 24038CA | 190 | 290 | 100 | 2.1 | 980 | 1000 | 950 | 1300 | 22.8 |
| 22238CAK | 190 | 340 | 92 | 4 | 1070 | 1650 | 1200 | 1600 | 36 |
| 23238CA | 190 | 340 | 120 | 4 | 1410 | 2300 | 850 | 1100 | 51 |
| 22338 | 190 | 400 | 132 | 5 | 1400 | 2440 | 760 | 1000 | 80.6 |
| 23040 | 200 | 310 | 82 | 2.1 | 655 | 1170 | 1100 | 1400 | 26.2 |
| 24040CA | 200 | 310 | 109 | 2.1 | 1130 | 1170 | 900 | 1200 | 31.3 |
| 23140 | 200 | 340 | 112 | 3 | 930 | 1830 | 850 | 1200 | 50.9 |
| 24040CA | 200 | 340 | 112 | 3 | 1350 | 1260 | 950 | 1300 | 43.6 |
| 24140CK30 | 200 | 340 | 140 | 3 | 1530 | 2700 | 560 | 700 | 52 |
| 22240 | 200 | 360 | 98 | 4 | 940 | 1630 | 1000 | 1400 | 44.7 |
| 22240CA/W33 | 200 | 360 | 98 | 4 | 1270 | 1110 | 1100 | 1500 | 44.5 |
| 22340K | 200 | 420 | 138 | 5 | 1880 | 1620 | 850 | 1100 | 96 |
| 22340 | 200 | 420 | 138 | 5 | 1880 | 1620 | 850 | 1100 | 96 |
| 2644 | 220 | 320 | 76 | 3 | 758 | 1280 | 1000 | 1300 | 21.6 |
| 23044 | 220 | 340 | 90 | 3 | 960 | 990 | 1100 | 1500 | 28.8 |
| 23044CA | 220 | 340 | 118 | 3 | 1070 | 1040 | 1100 | 1500 | 32 |
| 24044CA | 220 | 340 | 118 | 3 | 1320 | 1370 | 850 | 1100 | 39 |
| 23144 | 220 | 370 | 120 | 4 | 1330 | 1330 | 900 | 1200 | 54.8 |
| 23144CA | 220 | 370 | 120 | 4 | 1570 | 1520 | 900 | 1200 | 54.7 |
| 23144K | 220 | 370 | 120 | 4 | 1330 | 1330 | 900 | 1200 | 54.8 |
| 22244 | 220 | 400 | 108 | 4 | 1200 | 2100 | 850 | 1200 | 57.6 |
| 23244 | 220 | 400 | 144 | 4 | 1800 | 2820 | 670 | 850 | 94.6 |
| 22344/W33 | 220 | 460 | 145 | 5 | 1700 | 3090 | 670 | 850 | 129 |
| 23948CA | 240 | 320 | 60 | 2.1 | 635 | 710 | 1300 | 1700 | 14.9 |
| 23048 | 240 | 360 | 92 | 3 | 820 | 1800 | 900 | 1200 | 37.6 |
| 23048K/W33 | 240 | 360 | 92 | 3 | 820 | 1800 | 900 | 1200 | 37.4 |
| 23148 | 240 | 400 | 128 | 4 | 1200 | 2560 | 760 | 990 | 77.2 |
| 24148/W33 | 240 | 400 | 160 | 4 | 1200 | 3300 | 430 | 540 | 81.6 |
| 24148CAK30/W33 | 240 | 400 | 160 | 4 | 2020 | 2040 | 480 | 600 | 77.8 |
| 22248 | 240 | 440 | 120 | 4 | 1490 | 2370 | 800 | 1000 | 85 |
| 23248 | 240 | 440 | 160 | 4 | 2200 | 3460 | 600 | 760 | 128 |
| 22348K | 240 | 500 | 155 | 5 | 1780 | 3140 | 600 | 760 | 154 |
| 22348K/W33 | 240 | 500 | 155 | 5 | 1780 | 3140 | 600 | 760 | 153 |
| 2650 | 250 | 365 | 87 | 3 | 950 | 1650 | 880 | 1100 | 32.2 |
| 23052K | 260 | 400 | 104 | 4 | 1000 | 2180 | 810 | 1080 | 51.5 |
| 24052CA | 260 | 400 | 1400 | 4 | 1780 | 1910 | 700 | 900 | 66.7 |
| 24052CAK/W33 | 260 | 400 | 140 | 4 | 1780 | 1910 | 700 | 900 | 65.2 |
| 23152 | 260 | 440 | 144 | 4 | 1950 | 2010 | 800 | 1000 | 92.8 |
| 23252CA/W33 | 260 | 480 | 174 | 5 | 2780 | 2660 | 630 | 800 | 147 |
| 22352 | 260 | 540 | 165 | 6 | 2840 | 2550 | 630 | 800 | 191.3 |
| 23056K | 280 | 420 | 106 | 4 | 1100 | 2380 | 760 | 950 | 62 |
| 24056CA | 280 | 420 | 140 | 4 | 2140 | 2410 | 670 | 850 | 69.2 |
| 23156CA | 280 | 460 | 146 | 5 | 2300 | 2310 | 750 | 950 | 105 |
| 23156 | 280 | 460 | 146 | 5 | 1790 | 3300 | 670 | 850 | 95.5 |
| 22236CA/W33 | 280 | 500 | 130 | 5 | 2020 | 1800 | 750 | 950 | 118 |
| 23256 | 280 | 500 | 176 | 5 | 2470 | 4550 | 540 | 670 | 153 |
| 23256CA | 280 | 500 | 176 | 5 | 2970 | 2910 | 600 | 750 | 147 |
| 22356 | 280 | 580 | 175 | 6 | 2680 | 4490 | 540 | 670 | 238 |
| 22356K/W33 | 280 | 580 | 175 | 6 | 2680 | 4490 | 540 | 670 | 238 |
| 23960CA/W33 | 300 | 420 | 90 | 3 | 1190 | 1320 | 950 | 1300 | 40.5 |
| 23060 | 300 | 460 | 118 | 4 | 1430 | 2740 | 720 | 900 | 75.2 |
| 24060CA/W33 | 300 | 460 | 160 | 4 | 2280 | 4600 | 540 | 670 | 101 |
| 23060CA/W33 | 300 | 460 | 118 | 4 | 1830 | 1880 | 800 | 1000 | 71.5 |
| 23160 | 300 | 500 | 160 | 5 | 2180 | 4030 | 600 | 760 | 134 |
| 24160CA/W33 | 300 | 500 | 200 | 5 | 3180 | 6100 | 324 | 400 | 159 |
| 22260CA | 300 | 540 | 140 | 5 | 2620 | 2380 | 750 | 950 | 136 |
| 23260CA/W33 | 300 | 540 | 192 | 5 | 3300 | 3250 | 530 | 670 | 190 |
| 22260 | 300 | 540 | 140 | 5 | 2070 | 3250 | 670 | 850 | 143 |
Application
1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Metallurgy
6. Papermaking
7. Textile
8. Petroleum
Testing
Our bearings are strictly tested before delivery.
Packing & Delievery
Packing
1. tubes+cartons+pallets
2. industrial packing+cartons+pallets
3. single box packing+cartons+pallets
Delievery
Less than 1000PCS, deliver within 5 days by Express or Airplane.
More than 1000PCS, deliver within 15 days by sea.
