Single screw extruder can be used for HDPE, LDPE, PVC, ABS, PC, PS PPR pipes, profiles, sheets, melt nonwoven fabric extruding after conmbined use with the relative auxiliary machines.
Also it can be used for the waste plastic pelletizing.
Single screw extruder can purchase manual control and PLC automatic control.
Single screw extruder will purchase different kinds of screw designs according to different raw material. It has the characters of low noise, high output, steady performance and long life span.
Technology information:
For high speed pipe extrusion:
Model | Screw Diameter | L/D Ratio | Driving Power | Center Height | Output |
BMD-45/33 | 45mm | 33:1 | 37kw | 1000mm | 150kg/hour |
BMD-65/33 | 65mm | 75kw | 1000mm | 300 kg/hour | |
BMD-75/33 | 75mm | 110kw | 1100mm | 450 kg/hour | |
BMD-90/33 | 90mm | 185kw | 1100mm | 600 kg/hour |
For profile, pipe extrusion:
Model | Screw Diameter | L/D Ratio | Driving Power | Center Height | Output |
BMD-35/25 | 35mm | 25:1 28:1 | 5.5kw | 1000mm | 12kg/hour |
BMD-45/25/28 | 45mm | 11kw | 1000mm | 30 kg/hour | |
BMD-50/25/28 | 50mm | 15kw | 1000mm | 40 kg/hour | |
BMD-65/25/28 | 65mm | 22kw | 1000mm | 60 kg/hour | |
BMD-75/25/28 | 75mm | 45kw | 1000mm | 120 kg/hour | |
BMD-90/25/28 | 90mm | 55kw | 1000mm | 120 kg/hour | |
BMD-110/25/28 | 110mm | 75kw | 1000mm | 140kg/hour | |
BMD-120/25/28 | 120mm | 90kw | 1000mm | 240kg/hour | |
BMD-150/25/28 | 150mm | 132kw | 1000mm | 350kg/hour |
For sheet extrusion:
Model | Screw Diameter | L/D Ratio | Driving Power | Screw Speed | Output |
BMD-45 | 45mm | 35:1 38:1 | 15-22kw | 120 rpm | 15-45kg/hour |
BMD-65 | 65mm | 30-45kw | 120 rpm | 60-120kg/hour | |
BMD-75 | 75mm | 37-55kw | 100 rpm | 80-150kg/hour | |
BMD-90 | 90mm | 55-90kw | 90 rpm | 150-280 kg/hour | |
BMD-100 | 100mm | 75-110kw | 90 rpm | 180-350 kg/hour | |
BMD-120 | 120mm | 132-185kw | 90 rpm | 250-450 kg/hour | |
BMD-150 | 150mm | 185-315kw | 80 rpm | 400-600kg/hour | |
BMD-180 | 180mm | 220-355kw | 80 rpm | 550-700kg/hour |

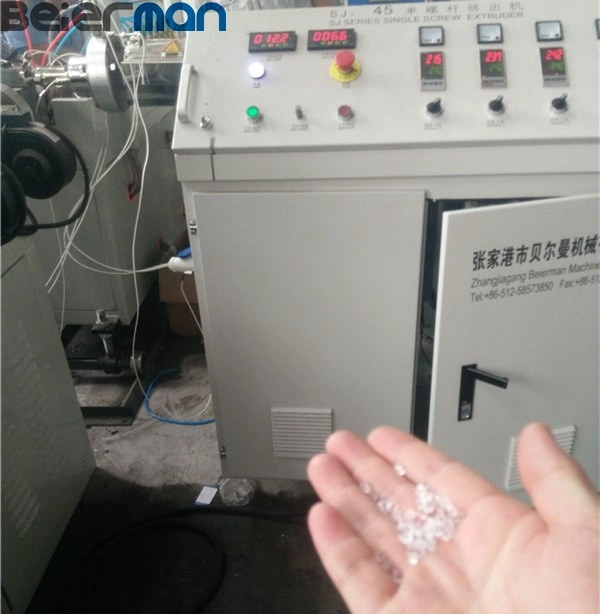

Single screw extruder photos
Our company
Zhangjiagang Beierman Machinery CO.,LTD.is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantage technology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.
