Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoists

Product Description:1.Construction hoist could be designed according to different building situations. 2. With ISO9001, CE, SGS, certifications3. Double or Single cage with loading capacity from1000kg to 2000kg. 4. With Frequency converter or DOL control system with low speed, MID speed, and high speed.5

Featured Products

Product Description:
1.Construction hoist could be designed according to different building situations
2. With ISO9001, CE, SGS, certifications
3. Double or Single cage with loading capacity from1000kg to 2000kg.
4. With Frequency converter or DOL control system with low speed, MID speed, and high speed.
5. All Production Line adopt special fixtures, mold, gauge made by us to ensure all sizes suitably.
6. Select high-quality raw material from China Bao Steel Group. The spare parts of motors, reducers, gearbox, safety device with low noise, while electrics parts of Schneider or Germany brand has reliable quality.
7. The compact and reasonable structure with the special design is easy for installation and adjustment.
8. Each piece of equipment will be tested and made records in Factory and all details will be adjusted such as motor brake, safety device operation, all limit switch operation, dropping test, loading test, and mast section.
9.The erection test will ensure the completed equipment runs well when taken into use.


CharacteristicModelRated LoadingLifting SpeedMotor Power
Double cagesSC200/2002x2000kg33m/min2x(3x11kw) / 2x(3x8.5kw)
SC150/1502x1500kg33m/min2x(2x13kw)
SC100/1002x1000kg33m/min2x(2x11kw)
Single cageSC2002000kg33m/min3x11kw /3x8.5kw
SC1501500kg33m/min2x13kw
SC1001000kg33m/min2x11kw
Double cagesLow speedSC200/200D2X2000kg0-40m/min2x(3x11kw)/2x(3x8.5kw)
SC100/100D2x1000kg0-40m/min2x(2x13kw)
Mid speedSC200/200Z2x2000kg0-60m/min2x(2x23kw)
SC100/100Z2x1000kg0-60m/min2x(2x15kw)
Single cageLow speedSC2002000kg0-40m/min3x11kw /3x8.5kw
SC1001000kg0-40m/min2x13kw
Mid speedSC2002000kg0-60m/min2x23kw
SC1001000kg0-60m/min2x15kw

Details Specification

ItemConstruction hoist
ModelSC100/100/SC200/200
Rated capacity/per cage1000kg-2000kg
Lifting speed0-63m/min,0-42m/min,0-33m/min
Cage size3.2*1.5*2.4m
Motor power3*15kw/3*11/2*15/3*18.5
Speed ratio1:18 /1:16
Invertor Power45 kW/37kw
Safety deviceSAJ40-1.2/SAJ40-1.4/SAJ30-1.2
Mast section size0.65*0.65*1.508m
Max. Installation height300m
Cable typeCable basket/cable trolley


WHY CHOOSE US?
Fuzhou GuangYiTong Machinery Co., Ltd. is a professional manufacturer and exporter.
Our products are construction hoist, suspension platform, We can do OEM for Our customers.
1. 10 years more manufacturing experience and 3 Years exporting experience.
2. Great technician Team with innovation and improvement abilities
3. Zero accident record and good feedback from the end-users.
4. Best price offered with special discount, high quality, and stable operation experience.
5. Fast response with sales and after-sale service
6. Welcome agents or distributors all over the world for cooperation partnership.


Detailed photos

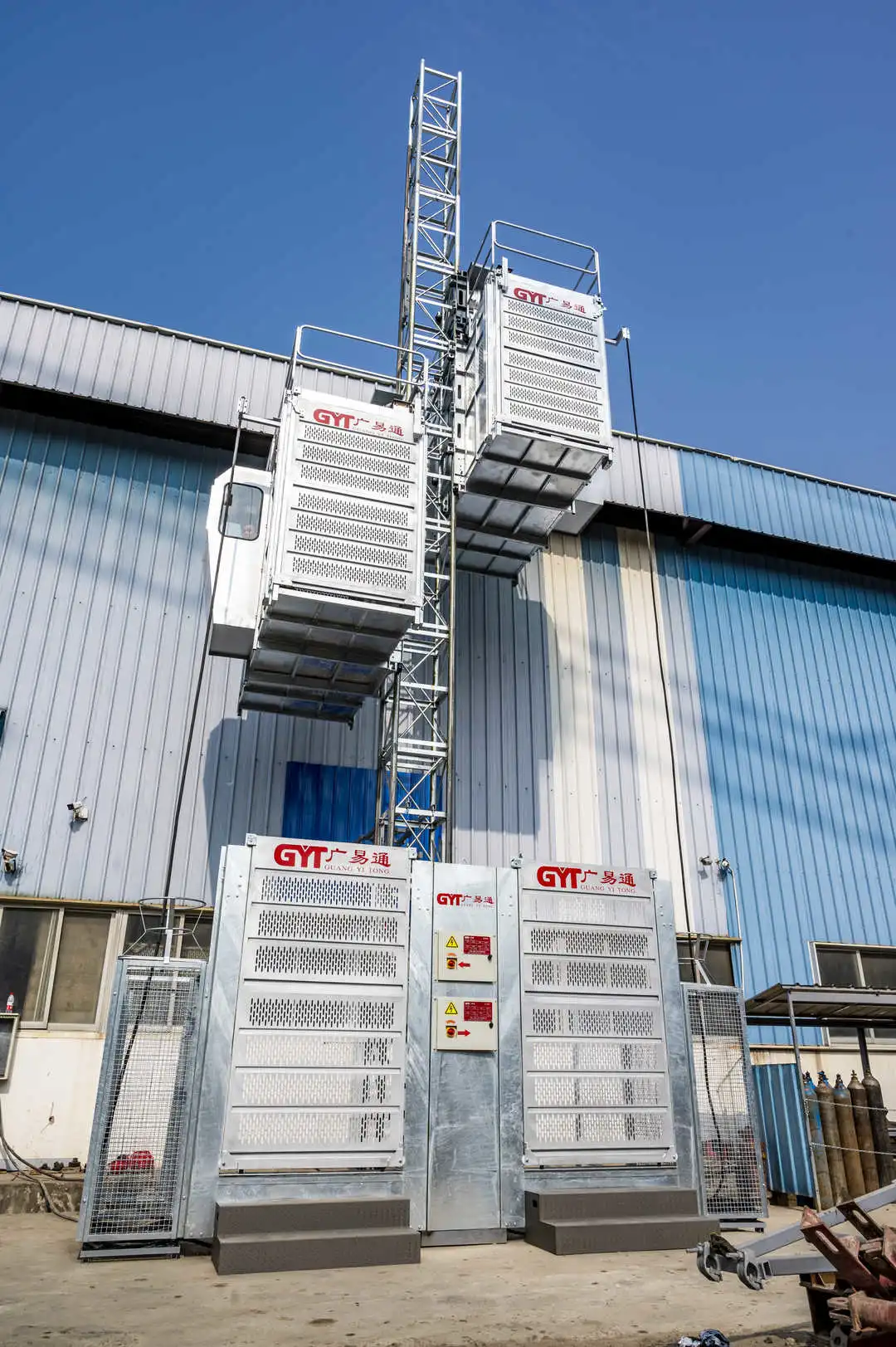

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
1, Convenient console is equipped with a safety switch, which can only be operated by a specially assigned person.
2, The skylight window is equipped with international brands, Honeywell switch.
3, High power fan in the operation room is widely used for heat dissipation in different regions.
4, The humanized skylight window using air compression spring is easy to be opened and closed. Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
  1. Mast Section (Mid-frames are fully bent)
  2. The operation room is humanized designed with complete functions, comfortable and durable to be operated.
  3. The external electric control box has a clear indication signal, which is easy for operation and highly safe for performance.
  4. Integrated energy feedback system.

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
  1. International brands such as Schneider are chosen to be used in the limit switch.
  2. The electric box is equipped with a Schneider contactor, switch, and related accessories.
  3. After welding, the cage is sprayed with anti-rust paint, which is corrosion-resistant and not easy to rust, thus prolonging its service life.
  4. The whole fence is galvanized to prevent rust and to keep durable.
Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
  1. The main beam is finely machined with Q345 steel plates of a thickness of 8 mm and a  width of 160 mm.
  2. CNC fine processing of integrated welding is used for the elevator drive frame, which can reduce noise and vibration.
  3. The helical gear reducer is compact structured, energy-saving to 40%, and easy to maintain, the efficiency of which generally reaches 95%.
  4. The Safety panel assembly is easy to install, while the Limiter is quick and safe.


Company Profile
                                             ABOUT US


Guangyitong Heavy Industry Machinery Co., Ltd is located in the national pilot Free Trade Zone in Fuzhou, China. It is a comprehensive company, integrating design, production, sales, and leasing. As a professional manufacturer of construction elevators for more than 20 years, it covers an area of nearly 20000 square meters. The production workshops cover 19, 980 square meters. The company has more than 80 employees, 28 engineering technical personnel, including 15 technicians with intermediate and senior titles. The company′s product quality is stable, cost-effective, applicability, high-quality after-sales service, has won a wide range of reputation and has become one high-quality supplier of many well-known construction companies such as MCC, CRCC, CREC, CSCEC in China and some companies in South America, South Asia, and Europ. In the new coming journey, our company will take "creating high-quality machinery, creating a great enterprise brand "as our goal, advocating the culture of quality management in the whole process of production line of high-quality machinery. We are looking forward to your sincere cooperation to create a new starting point of wealth.

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist

 Production workshop

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist


Project examples:

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist

 Customer visits and feedback

Sc200/200 Double Cage Rack and Pinion Alimak Construction Hoist
FAQ:


1. What are your main products?
We produce all kinds of Construction Elevator Passenger materials hoist from 500kg load to 3200kg load (also called construction elevator, construction lift) and spare parts of it.

2. Are all Construction Elevator the same from all Vendors & Manufacturers?
Our High rise building Construction Elevator Passenger materials hoist with VFD for lifting materials and passengers have been exported to Europe, the Middle, and Southern America, most of Asia, and some countries from Africa, about 50 countries. We can well match European standards, Russian standards, and American standards. We have the technology for developing new design ability and we support many customers with good solutions to solve their construction site special vertical access problems.

3. Do your products have some certificates?
Yes. Our building Construction Elevator Passenger materials hoist have passed CE, ISO, SGS Certificates.

4. What are the payment terms and the delivery time?
Payment terms for building Construction Elevator Passenger materials hoist are T/T and LC. We will ship the cargo within 20-30 days after receiving the 30% deposit.

5. Are you a manufacturer or a trader?
We are a manufacturer of building Construction Elevator Passenger materials hoist with 10 years maker experience, have an advanced production line and inspection device. Our Research and development team has got a lot of praise from customers.

6. Will you develop a distributor and sole agent?
Yes, should you have any interest to be our building Construction Elevator Passenger materials hoist distributor and agent, please let us know in anyways. The sole agent is available depending on sales turnover.

7. Where do you ship to and what countries have you done business in?
We provide quick and efficient shipping of building Construction Elevator Passenger materials hoist to countries all over the world from Fuzhou port.
We have done the business of building Construction Elevator Passenger materials hoist with customers in many countries, such as Mexico, Brazil, Korea, Malaysia, Thailand, India, Vietnam, Indonesia, UAE, Qatar, Kuwait, Saudi Arabia, etc.

8.Quotation request:
If you are interested in our building Construction Elevator Passenger materials hoist, please provide the following parameters:
1) Lift height (m)
2) Load capacity (ton)
3) Double cage or single cage
4) Mast tower coat: Painting spray or hot galvanized?
5) Using temperature
6) Local power supply (V, Hz)
7) Is there any space-limited for your construction site? If yes, give us a brief drawing to show the space plz
8) Other special equipment.
9) FOB or CIF price? If CIF, plz let us know your destination port.

We will provide the best price for building the Construction Elevator Passenger materials hoist once confirmed the above. You can get our feedback within 12 hours!
