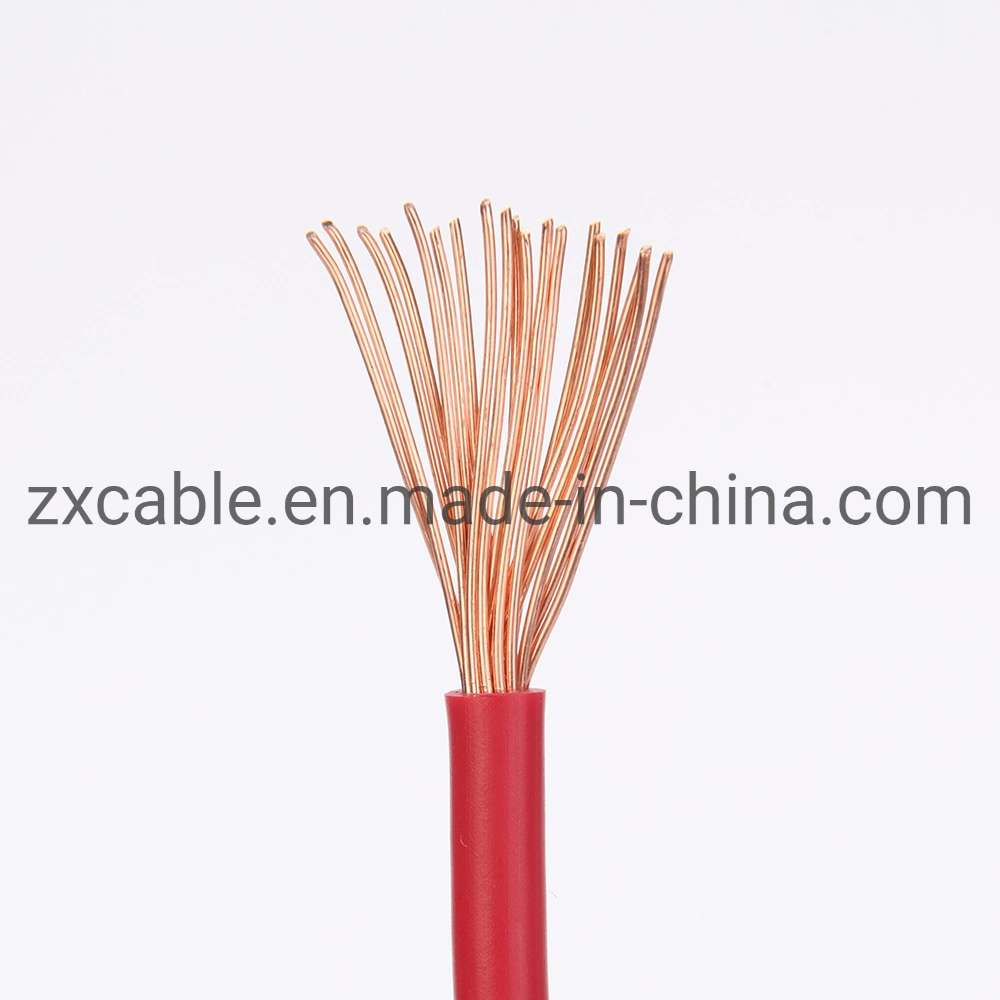

PVC/PE/Nylon insulated wires and connecting wires for home and office use

Products model: BVR/BV wire cable 1, multiores pure copper conductor2. Pvc insulated, with or without steel armor, pvc shielded3. High quality, ISO 9001, CCC, CE, ROHS certified4. OEM is available.1. StandardCables will be produced as per Chinese National Standard GB/T12706.2-12706.3 equivalent to IEC 605022. Applicati

Featured Products

Products model:
 BVR/BV wire cable
1, multiores pure copper conductor
2. Pvc insulated, with or without steel armor, pvc shielded
3. High quality, ISO 9001, CCC, CE, ROHS certified
4. OEM is available.
1. Standard
Cables will be produced as per Chinese National Standard GB/T12706.2-12706.3 equivalent to IEC 60502
2. Application
This product is suitable for using in rated voltage from 6/6kV to 26/35kV system transmission and distribution lines. Based on different sheath structures, it can be used for laying in the air and underground.
3. Description and Installation Place
All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV
Code
 Designation
 by  IEC

Code
Designation
 by GB

Rated Voltage

Name

Application

      Rated  Temperature

60227 IEC 01

BV

300/500V

Copper conductor PVC insulated rigid cable (electrical wire)

Fixed laid indoors
Instrument etc.


0°C to +70°C

60227 IEC 05

BV

450/750V



BLV

450/750V

Aluminum conductor PVC insulated rigid cable (electrical wire)



BVR

450/750V

Copper conductor PVC insulated semi-flexible cable (electrical wire)

Be for laying permanent place where flexible required.



0°C to +70°C

60227 IEC10

BVV

300/500V

Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire)

Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.



0°C to +70°C




BLVV


300/500V


Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)



BVVB

300/500V


Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)



BLVVB

300/500V


Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)

60227 IEC 02

RV

450/750V


Copper conductor PVC insulated flexible connector cable (electrical wire)

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required



0°C to +70°C

60227 IEC 06

RV

300/500V

60227 IEC 42

RVB

300/300V

Copper conductor PVC insulated flat flexible connector cable (electrical wire)



RVS

300/300V


Copper conductor PVC insulated flexible twisting connector cable (electrical wire)

60227 IEC 52



RVV


300/300V


Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)

60227 IEC 53

RVV

300/500V

DescriptionInstallation Place

XLPE Insulated, PVC Sheathed Power CableLaid in indoor, outdoor, tunnels, cable canals, reinforced concrete pipelines and loose soil. Cable should not bear outer mechanic force, but can bear a certain tractional force.
XLPE Insulated, Steel Tape Armored and PVC Sheathed Power Cable.Laid underground. Cable can bear outer mechanic force, but should not bear large tractional force.
XLPE Insulated ,fine Steel Wire Armored and PVC Sheathed Power CableLaid in indoor, tunnels and mines. Cable can bear outer mechanic force and fairly large tractional force.
XLPE Insulated, thick Steel Wire Armored and PVC Sheathed Power Cable.Laid in vertical section, indoor, tunnels and mines. Cable can bear outer mechanic force and very large tractional force.

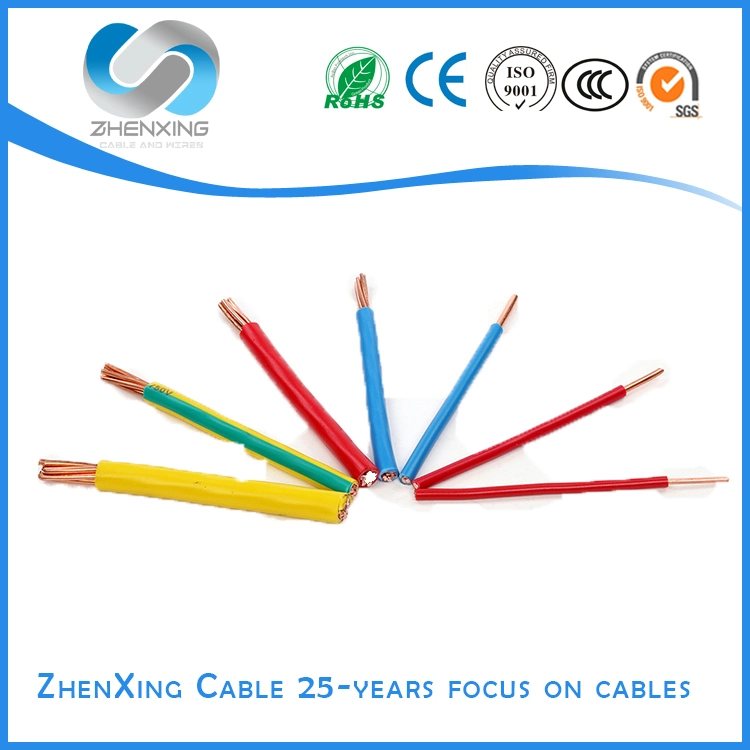

Copper Conductor BV/BVR Type Green Yellow Ground Cable

BV & BVR Application
1. Use as home appliance wiring cable, building wire
2. Use as electrical and electronic equipment internal connecting wire
3. Use as lighting wire
4. House wiring cable

TypeCross Section Area mm2Reference Application

BV
1.5Lighting equipment
2.5Lighting equipment, socket, high-power electrical appliance
4.0Air-conditioner, water heater

BV Cable
Nominal
sectional area
mm2
Conductor
No/Dia.
mm
Nominal
Insulated thick
mm
Max overall
Dia.
mm
Conductor
Resistance at 20
Min insulated
resistance at
70MΩ/km
Weight
Kg/km
CuAlCuAl
1.51/1.380.73.312.1-0.01119.2-
1.57/0.520.73.512.1-0.01020.6-
2.51/1.780.83.97.4111.80.01030.815.0
41/2.250.84.44.617.390.008545.521.0
61/2.760.84.93.084.910.007065.029.0
107/1.351.07.01.833.080.0065110.052.0
167/1.701.08.01.151.910.0050170.070.0
257/2.141.210.00.7271.200.0050270.0110.0
357/2.521.211.50.5240.8680.0040364.0150.0
5019/1.781.413.00.3870.6410.0045500.0200.0
7019/2.141.415.00.2680.4430.0035688.0269.0
9519/2.521.617.50.1930.3200.0035953.0360.0
12037/2.031.619.00.1530.2530.00321168.0449.0
15037/2.251.821.00.1240.2060.00321466.0551.0
18537/2.522.032.50.0990.1640.00321808.0668.0

PACKAGE
PVC/PE/Nylon Insulated Electrical Wire and Hook -up Wire for Home and Office
(1).Wooden drums for small cables.
(2).Iron-steel drum and stell drum for big cables
(3). Delievery: 10-50days
Packaging
Size1600 (L) * 1600 (W) * 900 (D) or as required according to customized length
Weight≤4 Ton



Packaging Details
The  packing is fumigated wooden Drums or wooden steel drums(Size: L*W*H).  with wood slab covering for protection

7.Shipment Time
Usually within 5-15 working days offer receiving the desposit.

8.Our Service

Pre-Sales Service

* Quick reply on Inquiries.
* professional technical consulting support,
* OEM/ODM
* Free sample available .

After-Sales Service

* online Training  on installation.
* 2 years product quality guarantee.


About our Company
Zhenxing Cable is the low voltage energy cable product company of Zhenxing Group which aims to be one of the leading manufacturer in its field.Production range includes low voltage copper and aluminium PVC/XLPE/HFFR power cables, armoured power cables, control cables, Lan cables, flat cables, fire cables, solar cables. Production plant set up in Zhejiang/China mainland center of the Yangtze River Delta Economic Circle.
Zhenxing Cables' every department processes strictly according to the regulations of ISO 9001:2008. Having obtained advanced technology machines, qualitied laboratoried, and the work force with konw-how, Zhenxing Cable is committed to provide its customers with quality products and the best service on time.
By continuing its investments and improving its production on a balanced basis. Zhenxing Cable aims to provide employment opportunities and reach a high level of customer satisfaction.
