  PVC HDPE LDPE PE Garbage EPS PET PP Nylon Plastic recycling granulate machine is mainly used for rigid or hard crushed material, like van, bottle, cap and so on. If matched with different die heads and auxiliary machines,it also can make plastic&nb

Featured Products



 PVC HDPE LDPE PE Garbage EPS PET PP Nylon Plastic recycling granulate machine is mainly used for rigid or hard crushed material, like van, bottle, cap and so on.

 If matched with different die heads and auxiliary machines,it also can make plastic production. There is several pelletizing way, such as water-ring pelletizing way; water-cooling pull strap pelletizing way(like noodles), wind-cooling rubs surface granulation way. Under-water granulation way.

Features: Well-proportioned, stable quality, high efficiency, high output, wide applicable range, long serving life.


Machine detail parameter

Item NO.Item nameQuantity Power
1Feeder1 set1.5kw
2Φ100/30 single screw extruder1 set55kw
3Hydraulic screen changer system1 set1.5kw
4Horizontal water-ring system1 set1.5kw
5Centrifugal dryer1 set3kw
6Electrical control box1 set_


The advantages of this machine

1. Highly efficent: the machine is automatic and with less power consumption.
2. Special screw design: We will design the screw up to customer different material and the material of screw and barrel can be 38CrMoAL or bimetallic.
3. High capacity: the capacity of the machine is about 300kg/h
4. Material come out more stably: material go through from the first stage to the second stage, with two screen changer, much more impurity will be filterd and the material come out from the die won't broken down.
5. Beautiful pellets: two degassing system, no air in the pellets.
6. The machine wih long life.


More machine photoes
Feeders, two feeders for different material, material can be feed at each speed

PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
Feeder on the machine to feed rigid PP/PE into the machine
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine

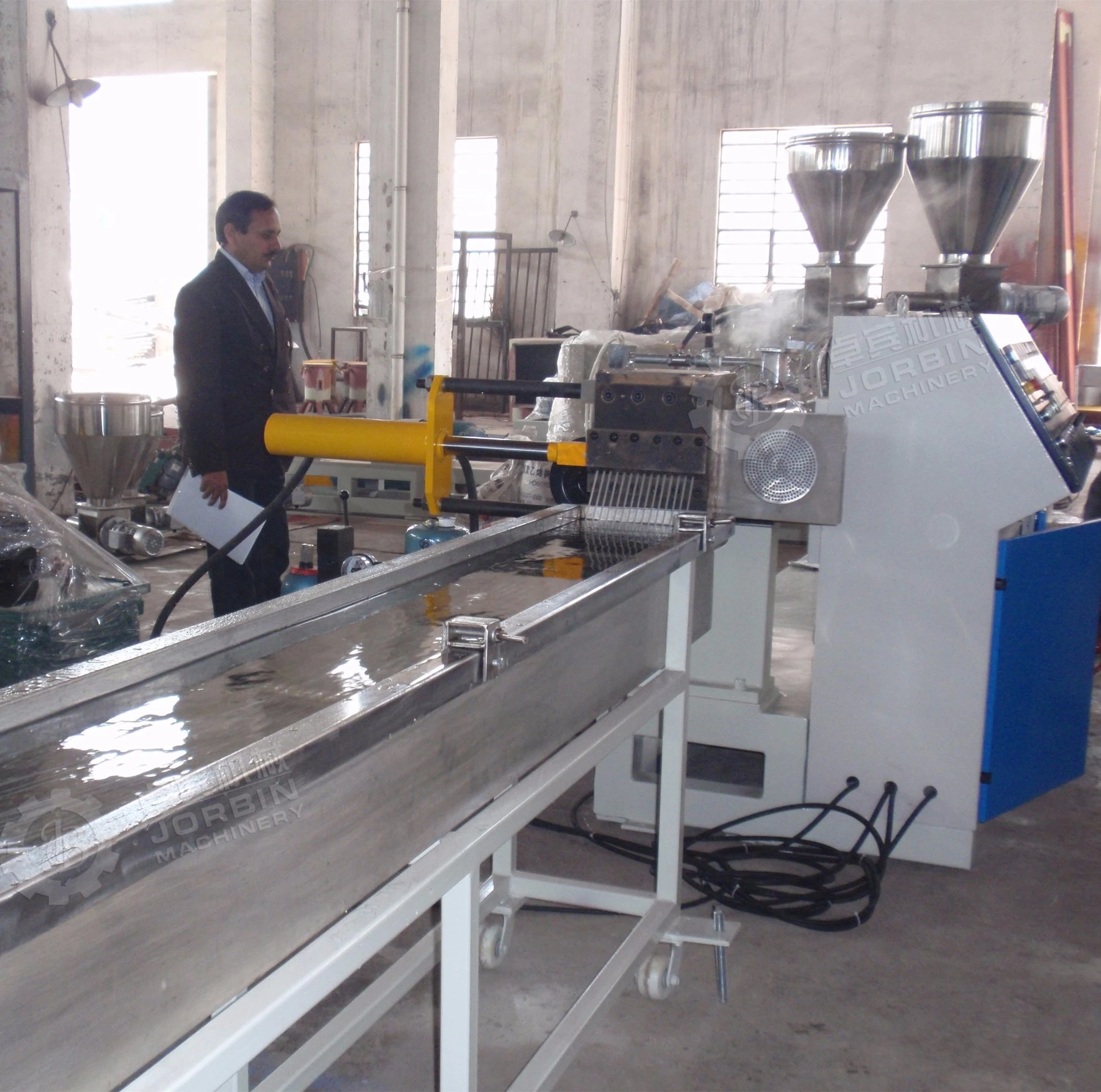

Machine with pull strap pelletizing way, if you like horizontal water-ring die face, vertical water-ring die face pelletizing way, wind-cooling pelletizing way, different material the pelletizing way is different.
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
Gale dryer to blow water on the pelletizing
Pelletizer, cutt the material into the pelles, it is controlled by inverter, you can adjust the speed so that the pellets can be different size.
Portal shaped type pelletizer,horniness alloy rotary cutter
capacity:300kg/hr
motor power:4KW
Cutter diameter:200mm

Blade width:1 300mm
Traction speed :30-90m/min
No. of cutter gears: 32
Max number of lines: less than 60

Pelletizer, hard alloy cutter, frequence
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate MachinePVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
Extruder machine line
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
Vacuum degassing and hydraulic station
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
Finall pellets come out from the pelletizer
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
If you need more photoes or viedo of this machine, kindly contact me.


PVC HDPE LDPE PE Garbage EPS Pet PP Nylon Plastic Recycling Granulate Machine
1. We supply below necessary documents with the machine:

  1. Machine layout
  2. Electricity diagram
  3. Machine certificate
  4. General manual book/maintenance book

2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.

3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.

4.
We trust that our quotation meets with your requirements and we will gladly furnish you with further information.


5. 24Hours service :  Cell+86-13915707468
