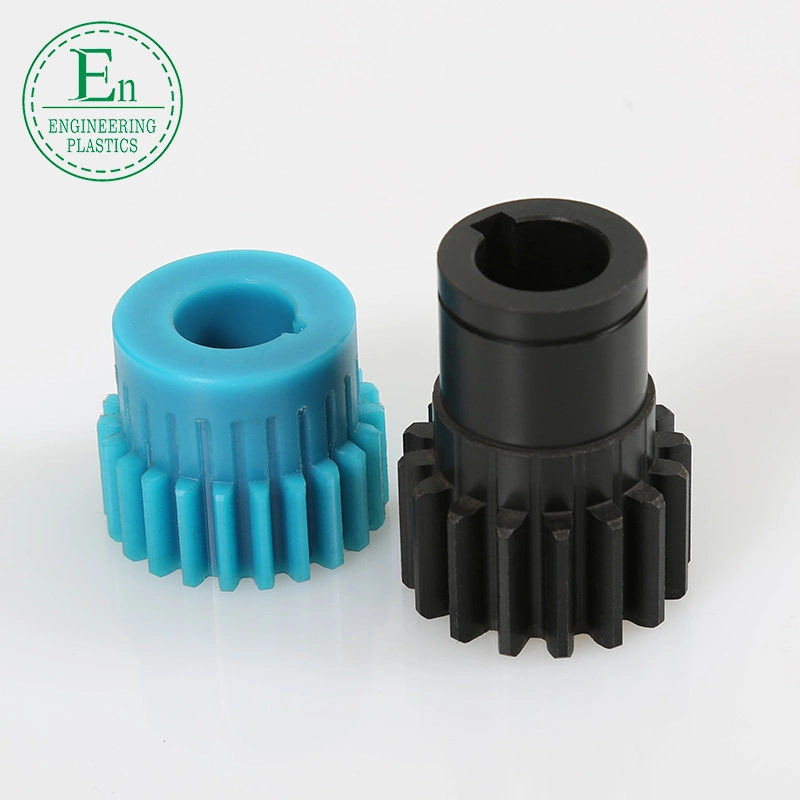

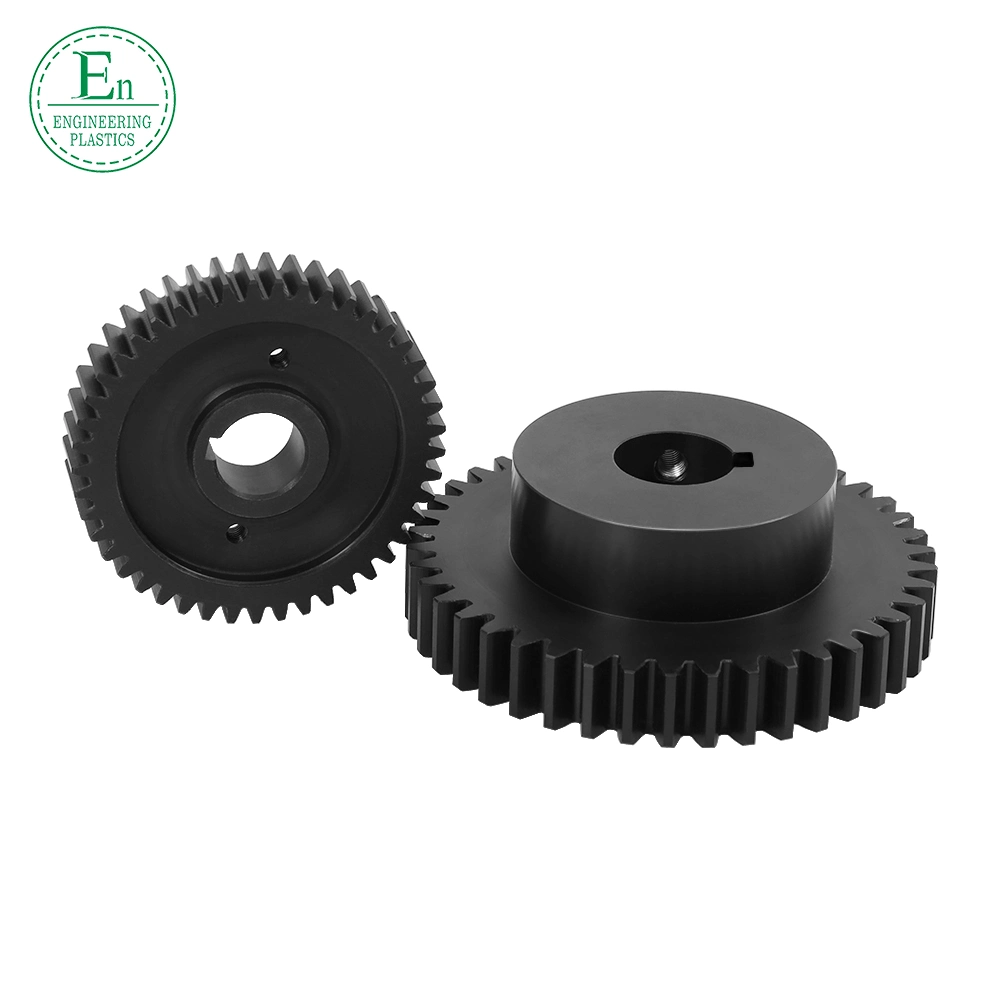

Professional manufacture of nylon gear nylon oil nylon gear

specialized in manufacture cast nylon polyamide palstic gear wheels Nylon is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in diffe

Featured Products


Professional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon GearProfessional Manufacture Nylon Gear Nylon Oil Nylon Gearspecialized in manufacture cast nylon polyamide palstic gear wheels
Nylon is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.The caprolactam monomer is first melted, and added catalyst, then poured it inside moulds at atmosphere pressure so as to shape in different castings, such as: rod, plate, tube.

Since the end of 1980's, Guangzhou Engineering Plastics Industireis Company has devoting herself on developing the technology of Nylon modification, greatly extended the applications in different industries. Basing on the Nylon, reinforced with variety of additives during the reaction, such as lubricant, molybdenum disulfide, graphite glass fiber, carbon fiber etc, to improve the properties, higher performance of wear-resistance, corrosion-resistance, self-lubrication, vibration-absorption, noise-absorption. At the same time, as the technics and structure of the moulds is quite simple, so that it can be manufactured in lower cost, becomes the ideal substitutes of bronze, stainless steel, Babbitt alloy,PTFE and so on.

Oil Nylon (green)

Oil Nylon(green)is the new engineering plastics that developed by Guangzhou Engineering Plastics Industireis Company in the later 1980's by importing the advanced technology from Nylacast Co., Ltd, UK, was the first authentic lubricating nylon that builds the liquid lubricant system during the processing stage, which makes its coefficient of friction is 50% lower than the general PA6 or PA66, the wear-resistance is 10 times than the general ones. Oil Nylon is specially developed for the parts of non-self-lubrication, heavy-loading and low-speed-running, which obviously resulted in a substantial increase in bearing life-5 times that of general PA6 and 25 times that of phosphor bronze! The lubricant contained within the material will not drain, adsorb or dry out and never needs replenishment. The uniform distribution of the lubricant throughout the product guarantees the constant performance of the parts over the whole service life and improvements in rate of wear, sliding frictional properties, abrasion resistance and stick slip performance, which are just a few of the benefits offered by this material. Oil Nylon has been successful in considerable enlarging the application of nylon in many industries and specifically for some un-lubricated running parts.

Other casting Nylon:

Oil Nylon + Carbon (Black)
Oil Nylon added carbon, has the very compact and crystal structure, which is better than the general casting nylon in the performance of high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.

Oil MC901(Blue)
This improved MC Nylon, has striking blue color, which is better than general PA6/PA66 in the performance of toughness, flexibility, fatigue-resistance and so on. It is the perfect material of gear, gear bar, transmission gear and so on.

MC Nylon + MSO2(Light black)
MC Nylon added MSO2 can remain the impact-resistance and fatigue-resistance of casting nylon, as well as it can improve the loading capacity and wear-resistance. It has a wide application in making gear, bearing, planet gear, seal circle and so on.


nylon gear property:

Property
Item No.UnitPOM-CPOM-HPOM-H+PTFE
Mechanical Properties1Densityg/cm31.411.431.50
2 Water absorption(23ºCin air)%0.200.200.17
3Tensile strengthMPa687855
4Tensile strain at break%353510
5Compressive stress(at 2%nominal strain)MPa354037
6Charpy impact strength (unnotched)KJ/m 2≥150≥200≥30
7Charpy impact strength (notched)KJ/m 27103
8Tensile modulus of elasticityMPa310036003200
9Ball indentation hardnessN/mm 2140160140
 10Rockwell hardness-M84M88M84

Our Service:

1. Rich industry experience since 1988.
2. Wide arrange product line, including plastics sheet/rod/parts/accessories: MC NYLON, OIL NYLON, POM, UHMW-PE, PU, PETP, PC, PTFE, PVDF, PPS, PEEK, PAI, PI, PBI ect.
3. Manufacture, design and processing service as per your demand.




Product technology:
CNC machine,Extrusion,Injection,ect.



Processing Equipment :
CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press




Packaging &Shipping:
Packing in plastics bags,wooden case,pallet,container,ect.



Certificate:
Certification:ISO,SGS,FDA,RoHS,Test report,ect.




FAQ:

1.A: What's the size of plastics sheet?
   B:Nylon sheet:Thickness*Width*Length:20-100*1000*2000mm
       UHMW-PE sheet:Thickness*Width*Length:20-100*1000*2000mm; 20-100*1250*3130mm; 20-100*1250*4250mm
     POM sheet:Width*Length:1000*2000mm

2. A:Can we purchase a small part of plastics sheet?
    B: Yes,you can, if we have the size you require in stock.

3. A:What color of plastics sheet?
    B: Nylon sheet:  Natural,black,blue,or according to client's requiremnet.
         UHMW-PE sheet:  White,black,green ,bule,yellow,or according to client's requirement.
         White,black

4. A:Can you manufacture the plastics products as per drawing?
    B: Yes,we can.

5.A: What the precision of plastic products according to drawing?
   B: Different machine with different precision,it usually around 0.05-0.1mm

6.A: What the technologies in producing plastics parts?
   B: Different products with different technologies,such as CNC machine,Extrusion,Injection

7: A:What kinds of processing machine do you have?
    B: CNC machining center,CNC lathes,Milling,Injection Molding Machine,Extruder,Moulding press
