PP Pipe Settling Media / PP Honeycomb Filter

Product description1mm plastic tube settler media for Drainage Engineering  is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable i

Featured Products

Product description

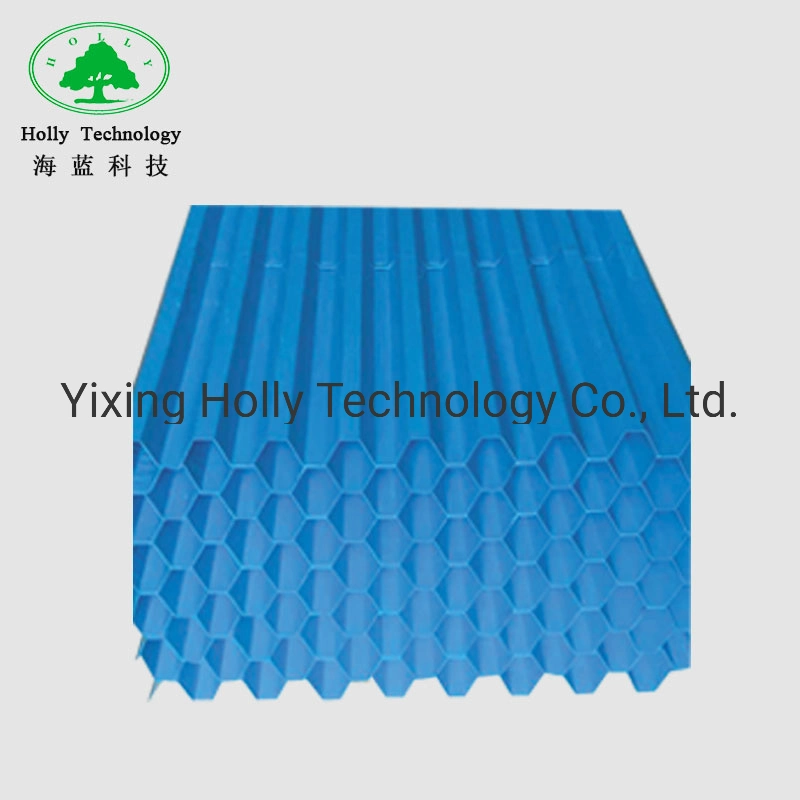

PP Tube Settler Media/ PP Honeycomb Filter
PP Tube Settler Media/ PP Honeycomb Filter
PP Tube Settler Media/ PP Honeycomb Filter



1mm plastic tube settler media for Drainage Engineering  is very suitable in all different clarifiers and removing sand. It is regarded as universal water treatment equipment in water supply and drainage engineering. It has wide application, high handling efficiency, small area, etc. It is suitable in removing sand in inlet, industry and drinking water precipitation, separation in oil & water.
The modular and cubical self-supporting settler design of Honeycombed Inclined Tube Settlers aids handling during installation and any subsequent maintenance.
1mm plastic tube settler media for Drainage Engineering design avoids thin wall membranes and utilizes forming techniques to minimize component stress and subsequent environmental stress cracking fatigue.
1mm plastic tube settler media for Drainage Engineering offers an inexpensive method of upgrading existing water treatment plant clarifiers and sedimentation basins to improve performance. They can also reduce the tankage/footprint required in new installations or improve the performance of existing settling basins by reducing the solids loading on downstream filters.

Technical Parameters
MaterialAperture(mm)Thickness(mm)Color
PPφ300.4-0.5white
φ350.45-0.55
φ500.5-1.0
PVCφ300.4-0.5blue/white
φ350.4-0.5
φ500.5-1.0

Features
♦ Large wetted perimeter, hydraulic radius is small.
♦ The laminar good condition, particles falling from flocculent flow interference.
♦ When the tube for 1 m long, effective load by 5 tons/square meter design.And V control in 2.5- 3.0 mm/SEC effluent water,within the scope of the best.
♦ In the water inlet place inclined pipe length, the honeycomb 2.0-3.0 meters, may in the 50-100 kg/m3 clay sand content of high turbidity safe operation of processing.
♦ The plastic inclined packing, which the processing ability is to destabilize the flat streaming traps three to five times, accelerate the clear pool and pulse clarify pool two to three times.
♦ The material is with UV radiation protection.Packing

Certificate
PP Tube Settler Media/ PP Honeycomb Filter

Company information
About UsYixing Holly Technology Co., Ltd is located in Yixing, Jiangsu Province, China. Established in 2007, Holly Technology is a domestic forerunner in producing environmental equipments and parts used for sewage treatment.
Nowadays, our company has developed into a comprehensive enterprise integrating production, trading, design and installation service of sewage treatment equipments.

PP Tube Settler Media/ PP Honeycomb Filter
