DC Motor Tt Motor Gear Box/PCS Plastic Wheel

Gear Motor TT Motor + wheel for Smart car Robot DC motor + supporting wheelsSpecification:DC motor Wheel Match Continuous Rotation 130 DC Motor Gear BoxDescriptionThis DC motor wheel from FEETECH exclusive development, it is made to match all 130 DC motorsThe diameter of the wheel is 60MM, small and light,This wheel is mainly us

Featured Products

Gear Motor TT Motor + wheel for Smart car Robot DC motor + supporting wheels

Specification:


DC motor Wheel Match Continuous Rotation 130 DC Motor Gear Box
Description
This DC motor wheel from FEETECH exclusive development, it is made to match all 130 DC motors
The diameter of the wheel is 60MM, small and light,
This wheel is mainly used in Steam education and robotics for children.
It has a speed measuring&testing function.
The wheel has already been drilled into the disc hole.
This wheel has two functions.
One is the wheel function and the other is the code disk function.
The wheel is molded from ABS and measures just under 50mm across by 7mm.
With the included rubber band tire, the total wheel diameter is 51mm.
Quick Spec:
-Very high quality
-50mm Wheel Diameter
-7mm Tyre Width
-Splines compatible with all 130 DC motors
Plastic Wheel for DC Motor Tt Motor Gear Box/PCS


DC motor  Description

Mechanical Specification
No.Item Specification
1Size 70x22x18mm
2Weight30g ±0.2
3Gear typePlastic Gear(Nylon & POM )
4Limit angle NO limit
5BearingNO Ball bearings
6Horn gear spline 20T(4.8mm)
7Horn type Plastic, POM
8CaseNylon & Fiberglass
9Connector wire  100mm ±5 mm + 3pin JR Male connector
10MotorMetal brush motor
11Splash water resistanceNO

Plastic Wheel for DC Motor Tt Motor Gear Box/PCS

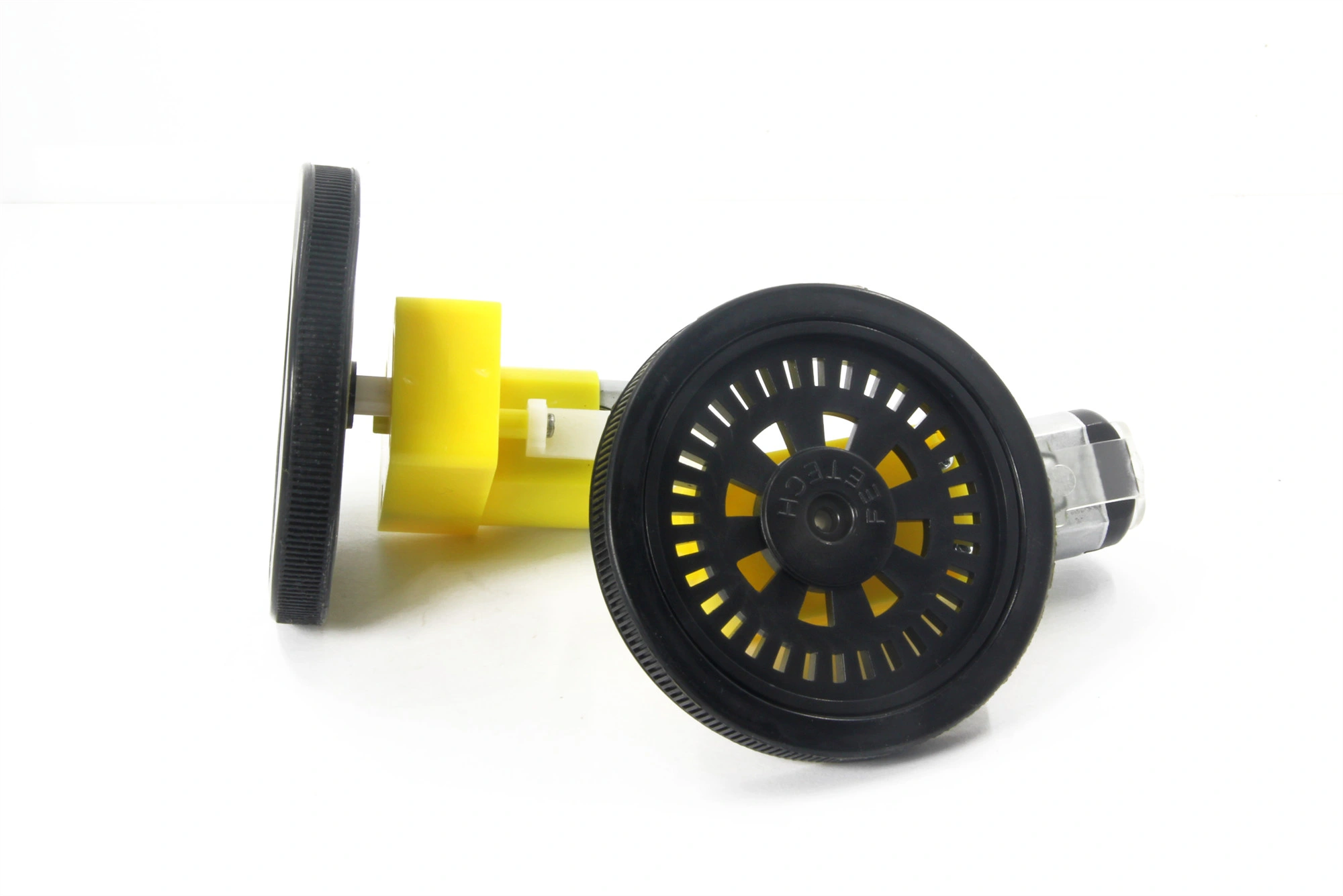

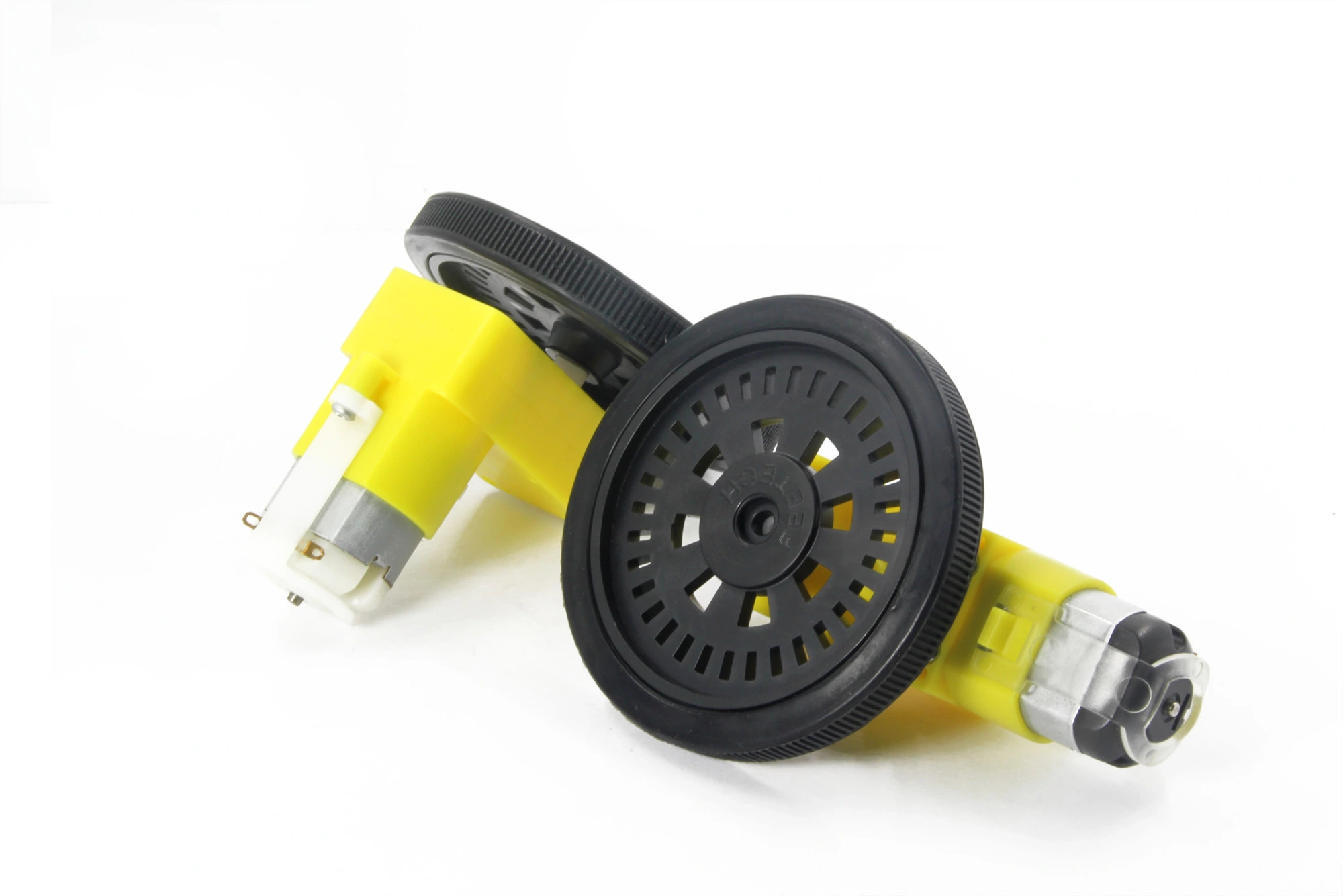

DC motor Picture:

Plastic Wheel for DC Motor Tt Motor Gear Box/PCS








Another type WHEEL:

Plastic Wheel for DC Motor Tt Motor Gear Box/PCS







Packaging & Shipping

Full Packaged

-wheel×1PCS

-screws×1 bag

-GW:32g



Application:

Plastic Wheel for DC Motor Tt Motor Gear Box/PCS






Related Products:
Plastic Wheel for DC Motor Tt Motor Gear Box/PCS
Plastic Wheel for DC Motor Tt Motor Gear Box/PCS
