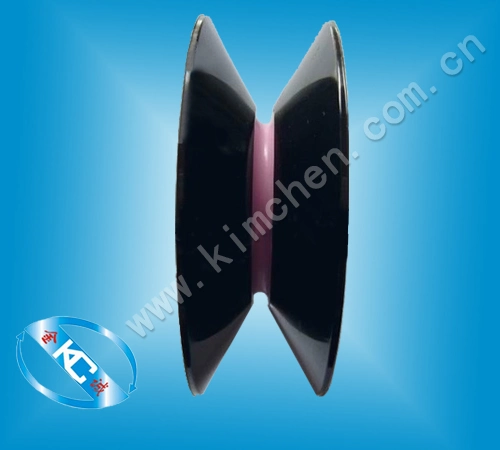

Flanged ceramic roller, Wire guide pulleys (ceramic pulleys) is commonly used component when wire passing is required, it can be used in coil winding machine, cable machine and the textile machinery as well. The porcelain ring is mounted on the bearing, Coil winding wire guide pulley(wire roller) will rotate by the thread and wire passing on the surface of the ring. Thus the sliding friction has been converted to the static friction.
But at the start and stop, in order to overcome the inertia, there will be a partial sliding friction. The surface Polish degree of the porcelain ring reaches Ra0.2; The beating during rotation is under 0.15. We select the 99% AL2O3 as the material with the hardness of HRA88 and the density of 3.85...Two nylon side walls have been put to the both side of the ceramic ring and the bearing, coil winding wire guide pulley (wire roller) combines one wire roller
But at the start and stop, in order to overcome the inertia, there will be a partial sliding friction. The surface Polish degree of the porcelain ring reaches Ra0.2; The beating during rotation is under 0.15. We select the 99% AL2O3 as the material with the hardness of HRA88 and the density of 3.85...Two nylon side walls have been put to the both side of the ceramic ring and the bearing, coil winding wire guide pulley (wire roller) combines one wire roller
Specification table of wire roller | |||||
Modle No | A((mm) | B(mm) | C(mm) | D(mm) | E(mm) |
HCR001-B03 | 20 | 15 | 3 | 4.8 | 3 |
HCR002-B04 | 28.7 | 20 | 4 | 6.4 | 4 |
HCR003-B03 | 30.4 | 15 | 3 | 10 | 3 |
HCR004-B04 | 40 | 20 | 4 | 15 | 3 |
HCR045-B04 | 45 | 4 | |||
HCR045-B05 | 5 | ||||
HCR045-B06 | 6 | ||||
HCR005-B05 | 54.5 | 30 | 5 | 10 | 6 |
HCR005-B06 | 6 | ||||
HCR005-B07 | 7 | ||||
HCR005-B08 | 8 | ||||
HCR006-B07 | 60 | 40 | 7 | 13 | 7 |
HCR006-B08 | 8 | ||||
HCR006-B10 | 10 | ||||
HCR006-B12 | 12 | ||||
HCR007-B05 | 60 | 30 | 5 | 18 | 6 |
HCR007-B06 | 6 | ||||
HCR007-B07 | 7 | ||||
HCR007-B08 | 8 | ||||
HCR008-B10 | 79.2 | 50 | 10 | 15 | 9 |
HCR009-B07 | 80.5 | 40 | 7 | 25 | 7 |
HCR009-B08 | 8 | ||||
HCR010-B10 | 99.3 | 50 | 10 | 29.5 | 9 |
