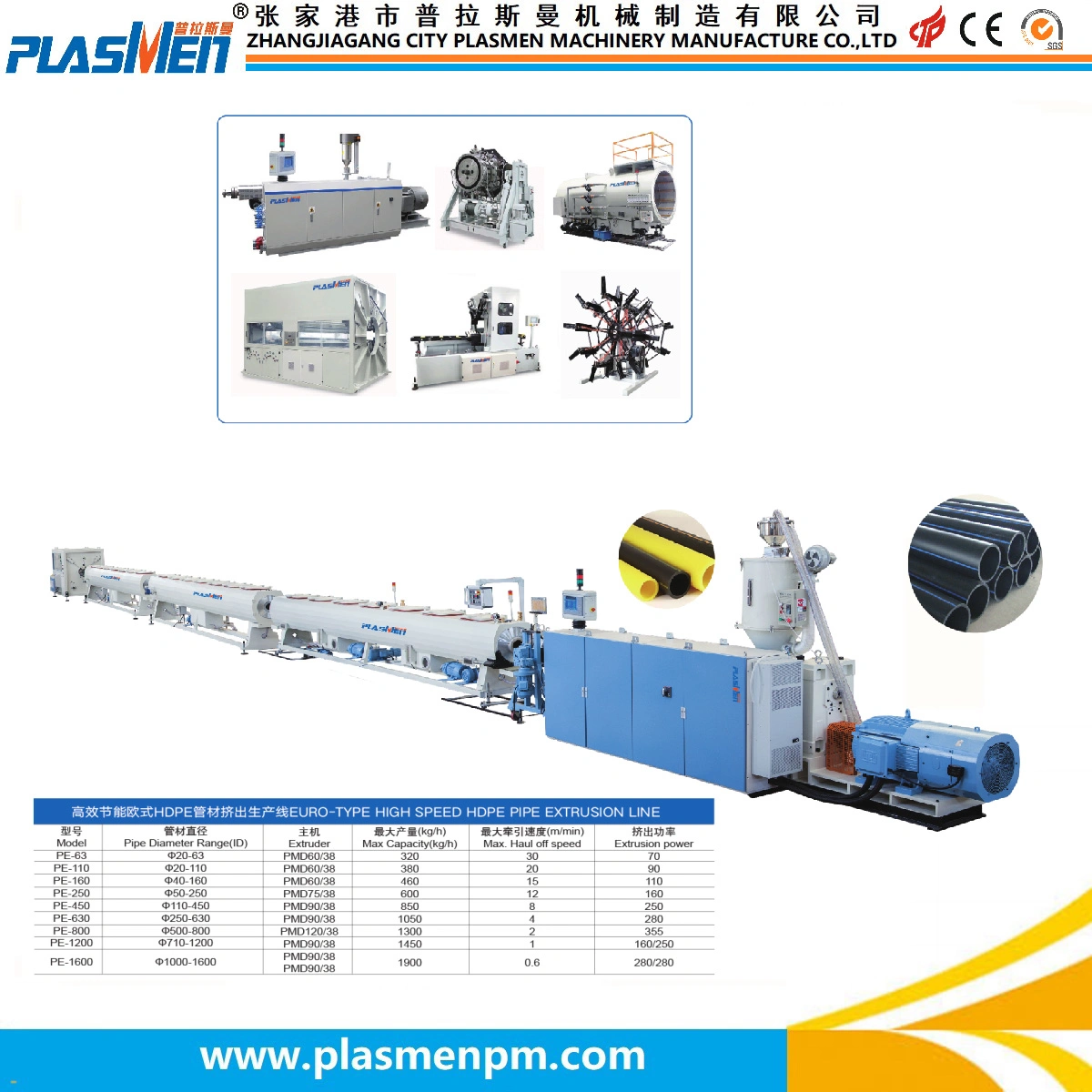

PE series plastic pipe material production line-PE110

Introduce:
PE series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. The single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high.It has reached world advanced level.
1.High speed, big capacity and low power consumption the fastest lineal speed up to 35m/min and power saving of 30%
2.Achieved co-extrusion with 1-5 layers and one mould with several output
3.High speed calibration and good cooling effect with spiral mould structure design and special pipe inner cooling system
4.High speed material feeding with special spiral groove feeding design and outside water jacket cooling
5.Excellent shearing, mixing and stable extrusion with professional barrier type screw,  creative shearing and mixing design


Advantages of PE pipe extruding line:

  • Connection reliability: polyethylene pipe system connected between the use of electric hotmelt, the joint strength is higher than pipe body strength.
  • good low temperature impact resistance: lowtemperature brittleness of polyethylene low temperature can be withina temperature range of subzero 60 to 60 degrees Celsius safe to use. Construction in winter, because of materials,impact resistance is good, tube embrittlement will not occur.
  • Good stress cracking resistance: HDPE has a low gap sensitivity, high shear strength and excellent anti scratch capabilities, resistance to environmental stress cracking performance is also very prominent.
  • Good resistance to chemical corrosion: HDPE pipe can be resistant to a variety of chemical media, corrosion, chemical substances that exist in the soil will not cause any degradation of the pipeline. Polyethylene is the electrical insulator, it will not happen rot, rust or electrochemical corrosion phenomenon; In addition, it will not promote algae, bacteria or fungal growth.
  • Anti aging, long life: containing 2% to 2.5% of the uniform distribution of carbon black in polyethylene pipe can be outdoor storage or use of 50 years, will not be subjected to ultraviolet radiation damage.
  • Abrasion resistance: HDPE Pipe and comparison tests showed the wear resistance of steel pipe, HDPE pipe 4 times the wear resistance of steel pipe. In the mud transportation field, as compared with the steel pipe, HDPE pipe has better wear resistance, which means that HDPE pipe has a longer life and better economy.
  • Flexible good: HDPE pipe flexible makes it easy to bend, works by changing the pipes can be a way to bypass the obstacles towards, and in many occasions, the flexible pipe fittings to reduce consumption and lower installation costs
  • Flow resistance: HDPE pipe has a smooth inner surface, the Manning coefficient of 0.009. The performance smooth and non adhesion properties ensure the HDPE pipe has a higher than traditional pipe transmission capacity, but also reduce the pipeline pressure loss and water consumption.
ModelDiameter(mm)Extruder typeMax. Capacity(kg/h)Max. Haul off speed(m/min)Extrusion power(KW)
PE-63Ф20-63SJ60/33 or SJ65/33120/1501245/55
PE-110Ф20-110SJ60/33 or SJ65/33120/1501245/55
PE-160Ф50-160SJ75/3335010110
PE-250Ф75-250SJ75/333506110
PE-315Ф90-315SJ75/33 or SJ90/33350/5506110/200
PE-450Ф160-450SJ90/335504200
PE-630Ф315-630SJ120/338502280
PE-800Ф400-800SJ120/338502280
PE-1000Ф630-1000SJ150/3313002400
PE-1200Ф710-1200SJ150/3313001400
PE-1600Ф1000-1600(SJ120/33) X 21000-17000.16400
