oil field tools solid rigid centralizer tubing nylon centralizer

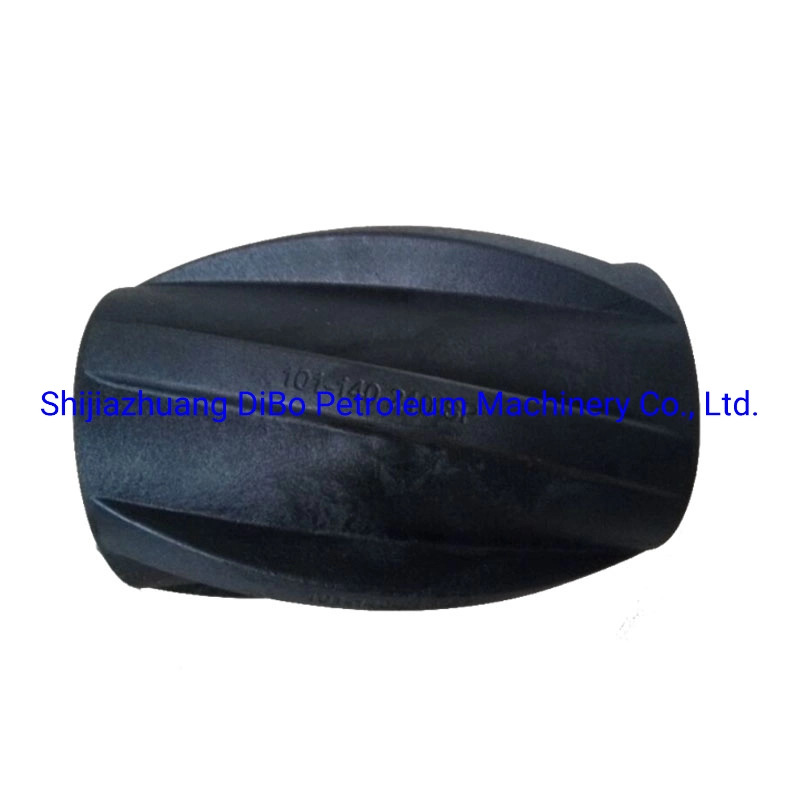

The Composite centralizer is made of advanced composite that has a low coefficient of friction and is heat resistant and highly durable. This material performs reliably in extreme wellbore conditions. With its smooth, durable, tapered construction.
The centralizer can easily pass obstructions in the wellbore, so it is well suited for horizontal applications.
Application:
Vertical, deviated, and horizontal wells
Extended-reach wells and wells with high dogleg severity
Wells with temperatures up to 350°F (177°C)
API 10D casing centralizer China supplier nylon casing centralizer
API Oilfield Cementing Tools casing and tubing accessories rubber centralizer spiral nylon composite centralizer
oilfield cementing equipment composite centralizer nylon centralizer thermoplastic casing centralizer
Our Company Information:
oilfield cementing equipment composite centralizer nylon centralizer thermoplastic casing centralizer
Certification:
Contact US:
The Composite centralizer is made of advanced composite that has a low coefficient of friction and is heat resistant and highly durable. This material performs reliably in extreme wellbore conditions. With its smooth, durable, tapered construction.
The centralizer can easily pass obstructions in the wellbore, so it is well suited for horizontal applications.
Application:
Vertical, deviated, and horizontal wells
Extended-reach wells and wells with high dogleg severity
Wells with temperatures up to 350°F (177°C)
API 10D casing centralizer China supplier nylon casing centralizer
| Specification | casing size (mm) | Hole Size (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
| 4-1/2"×6" | 114 | 152 | 119 | 146 |
| 5-1/2″×8-1/2″ | 140 | 216 | 142 | 210 |
| 7″×8-1/2″ | 178 | 216 | 182 | 210 |
| 7″×9-1/2″ | 178 | 241 | 182 | 236 |
| 9-5/8″×12-1/4″ | 244 | 311 | 249 | 305 |
oilfield cementing equipment composite centralizer nylon centralizer thermoplastic casing centralizer
Our Company Information:
Shijiazhuang Dibo Petroleum Machinery Co.,Ltd was established in 2015 focusing in the oilfield cementing casing centralizers' design and production in Shijiazhuang City. Hebei Province .China.
We have passed API 10D, ISO9001 International Quality System,GB/T24001 Environment Management System & GB/T28001 Occupational Healthy Safety Management
