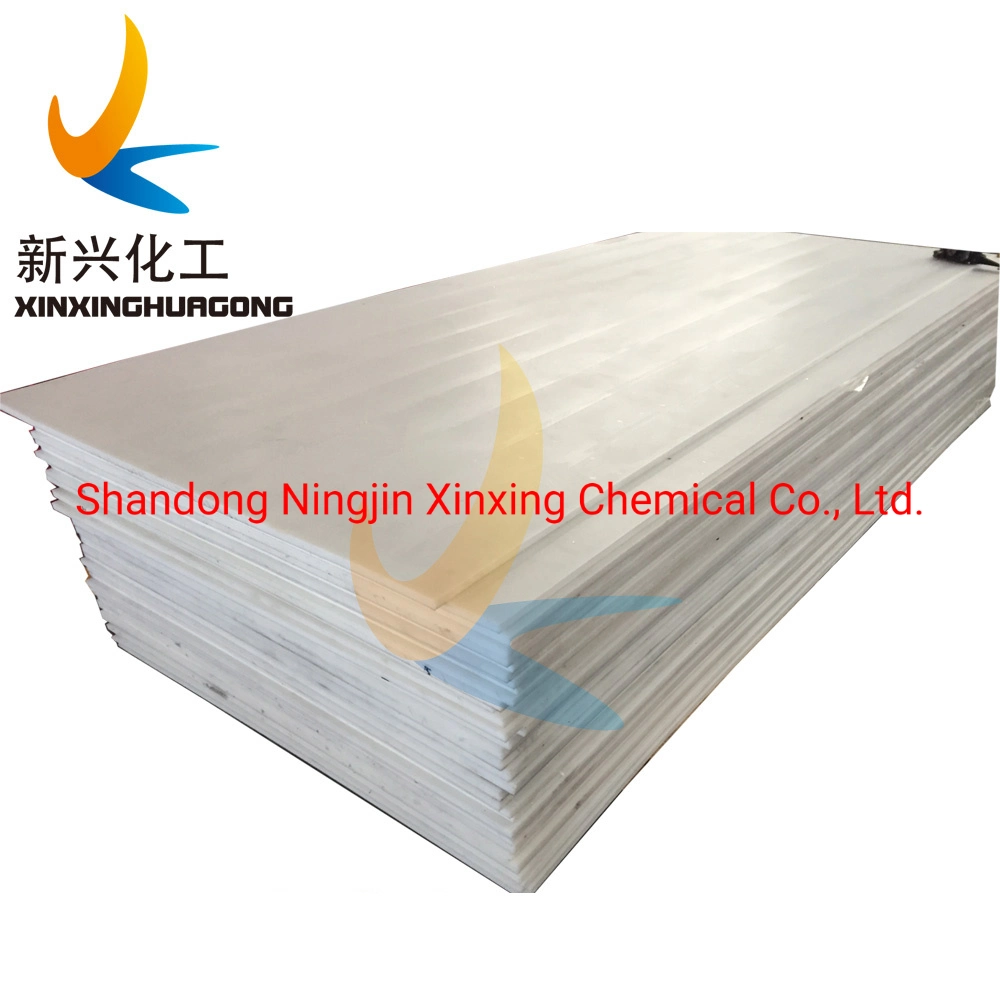

Natural Engineering Plastic UHMWPE Sheet Products
| Product Name | Natural Engineering Plastic UHMWPE Sheet Products |
| Material | Virgin PE Material |
| Color | White, Black, Yellow, Blue, any Panton Color or Ral Color |
| Standard | ISO9001, SGS etc. |
| Grade | PE100, PE300, PE500, PE1000, PE2000 etc. |
| Brand | Xinxing |
| Density | 0.94-0.96 g/cm3 |
| Thickness tolerance | +0.5/-0 mm |
We provide UHMWPE / UPE (Ultra High Molecular Weight Polyethylene) which the average molecular weight is estimated in the range of 4~9 million.
UHMW polyethylene sheet & shapes could be customized according to customers' demands.
Products Description
1. Natural Engineering Plastic UHMWPE Sheet Products Catalog
Natural virgin grade
Fender grade
Black anti static grade
Glass filled / Ceramic filled grade
Flame resistant grade
Green self lubricating grade
Natural high molecular grade PE 500
2. Natural Engineering Plastic UHMWPE Sheet Products Size
2000x1000x(6-300)mm 3050x3050x(6-300)mm
5040x1330x(6-300)mm 4730x1230x(6-300)mm
3050x1220x(6-300)mm 6050x1820x(6-300)mm
3030x1550x(6-300)mm 4520x2000x(6-300)mm
Any size within the standard size is available.
3. Advantages of Natural Engineering Plastic UHMWPE Sheet Products
Self-lubricating.
Good Abrasion&wear resistance (15 times more resistant to abrasion than carbon steel).
Corrosion & impact resistant.
low temperature resistant.
Non-water absorption
Easy to machine
4. Natural Engineering Plastic UHMWPE Sheet Products Applications
Application: marine UHMW-PE sheet; Replace carbon steel, stainless steel, bronze used in textile, paper making, food machinery, transportation, medical machinery, coal machinery, chemical industry and other departments.
Examples: Technical spindle, picking stick, gear, coupling, flower stem, buffer block, eccentric block, rod bushing and other wear resistant parts in textile industry. Besides, owing to its wear resistant is better than carbon steel, it can be shaped various different parts for machinery, including the gear in food machinery, worm gear, worm, bearing etc.
5. Natural Engineering Plastic UHMWPE Sheet Products Techinal Data Sheet
| Property: | Test Method (Standard) | Ticona GUI4152 | Ticona GUI4150,4120 | Unit |
| Molecular weight | 3-9 million | 3-9 million | ||
| Density | ISO 1183-1:2012/DIN53479 | 0.92-0.96 | 0.93-0.96 | g/cm³ |
| Compression strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
| Tensile strength | ISO527-2:2012 | ≥20 | ≥22 | Mpa |
| Elongation at break | ISO527-2:2012 | ≥300 | ≥300 | % |
| Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
| Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 | |
| Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
| Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
| Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
| Hardness shore-D | ISO 868:2003 | 65 | 66 | D |
Our Company
The largest factory in China about UHMWPE Sheet, PE1000 Board, UHMWPE Pad, T88 sheet, 8 workshops, 12 sets CNC machines, all kinds of certification and industry standards could be met. In addition, we could provide the best after-sale service, 24 hours online for you!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
