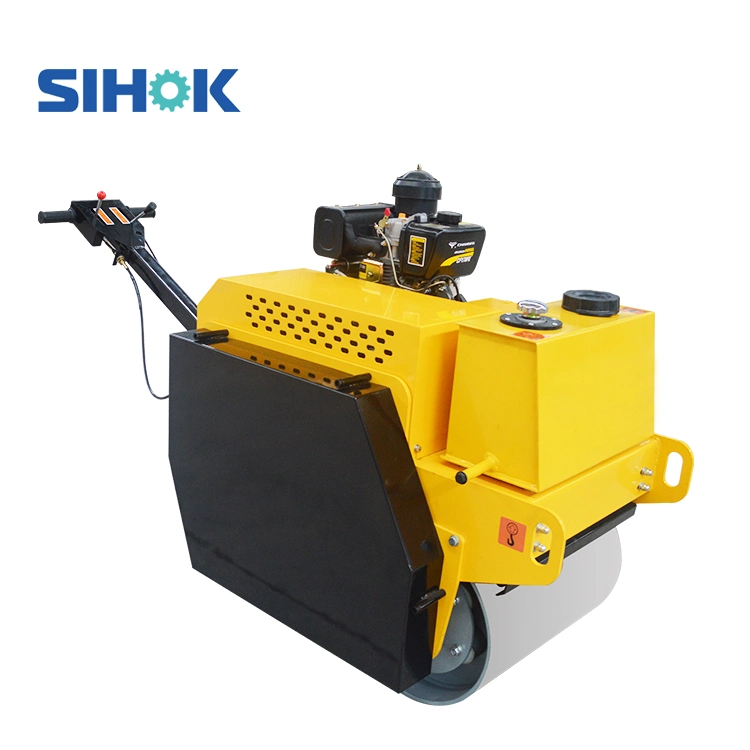

SVR-550 pedestrian road roller is one kind of small-size Road Roller, adopts Honda gasoline engine or China diesel engine, it adopts hydraulic station, double drum driving and vibration. It has hand and electric start, small operating radius, can work in a small area, the mini road roller is mainly used for compact asphalt, broken stone, backfill and concrete etc. The packaging of the Roller is wooden case or according to customers' requirements.
Main Features
1) With HONDA gasoline engine or famous diesel engine, superior performance, easy to start.
2) Operating radius is small, can work in a small area.
3) The transmission mechanism of famous hydraulic drive system, and reversing is convenient, long lifetime.
4) Diesel power with electric startup, light and flexible.
5) Dual drums driving and vibration, ensure the compaction performance of the whole machine and gradeability.
| Model | SVR-550 |
| Walk Speed | 0-4km/h |
| Gradeability | 30% |
| Drive Type | Hydraulic Station |
| Vibration Control | Automatic Clutch |
| Static Linear Load | 45N/cm |
| Nominal Amplitude | 0.6mm |
| Vibration Frequency | 70HZ |
| Exciting Force | 20KN |
| Water Tank | 20L |
| Hydraulic Oil Tank | 18L |
| Engine Model | GasolineHonda GX270/ Diesel CF178F/Water cool diesel CD180 |
| Power | 9.0HP |
| Steel Wheel Size | φ426*600mm*2 |
| Net Weight | 550kg |
| Starting Mode | Hand |
