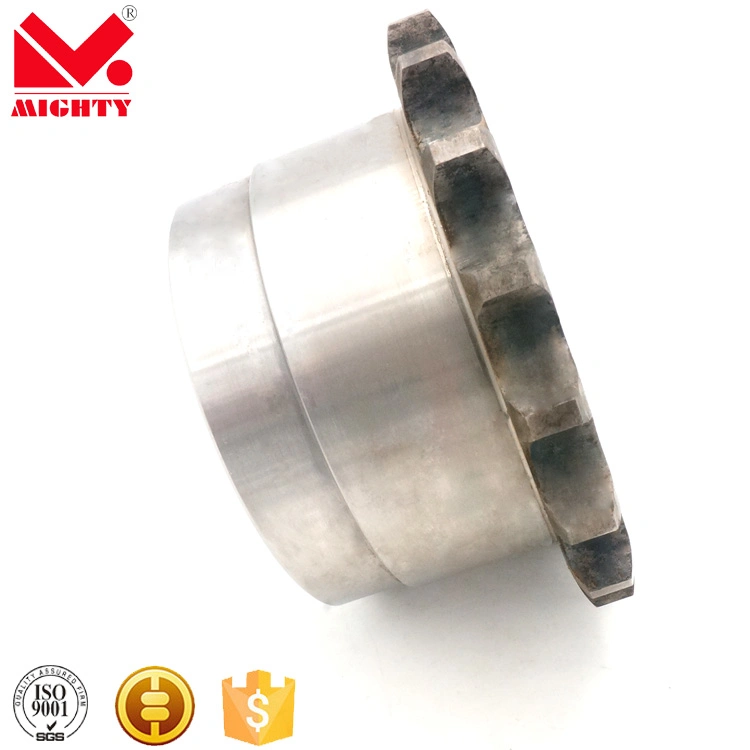

Sprocket:
A Sprocket is a profiled wheel with teeth that meshes with a chain, track or other perforated or indented material. It is distinguished from a gear in that sprockets are never meshed to gether directly, and differs from a pulley in that sprockets have teeth and pulleys are smooth.
1. Sprocket: all sprockets we are supplying are suitable for chains made in a ccordance with standard DIN
8187 or ANSI, from simplex,duplex to triplex.
2. Material: alloy steel, carbon steel, stainless steel, hardened & tempered steel, cast iron, aluminum,
copper, brass and so on.
3. Heat treatment: hardening and tempering, high frequency quenching, carburizing and quenching.
4. Surface treatment: galvanizing/zinc plating, dacrotized, black anodic treatment, spray painting, mirror
finish, burnishing, sand-blasting.
5. Inspection: all items are checked and tested thoroughly during every working procedure to make sure
that best quality products will be sold in the market.
DataSheet
| Z | de | dp | SINGLE | DOUBLE | TRIPLE | ||||||
| dm | D1 | A | dm | D1 | A | dm | D1 | A | |||
| 9 | 31 | 27.85 | 18 | 8 | 22 | 18 | 8 | 22 | 18 | 8 | 32 |
| 10 | 34 | 30.82 | 20 | 8 | 22 | 20 | 8 | 22 | 20 | 10 | 32 |
| 11 | 37 | 33.8 | 22 | 8 | 25 | 22 | 10 | 25 | 22 | 10 | 35 |
| 12 | 40 | 36.8 | 25 | 8 | 25 | 25 | 10 | 25 | 25 | 10 | 35 |
| 13 | 43 | 39.79 | 28 | 10 | 25 | 28 | 10 | 25 | 28 | 10 | 35 |
| 14 | 46.3 | 42.8 | 31 | 10 | 25 | 31 | 10 | 25 | 31 | 12 | 35 |
| 15 | 49.3 | 45.81 | 34 | 10 | 25 | 34 | 10 | 25 | 34 | 12 | 35 |
| 16 | 52.3 | 48.82 | 37 | 10 | 28 | 37 | 12 | 30 | 37 | 12 | 35 |
| 17 | 55.3 | 51.83 | 40 | 10 | 28 | 40 | 12 | 30 | 40 | 12 | 35 |
| 18 | 58.3 | 54.85 | 43 | 10 | 28 | 43 | 12 | 30 | 43 | 12 | 35 |
| 19 | 61.3 | 57.87 | 45 | 10 | 28 | 46 | 12 | 30 | 46 | 12 | 35 |
| 20 | 64.3 | 60.89 | 46 | 10 | 28 | 49 | 12 | 30 | 49 | 12 | 35 |
Sprockets Feature :
1. Material: C45, Stainless steel 304, A3 etc.
2. High precision is available as per your request.
3. Sprocket processing: Forging, cast iron, Machining(shaping, hobbing etc.)
4. Good quality with most competitive price.
5. Surface treatments such as high-frequency quenching and hardened teeth can be 40-50 HRC.
6. The special rubber can be fixed on the teeth bottom to reduce the noise and wear.
7. Standard and non-standard sprockets.
OUR SERVICE:
1) Competitive price and good quality
2) Used for transmission systems.
3) Excellent performance, long using life
4) Could be developed according to your drawings or data sheet
5) Pakaging:follow the customers' requirements or as our usual package
6) Brand name: per every customer's requirement.
7) Flexible minimum order quantity
8) Sample can be supplied
MAIN PRODUCTS:
1) Timing Belt Pulley (Synchronous Pulley), Timing Bar, Clamping Plate;
2) Forging, Casting, Stampling Part;
3) V Belt Pulley and Taper Lock Bush; Sprocket, Idler and Plate Wheel;Spur Gear, Bevel Gear, Rack;
4) Shaft Locking Device: could be alternative for Ringfeder, Sati, Chiaravalli, Tollok, etc.;
5) Shaft Coupling:including Miniature couplings, Curved tooth coupling, Chain coupling, HRC coupling, Normex coupling, Type coupling, GE Coupling, torque limiter, Universal Joint;
6) Shaft Collars: including Setscrew Type, Single Split and Double Splits;
Company Information
Sichuan Mighty Machinery Co., Ltd. specializes in manufacturing Mechanical Power Transmission Products.
We Mighty is the division/branch of SCMC Group, which is a wholly state-owned company, established in 1980.
About Mighty:
-3 manufacturing factories, we have 5 technical staff, our FTY have strong capacity for design and process design, and more than
70 workers and double shift eveyday.
-Large quality of various material purchase and stock in warhouse which ensure the low cost for the material and production in
time.
-Strick quality control are apply in the whole prodution. we have incoming inspection,process inspection and final production
inspection which can ensure the perfect of the goods quality.
-14 years of machining experience. Long time cooperate with the Global Buyer, make us easy to understand the csutomer and handle the export.
MIGHTY's products are mainly exported to Europe, America and the Middle East market. With the top-ranking management, professional technical support and abundant export experience, MIGHTY has established lasting and stable business partnership with many world famous companies and has got good reputation from worldwide customers in international sales.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment
