I. Using

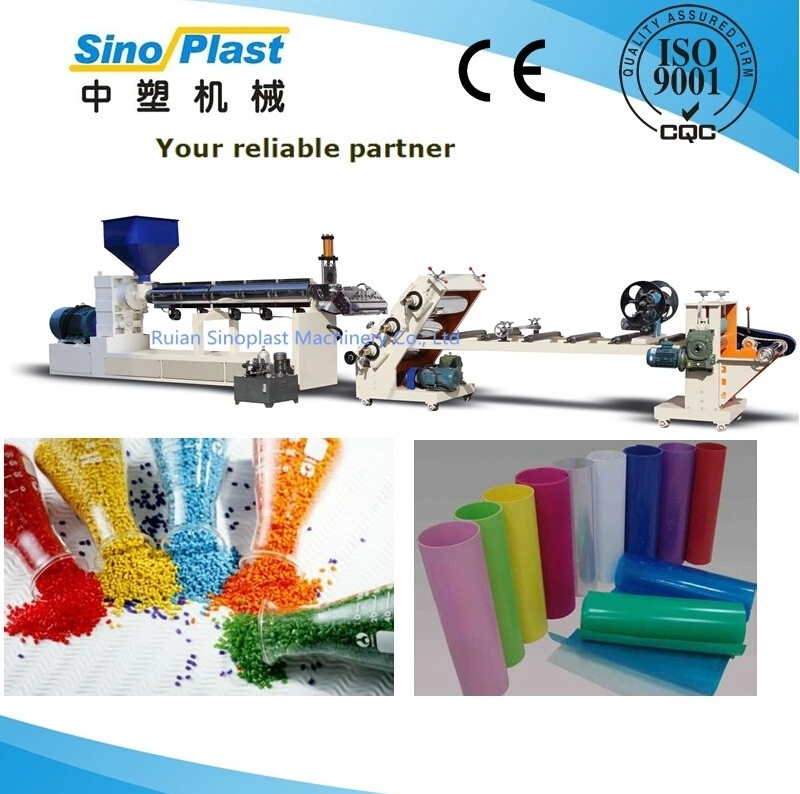

SPJ110*33/680 PP/PS Sheet Extruder Machine is use for making plastic PP,PS,PE and PLA sheet which for making plastic disposable water drinking cup, ice cream cup, lids, tray, plate, food container etc.
II. MAIN PARAMETERS:
1. Processed Material: PP/PS/PE/PLA Granule or powder
2. Max. width of finished product after slitted: 680mm
3. Thickness of the finished product: 0.3-2.0mm (PP)
0.25-2.0mm (PS)
4. Max. output capacity of extruder: around 150-180Kg/h
5. Machine Frame: square steel
III. Configuration and Specification
1. Direct connection for main motor and gear box
2. Main motor: 55KW
3. Main screw: 110mm, L/D: 33:1
4. Aluminum heater with air fan
5. Non-stop Fast Screen Changer With Double-sieve
6. The effective width of the die head: 800mm
7. Calender Roll Stack
(1) Structure: the three-rollers calender lay on the round with 45° slantways
(2) Roll number: 3
(3) Diameter of roll: 350mm
(4) Roll length: 780mm
8. Single-shaft Winder 1 set
9. Waste sheet reweinder 1 set
10. Thermostat 1 set (only for making PS sheet)
11. Electronic Control Cabinet (one set)
V. Sheet Samples for reference
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is "Credit by Quality, Market by Service".
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
Machine adjustment and installation
We can send technicians go to customers' country for mahchine adjustment and installation
Gaurantee time and after-sale
One year guarantee time, after one year , we have professional after-sales department providing best service if any problems.
