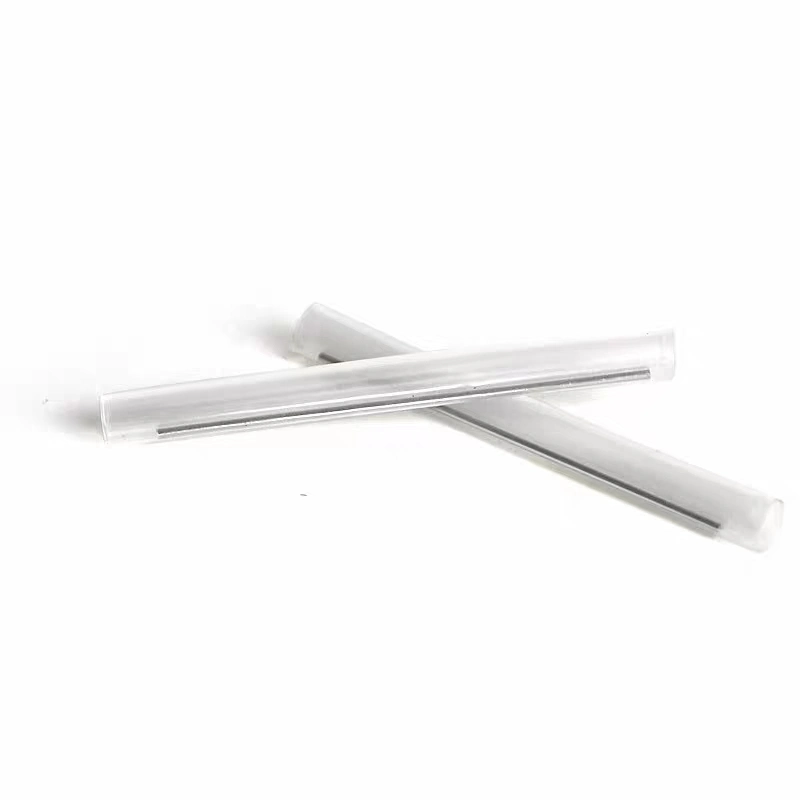

Fiber Optic Heat Shrink Sleeve Cable Splice Protection 60mm Heat Shrink Sleeve
Description:
Features:
1. Moisture resistant for environmental protection
2. Clear sleeve make it easy to detect splice before shrinkage
3. Easily use and avoid any damages to the optical fiber during installation
4. Color optical fiber splice protector is very convenience for installation
Application:
1.Telecommunications subscriber loop
2.Fiber to the home (FTTH)
3.LAN/WAN
4.CATV
Delivery&Payment
Description:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
It is made up of stainless reinforcing steel rod, heat shrinkable tubing and cross linked polyolefin. Rebuild the covering layer of the fiber and provide excellent mechanical strength in the joint. Guarantee good optical transmission performance. Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.
Features:
1. Moisture resistant for environmental protection
2. Clear sleeve make it easy to detect splice before shrinkage
3. Easily use and avoid any damages to the optical fiber during installation
4. Color optical fiber splice protector is very convenience for installation
Application:
1.Telecommunications subscriber loop
2.Fiber to the home (FTTH)
3.LAN/WAN
4.CATV
| Operating temperature: | -45°c~100°c / -45°c ~135°c |
| Minimum shrink temperature: | 80°c |
| Minimum fully recovery temperature : | 120°c |
| Radial Shrinking Rate (%) | >50 |
| Axial Shrinking Rate (%) | <10% |
| Shrinking Temperature (°C) | 110~130 |
| Normal Operation Temperature (°C) | -55°C ~ + 135°C |
| Normal Operature Relative Humidity | ≤95% |
| Spark- over Strength (kV/mm) | ≥20 |
| Tensile Strength (Mpa) | 20 |
| Loss at -40°C | 0.03dB |
| Loss at +60°C RH95% | 0.02dB |
