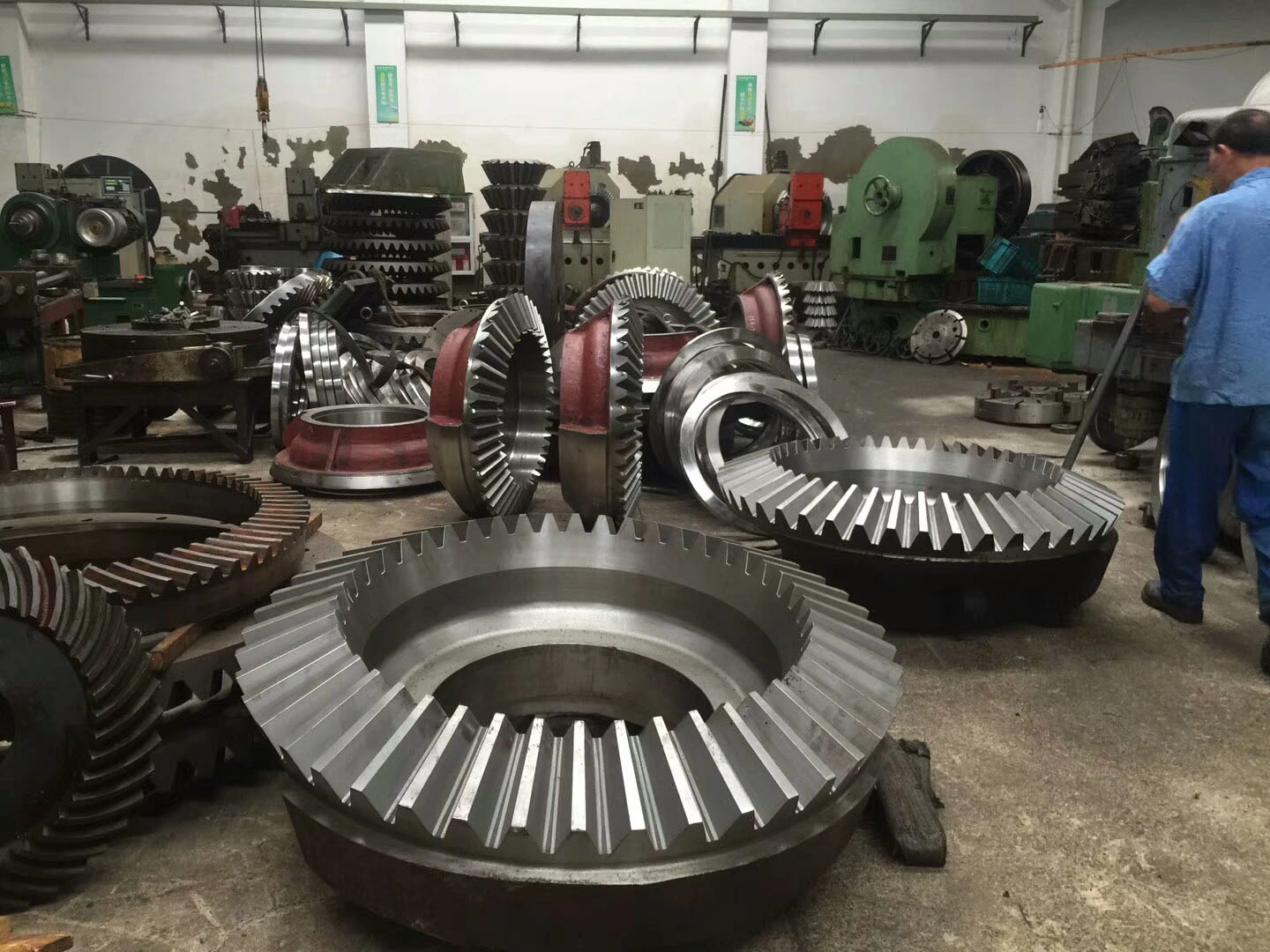

Custom Transmission Gears - Straight Bevel Gears and Spiral Bevel Gears
 Custom Transmission Gears - Straight Bevel Gears and Spiral Bevel Gears
ItemSpiral Bevel Gear
Custom Made
Gear Profile TypeGleason
Gear Manufacturing MethodGear Milling
Gear Teeth Grinding
Pressure Angle (α)20°
Helix Angle (β)35°
Material20CrMnTi
Heat TreatmentCarburizing/Cement Hardened
Surface Hardness58-62 HRC
Teeth Accuracy6-7 Grade (ISO 1328)
 STEEL CODE GRADES COMPARISON
CHINA/GBISOГΟСТASTMJISDIN
45C45E4451045S45CCK45
40Cr41Cr440X5140SCr44041Cr4
20CrMo18CrMo420ХМ4118SCM2225CrMo4
42CrMo42CrMo438XM4140SCM44042CrMo4
20CrMnTi 18XГT SMK22
20Cr2Ni4 20X2H4A
20CrNiMo20CrNiMo220XHM8720SNCM22021NiCrMo2
40CrNiMoA 40XH2MA/
40XHMA
4340SNCM43940NiCrMo6/
36NiCrMo4
20CrNi2Mo20NiCrMo720XH2MA4320SNCM420
Gear Teeth Grinding/ Gear Teeth Rectified

Material: SAE4340

Gear Surface Hardness: 58-62 HRC

Heat treatment: Carburizing (Cement Quenching)

Gear Quality: ISO 1328 6-7 Grade (AGMA 10-11 Grade)


Small order Can be accepted.

Custom Transmission Gears - Straight Bevel Gears and Spiral Bevel Gears
