Quick Detail:
Type :CU-PVC
Standard :IEC 60227
Nominal Voltage :450/750 volt, 300/500 volt
Conductor : Soft annealed solid or stranded copper wires
Insulation : PVC compound ratted 85c(or LSHF)
Packing : Plastic spools-coils, shrink wrap as per customer requirement

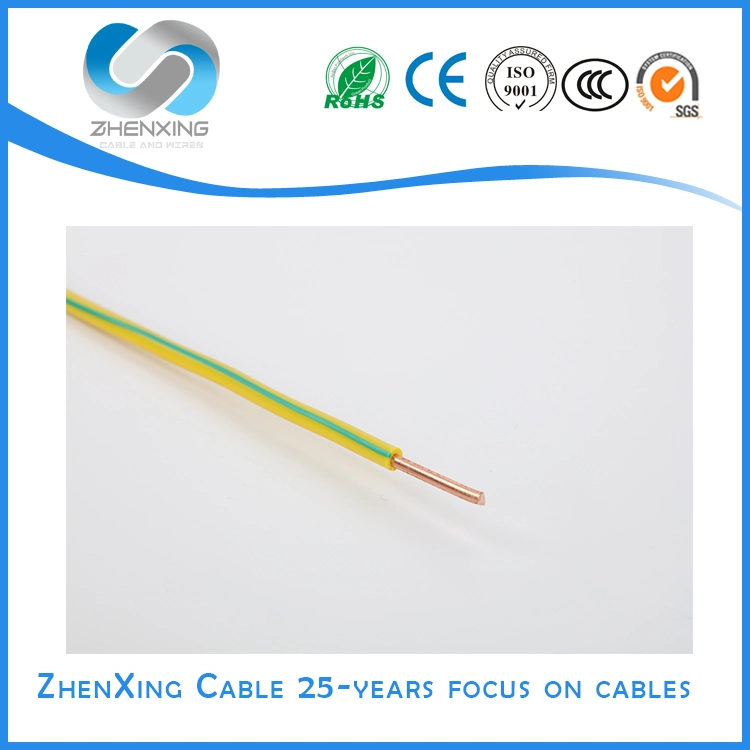

BV Cable
About our Company
Zhenxing Cable is the low voltage energy cable product company of Zhenxing Group which aims to be one of the leading manufacturer in its field.Production range includes low voltage copper and aluminium PVC/XLPE/HFFR power cables, armoured power cables, control cables, Lan cables, flat cables, fire cables, solar cables. Production plant set up in Zhejiang/China mainland center of the Yangtze River Delta Economic Circle.
Zhenxing Cables' every department processes strictly according to the regulations of ISO 9001:2008. Having obtained advanced technology machines, qualitied laboratoried, and the work force with konw-how, Zhenxing Cable is committed to provide its customers with quality products and the best service on time.
By continuing its investments and improving its production on a balanced basis. Zhenxing Cable aims to provide employment opportunities and reach a high level of customer satisfaction.
Certificate&Management system
Package&Delievery
(1).Wooden drums for small cables.
(2).Iron-steel drum and stell drum for big cables
(3). Delievery: 10-50days
Shipment Time
Usually within 5-15 working days offer receiving the desposit.
Our Service
* professional technical consulting support,
* OEM/ODM
* Free sample available .
* 2 years product quality guarantee.
Type :CU-PVC
Standard :IEC 60227
Nominal Voltage :450/750 volt, 300/500 volt
Conductor : Soft annealed solid or stranded copper wires
Insulation : PVC compound ratted 85c(or LSHF)
Packing : Plastic spools-coils, shrink wrap as per customer requirement
BV & BVR Application
1. Use as home appliance wiring cable, building wire
2. Use as electrical and electronic equipment internal connecting wire
3. Use as lighting wire
4. House wiring cable
| Type | Cross Section Area mm2 | Reference Application |
BV | 1.5 | Lighting equipment |
| 2.5 | Lighting equipment, socket, high-power electrical appliance | |
| 4.0 | Air-conditioner, water heater |
BV Cable
| Nominal sectional area mm2 | Conductor No/Dia. mm | Nominal Insulated thick mm | Max overall Dia. mm | Conductor Resistance at 20 | Min insulated resistance at 70MΩ/km | Weight Kg/km | ||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
About our Company
Zhenxing Cable is the low voltage energy cable product company of Zhenxing Group which aims to be one of the leading manufacturer in its field.Production range includes low voltage copper and aluminium PVC/XLPE/HFFR power cables, armoured power cables, control cables, Lan cables, flat cables, fire cables, solar cables. Production plant set up in Zhejiang/China mainland center of the Yangtze River Delta Economic Circle.
Zhenxing Cables' every department processes strictly according to the regulations of ISO 9001:2008. Having obtained advanced technology machines, qualitied laboratoried, and the work force with konw-how, Zhenxing Cable is committed to provide its customers with quality products and the best service on time.
By continuing its investments and improving its production on a balanced basis. Zhenxing Cable aims to provide employment opportunities and reach a high level of customer satisfaction.
Certificate&Management system
Package&Delievery
(1).Wooden drums for small cables.
(2).Iron-steel drum and stell drum for big cables
(3). Delievery: 10-50days
| Packaging | |
| Size | 1600 (L) * 1600 (W) * 900 (D) or as required according to customized length |
| Weight | ≤4 Ton |
Packaging Details | The packing is fumigated wooden Drums or wooden steel drums(Size: L*W*H). with wood slab covering for protection |
Shipment Time
Usually within 5-15 working days offer receiving the desposit.
Our Service
Pre-Sales Service
* Quick reply on Inquiries.* professional technical consulting support,
* OEM/ODM
* Free sample available .
After-Sales Service
* online Training on installation.* 2 years product quality guarantee.
