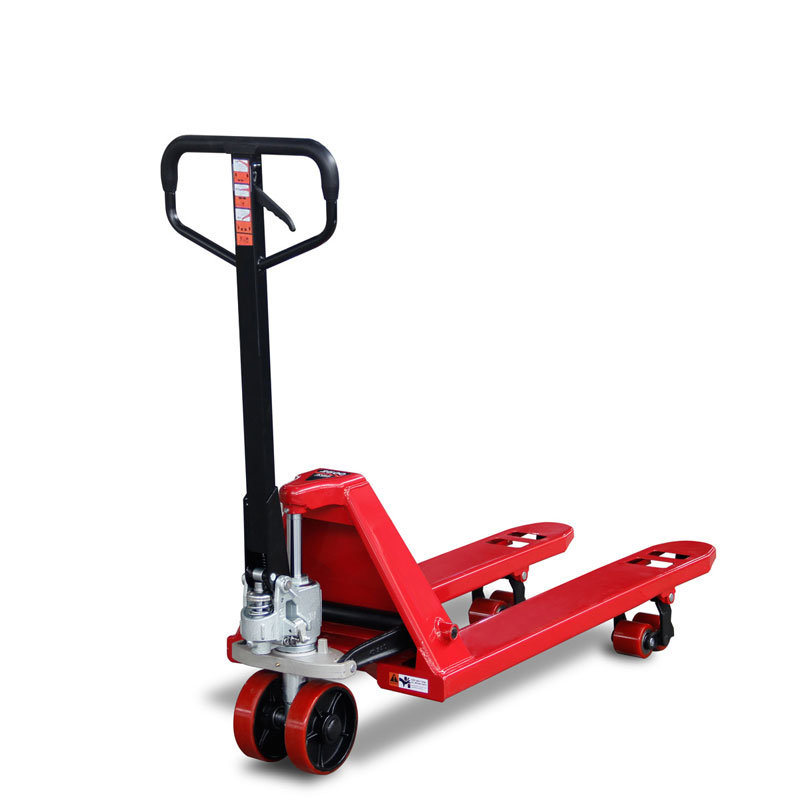

Advantages:
Integral casting forming cylinder and unique sealing design ensures it sturdy and durable;
Full automatic welding ensures 25% more strength than standard fork;
Alloy bushing at key points offer longer lift span;
Optional:
Front wheel configuration: single wheel and double wheel
Wheel material: nylon wheel, polyurethane wheel, rubber wheel (only steering wheel)
Body color: green, red, yellow.
(special color can be customized according to customer requirements)
| Capacity | Kg | 2000 | 2000 | 2500 | 3000 |
| Min. fork height | mm | 52/65 | 75/85 | 75/85 | 75/85 |
| Max. fork height | mm | 140/160 | 190/200 | 190/200 | 190/200 |
| Max. lifting height | mm | 88/95 | ≥110 | ≥110 | ≥110 |
| Fork outside width | mm | 520/540/685 | 520/540/685 | ||
| Fork inside width | mm | 200/220/365 | 200/220/365 | ||
| Fork length | mm | 915/1100/1150/1220 | 915/1100/1150/1220 | ||
| Single fork width | mm | 160 | 160 | ||
| Fork height | mm | 37 | 50 | ||
| Ovrerall length | mm | 1315-1620 | 1315-1620 | ||
| Overall width | mm | 520/540/685 | 520/540/685 | ||
| Overall height | mm | 1225 | 1245 | ||
| Cylinder lift rod diameter | mm | Φ31.5 | Φ31.5 | ||
| Single loading wheel size | mm | Φ50×93/Φ60×93 | Φ74×93/Φ80×93 | ||
| Tandem loading wheel size | mm | Φ50×70/Φ64×70 | Φ74×70/Φ80×70 | ||
| Steering wheel size | mm | Φ160×50/Φ180×50 | Φ180×50 | ||
| Min. turning radius | mm | 1120/1300/1350/1450 | 1120/1300/1350/1450 | ||
| Meterail of wheel | PU/Nylon/Rubber | ||||
| Net weight | Kg | 62-74 | 63-75 | 68-81 | 72-85 |
Net Weight(Kg):
| Style | 2T 540*1150 | 2T 685*1220 | 2.5T 540*1150 | 2.5T 685*1220 | 3T 540*1150 | 3T 685*1220 |
| Nylon | 63 | 67 | 68 | 73 | 72 | 78 |
| PU | 68 | 72 | 73 | 78 | 77 | 83 |
Packing data(unit:1 wooden pallet=6 pieces hand pallet trucks):
| Specifications(1 Wooden pallet) | Weight(Kg) | Volume(m3) | 40HQ(piece) | 20GP(piece) |
| 2.5T 540*1150 NL | 426 | 0.88 | 360 | 180 |
| 2.5T 540*1150 PU | 456 | 0.88 | 342 | 180 |
| 3T 540*1150 NL | 432 | 0.88 | 360 | 180 |
| 3T 540*1150 PU | 480 | 0.88 | 342 | 180 |
| 2.5T 685*1220 NL | 456 | 1.02 | 306 | 144 |
| 2.5T 685*1220 PU | 486 | 1.02 | 306 | 144 |
| 3T 685*1220 NL | 486 | 1.02 | 306 | 144 |
| 3T 685*1220 PU | 516 | 1.02 | 288 | 144 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
