Anti-slip UHMWPE Crane Outrigger Pad PE Plastic Stabilizer Pad UHMW Plastic Pad

Anti-slip uhmwpe crane outrigger pads pe plastic stabilizer pad uhmw plastic padIntroduction of HDPE outrigger padOutrigger pads(also called Jack Pads) are used to disperse weight loads from cranes, concrete pumps, utility trucks, fire trucks, tree trimmers, and any type of aerial equipment; reducing the chance of jacks punchin

Featured Products

Anti-slip uhmwpe crane outrigger pads pe plastic stabilizer pad uhmw plastic pad

Introduction of HDPE outrigger pad
Outrigger pads(also called Jack Pads) are used to disperse weight loads from cranes, concrete pumps, utility trucks, fire trucks, tree trimmers, and any type of aerial equipment; reducing the chance of jacks punching through soil, asphalt or even concrete, while also preventing damage to the jack foot.
Outrigger pads provide both absorption of vibration and insulation from the ground. Minor imperfections in the ground are not an issue as outrigger pads conform to the imperfections in the ground, giving you a stable vibration-reducing platform. Interstate plastics carries outrigger pads with weight capacities that are fit for almost every utility vehicles and equipment. Outrigger pads from Henan Yiqi Plastic will exceed your needs. Stable support is achieved by spreading the load from the stabilizer or outrigger foot over the large and tough surface of an outrigger pad. The overall pressure on the ground is reduced by applying the load over a wider area, and effectivaly supporting the machinery or vehicle. With vertical load bearing capacities from 5 to 350 tonnes, outrigger pads are lightweight, making them safe and easy to handle.
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Features of
HDPE outrigger pad
Safety texturing
Waterproof
Will not rust
Easy to mount and replace
Reduced downtime
Portable high performance load distribution
Ergonomic safety for RV operators
Smooth rounded eage and corner design
Virtually unbreakable
Easy to clean
Non-stick surface

Designs of
HDPE outrigger pad we can do:
Flat surface

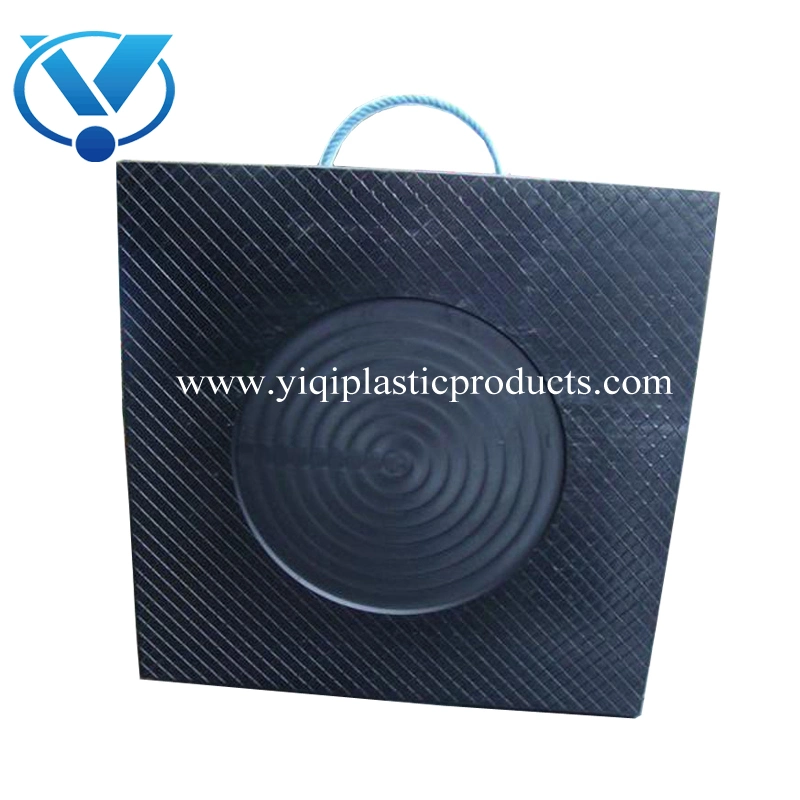

Circle in middle
Rhombus pattern

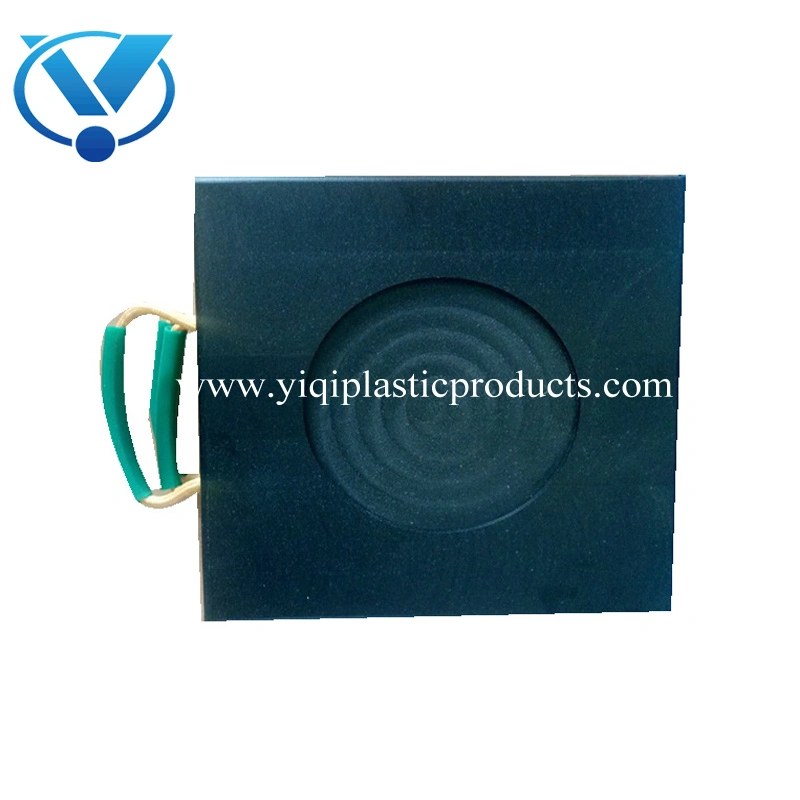

With Nylon rope and rubber sleeve
With hole holder on top
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Square shape and round shape of
HDPE outrigger pad

Specification of measurements and loading capacities:

HDPE outrigger pad in square:
Size
(mm)
Load Capacity
(tonnes)
Weight
(kgs)
Load Spread Area
(m2)
300*300*3052.70.09
300*300*4093.60.09
400*400*25840.16
400*400*3094.80.16
400*400*40106.40.16
400*400*501280.16
400*400*60159.60.16
500*500*25106.30.25
500*500*30127.50.25
500*500*4015100.25
500*500*501812.50.25
500*500*6020150.25
600*600*301310.80.36
600*600*402014.40.36
600*600*5023180.36
600*600*602521.60.36
700*700*502524.50.49
700*700*602829.40.49
800*800*402525.60.64
800*800*5028320.64
800*800*603038.40.64
800*800*803551.20.64
1000*1000*4030401.00
1000*1000*5040501.00
1000*1000*6050601.00
1000*1000*8070801.00
1000*1000*100801001.00
1200*1200*6011086.41.44
1200*1200*80120115.21.44
1200*1200*1001601441.44
1500*1500*1002002252.25
2000*1000*1002202002.00
3000*1000*1003003003.00

HDPE outrigger pad in round:
Size
(mm)
Load Capacity
(tonnes)
Weight
(kgs)
Load Spread Area
(m2)
Diam.650*602519.90.33
Diam.800*4020200.5
Diam.800*502525.10.5
Diam.800*603030.20.5
Diam.900*604038.20.64
Diam.1000*504039.30.78
Diam.1000*604547.10.78
Diam.1000*805062.80.78
Diam.1000*1006078.50.78
Diam.1200*807090.51.13
Diam.1200*10080113.11.13
Diam.1500*100160176.71.76
Specification of HDPE outrigger pad could be custom as customer's requirements.

Data sheet of HDPE outrigger pad
Project NameUnitTest MethodTest Result
Densityg/cm3ASTM D-15050.94-0.98
Compressive StrengthMPaASTM D-638≥42
Water Absorption%ASTM D-570<0.01
Impact StrengthKJ/m2ASTM D-256≥140
Heat Distortion TemperatureºCASTM D-64885
Shore HardnessShoreDASTM D-2240>40
Friction Coefficient ASTM D-18940.11-0.17

Company Profile of Henan Yiqi Plastic

Quality-oriented, Customer supreme & Service Paramount.


Henan Yiqi Plastic is engaged in manufacturing and selling plastic items over 15 years even nearly 20 years. Our main products are HDPE sheet, PE sheet, PP sheet, UHMWPE sheet, plastic cutting board, fender facing pad, synthetic ice rink, temporary road mat and other plastic parts. Manufacturing technique includes extrusion, injection and mould pressing, also undertaking welding, CNC carving such post processing and so on.

Henan Yiqi Plastic Products Co., Ltd's new office is located in Zhengzhou, the capital of Henan province. Technology R&D team keeps pursuing innovation and enriching product performance, greatly enlarging the application of our products.

Henan Yiqi Plastic's products have been exported to Europ, Australia, North America, Southeast Asia, South America and other regions. Henan Yiqi Plastic look forward to going farther with you together.


Certificate of HDPE outrigger pad
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
Package of HDPE outrigger pad
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad
FAQ of HDPE outrigger pad

Q:Could we get a sample before order?
A: Of course, no problem.
If you need to check the material, we can arrange small block for free;
If you prefer to test it in real area, we can also custom it here.

Q:What about your payment term in general?
A: T/T, 50% deposit and the balance before shipping; other terms can be negotiable.

Q:Could you do as our design or drawing?
A: Yes, we also support OED/ODM service, our team will provide technical support.


What we can do also:
Anti-Slip UHMWPE Crane Outrigger Pads PE Plastic Stabilizer Pad UHMW Plastic Pad


Any more question, just free to let me know.
Emma and our team are always here with you.

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
