ntroduction
1,Hand pallet truck also known as manual pallet truck, hand pallet truck when use the carrying
goods fork into the tray hole,by the ability to drive hydraulic system to realize the pallet load
lifting and falling, and pulled by human complete handling operations.
2,It is the simplest and most effective tray in the transport, the most common type of loading
and unloading, handling tools,widely used in logistics,warehouses, factories, hospitals, schools,
shopping malls, airports, stadiums, station, airport and so on
Basis size of the pallet truck:

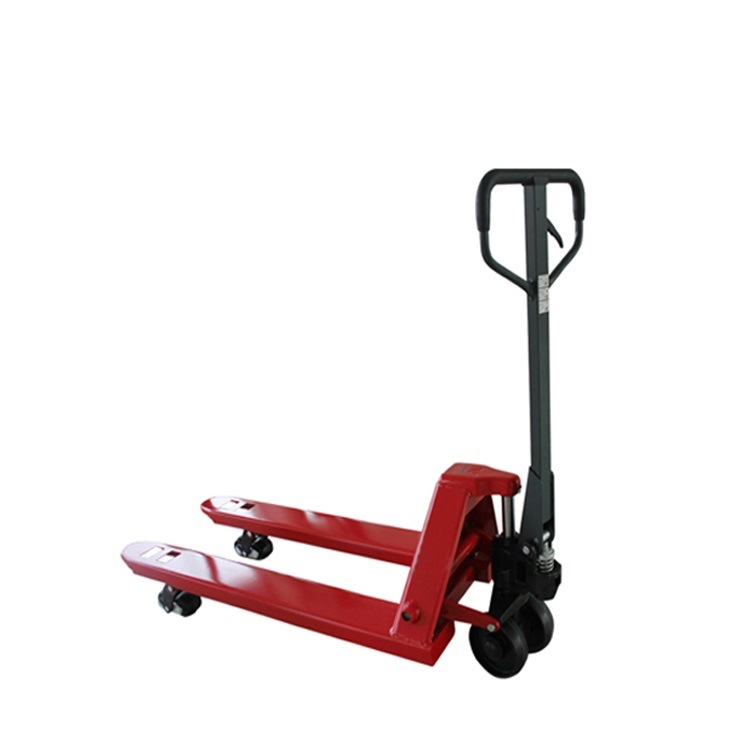

Photos of the pallet truck details:
China pallet truck product parameter as belows:
Rated Loading Capacity: 2000kg, 2500kg, 3000kg
Max. Lifting Height: 200mm
Min. Lifting Height: 75mm
Fork Length: 800/1150/1220mm or customized length is avaliable
Fork Width: 550/685MM or customized width is avaliable
Wheels: PU/NYLON wheel
Rod: solid rod
Material: round solid steel
Handle: iron handle
Technical parameter:| Product name | Hydraulic manual pallet truck | |||||||||
| Model | HX-2.0 | HX-2.0 | HX-2.5 | HX-2.5 | HX-3.0 | HX-3.0 | HX5.0 | |||
| Load capacity(kg) | 2000 | 2500 | 3000 | 5000 | ||||||
| Min fork height(mm) | 80 | 80 | 80 | 80 | ||||||
| Max fork height(mm) | 190 | 190 | 190 | 190 | ||||||
| Max lifring height (mm) | ≥110 | ≥110 | ≥110 | ≥110 | ||||||
| Fork width(mm) | 550 | 685 | 550 | 685 | 550 | 685 | 685 | |||
| Fork length (mm) | 1100/1150/1200 | 1200 | ||||||||
| Sheet thickness | After PVC coating thickness 4mm | |||||||||
| Loading wheel(mm) | Φ80*70 | Φ80*70 | Φ80*70 | Φ80*70 | ||||||
| Steering wheel(mm) | Φ180*50 | Φ180*50 | Φ180*50 | Φ180*50 | ||||||
| Material of wheel | Nylon | |||||||||
| Net weight(kg) | 62 | 64 | 69 | 74 | 69 | 74 | 130 | |||
