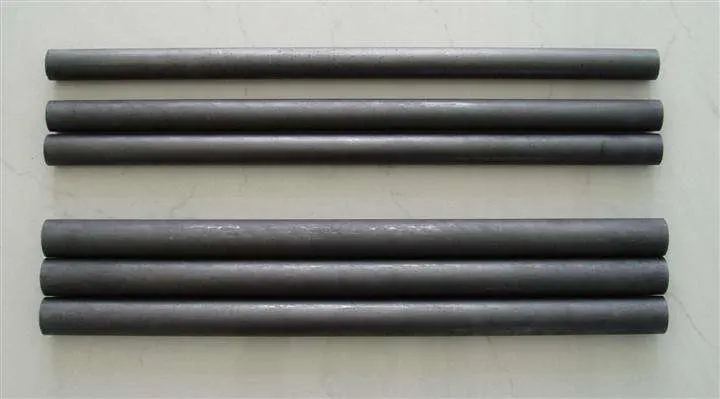

1.6 1.65 1.7 1.75g Customized extruded graphite rod:
Technical Specifications:
Sizes:
Our company is the professional manufacturer and exporter for carbon and graphite products. our company was established at 2000.Our factory is located in Beijing city.and 50 kilometers from Beijing airport.
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
Technical Specifications:
| Bulk Density g/cm3 | ≥1.6-1.65 |
| Ash % | ≤1 |
| Specific Resistance μΩm | ≤ 15 |
| Flexural Strength Mpa | ≥15 |
| Compressive Strength Mpa | ≥ 22.2 |
| Sulfur Content % | ≤ 0.09 |
| Coefficient of Thermal Expansion | 2 ≤ .6 |
| Diameter | length (mm) | around weight kgs |
| Φ20 | 1700 | 1 |
| Φ25 | 1700 | 1.5 |
| 1900 | 1.68 | |
| 2200 | 1.95 | |
| 2250 | 1.98 | |
| Φ30 | 1700 | 2 |
| 1900 | 2.24 | |
| 2200 | 2.59 | |
| Φ35w | 1700 | 2.85 |
| 1900 | 3.2 | |
| 2100 | 3.52 | |
| 2200 | 3.68 | |
| Φ40 | 1700 | 3.5 |
| 1900 | 4 | |
| 2100 | 4.32 | |
| 2200 | 4.63 | |
| 2400 | 5.05 | |
| 2270 | 4.7 | |
| Φ45 | 2250 | 5.21 |
| Φ50 | 1700 | 5.5 |
| 1920 | 6.3 | |
| 2100 | 6.8 | |
| 2200 | 7.12 | |
| 2500 | 8 | |
| Φ60 | 1400 | 6.5 |
| 1700 | 7.9 | |
| 1300 | 6.04 | |
| Φ63 | 2000 | 8.7 |
| Φ70 | 2100 | 5.68 |
| 2250 | 5.5 | |
| 2500 | 6.3 | |
| Φ72 | 2250 | 15.7 |
| 2470 | 17 | |
| Φ75 | 2250 | 16.4 |
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
We believe that duo to our high quality graphite material and formed graphite parts at very competitive prices with professional service,broad product knowledge and technical expertise can help you save much resource and improve your efficiency,and satisfy more of your customers' needs.
